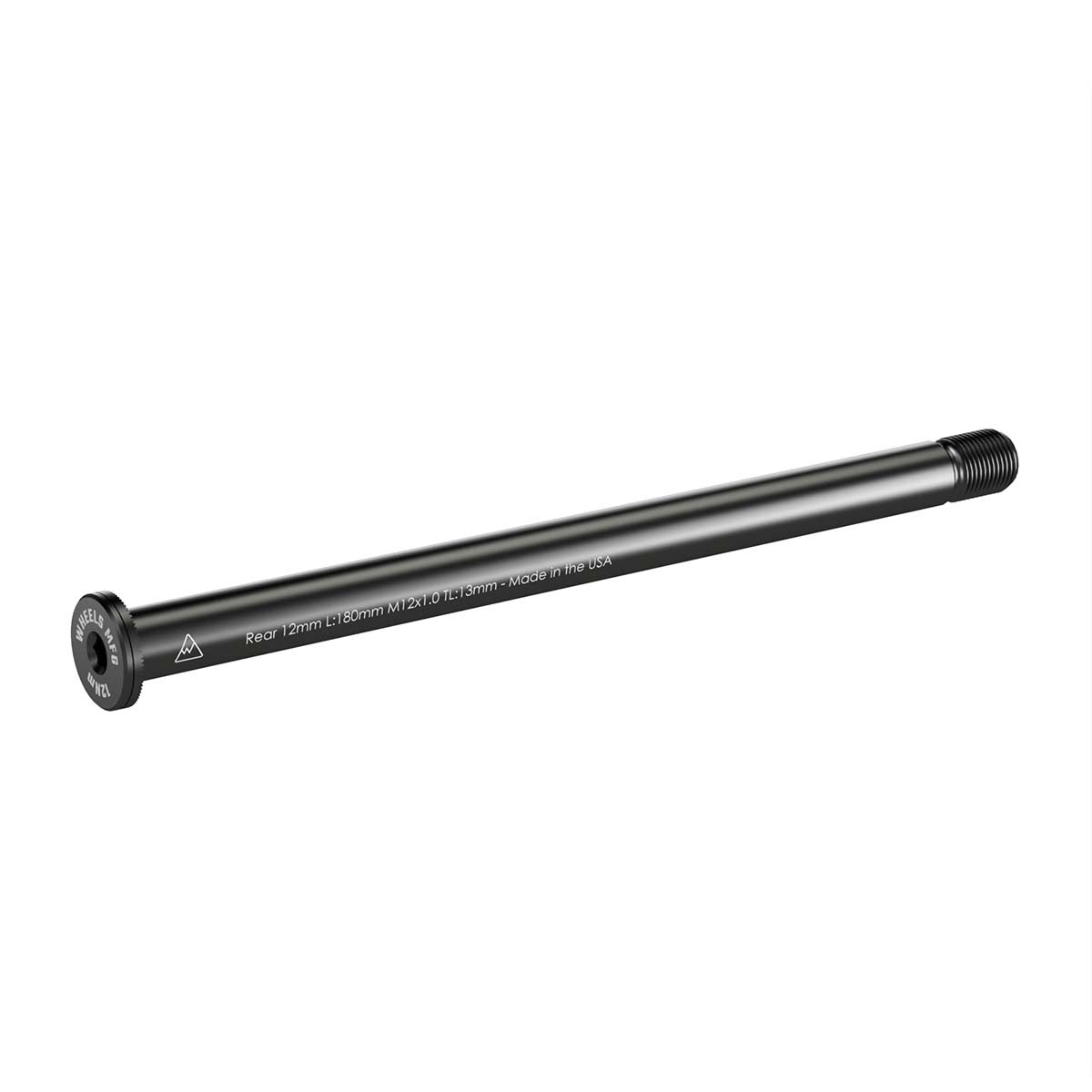

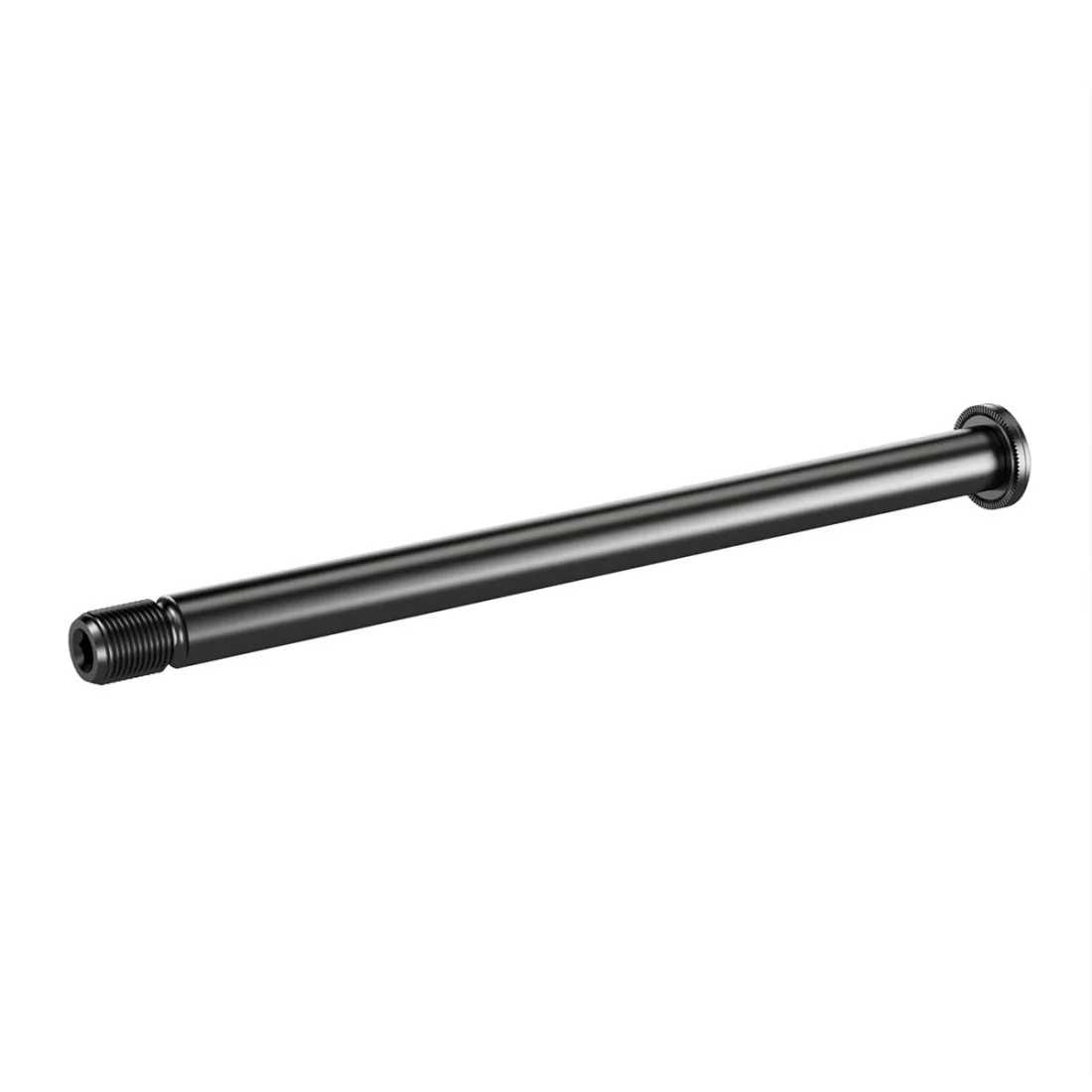

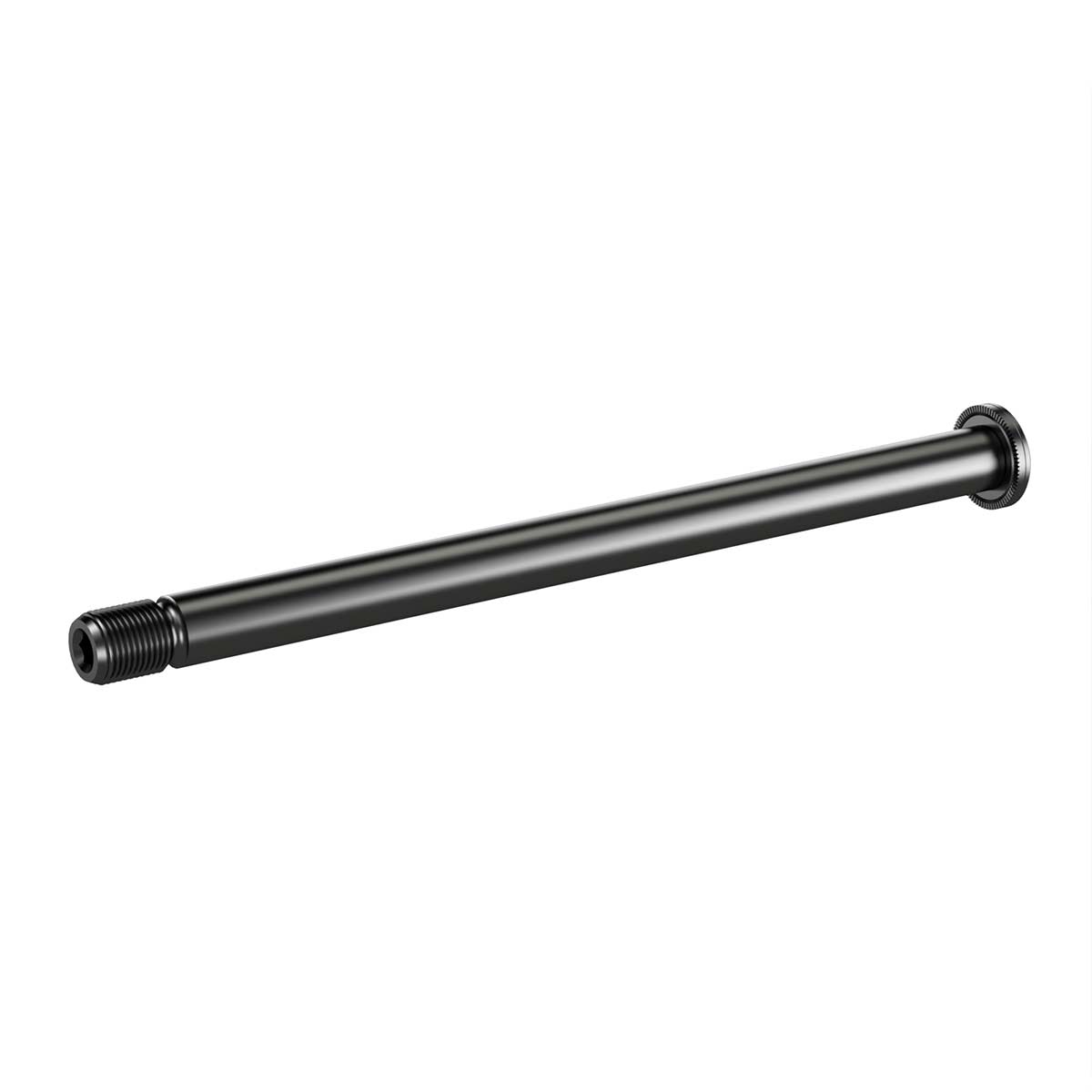

Rear Thru Axle 12 mm x 180 Length x 1.0 mm Thread Pitch - Flat Washer

Replacement for OEM thru-axles.

Whether you are looking to upgrade or replace an existing factory axle, the Wheels Mfg thru-axles will fit a wide variety of bike and fork models.

Spec:

• Rear Thru Axle
• Axle length is compatible +/- 2 mm
• Diameter: 12 mm
• Flat Washer
• Axle Length: 180 mm
• Thread Pitch: 1.0
• Thread Length: 13 mm

Please find thru-axle identification guide to determine which thru-axle your bike requires.

Thru-axles designed, manufactured and tested in Colorado, USA by Wheels mfg to meet highest quality standards

• Personalize and protect your bike with Thru-Axle Caps!
• Material: 7075 aluminum.
• Hard anodized finish for extra durability.
• Captive rotating axle washer reduces friction on bikes frames and forks during installation, preventing potential damage.
• Axle length is compatible +/- 2 mm

• Diameter: 12mm
• Torque Spec: 12 Nm max
• 5mm hex on both ends of the axle for easy installation and removal.
• Wheels mfg catalog number: RTA-12-180-1.0
