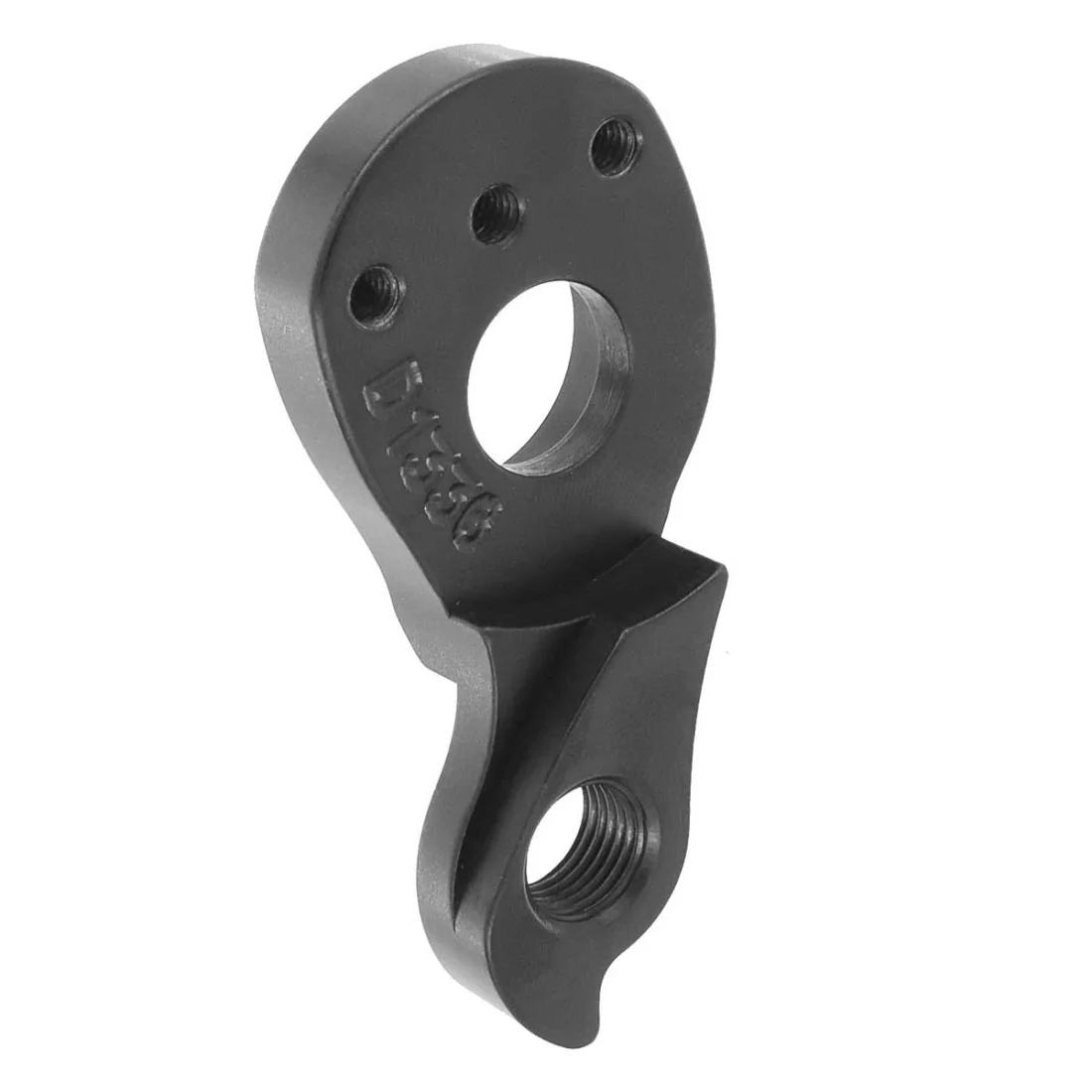

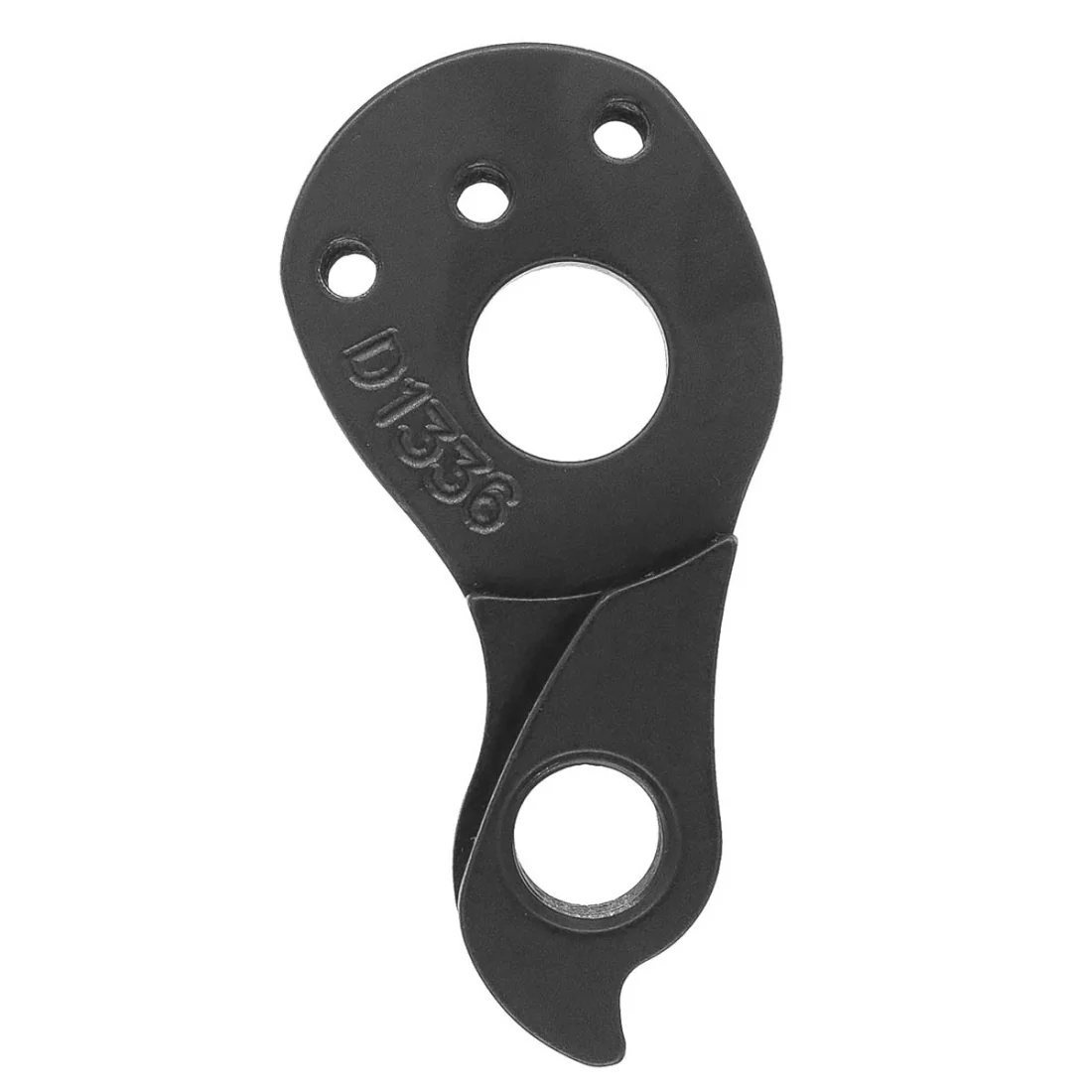

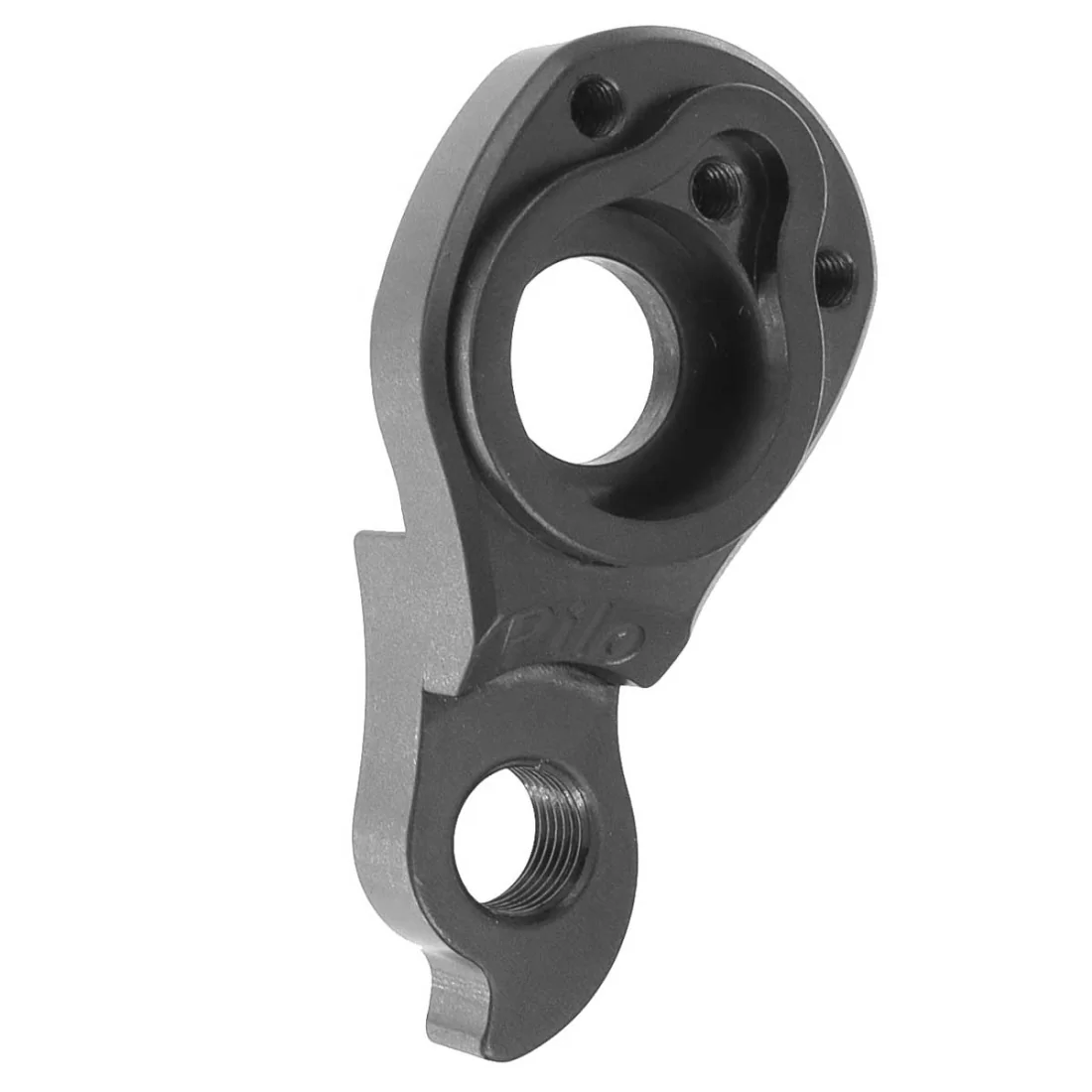

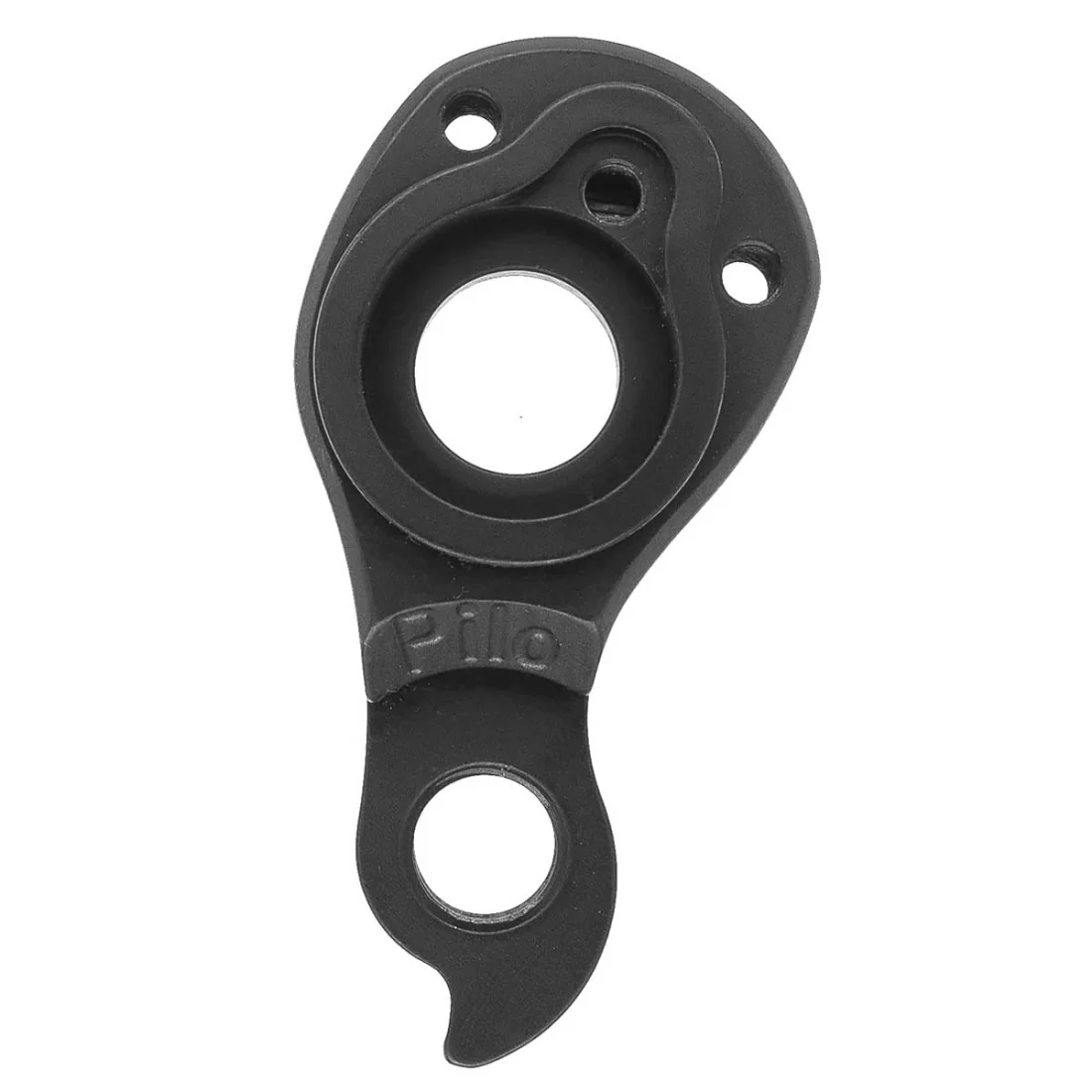

D1336 Derailleur Hanger for Alchemy, Chiru, Curve, Decathlon, Enigma, J.Laverack, Merlin, Moots, Revel, Veloheld

Pilo D1336 derailleur hanger for Alchemy, Chiru, Curve, Decathlon, Enigma, J.Laverack, Merlin, Moots, Revel, Veloheld bike frames:

• Curve (12x142 axle titanium frames) Belgie V3, Belgie Ultra, Belgie AIR, GXR
• Curve (12x148 axle titanium frames) GMX+ and DownRock


• Decathlon Triban GRVL 900 Titan


• Chiru Vagus
• Chiru Kegeti


• Enigma Escape (all versions)
• Enigma Etape Disc 2018 onwards
• Enigma Excel Disc
• Enigma Echelon Disc
• Enigma Esker Disc
• Enigma Evoke Disc


• J.Laverack all disc brake bike frames 2019+


• Revel Legacy Why R+ (V3 and earlier)


• Veloheld veloheld.icon frameset
• Veloheld veloheld.iconX titanium

The Locknut housing has been changed from the oem to fit Pilo special S1,S2 and S3 locknuts, as well as all other standard locknut

There is a selection of lock nuts for rear axle to choose from:

• Pilo S1 12x1 mm
• Pilo S2 12x1.5 mm
• Pilo S3 12X1.75 mm

Rear derailleur hanger D1336 manufactured by PILO. ISO 9001 2015 certified.

• CNC machined 6061 T6511 ASTM B221 aluminium.
• Color: black, anodized finish.
• Bolts included. Locknut for axle thread not included.
• Pilo catalog number: D1336
• AKA gear mech hanger for derailleur : Decathlon 8732206 / J.Laverack hanger #5 / Revel 310-han17-0001
