There are no more items in your cartPilo D1293 derailleur hanger for Scott #277544 bike frames:
- Scott Foil RC 2023+
- Scott Addict RC 2020+
- Scott Addict RC Ultimate 2020-2022
- Scott Addict RC 10 2021-2022
- Scott Addict RC 20 2020-2021
- Scott Addict RC 30 2022
- Scott Addict 10 2022
- Scott Addict 40 2022
- Scott Addict Gravel Tuned 2022
- Scott Addict Gravel 10 2022
- Scott Addict Gravel 20 2022
- Scott Contessa Addict 15 2022
- Scott Contessa Addict 35 2022
- Scott Addict eRIDE 2022+
- Scott Addict eRIDE 20 2022
- Scott Addict eRIDE 15 2022
Locknut axle thread M12x1.5
Pilo D1293 derailleur hanger is for standard mount frames, for direct Shimano mount - please look at Pilo D1057 derailleur hanger.

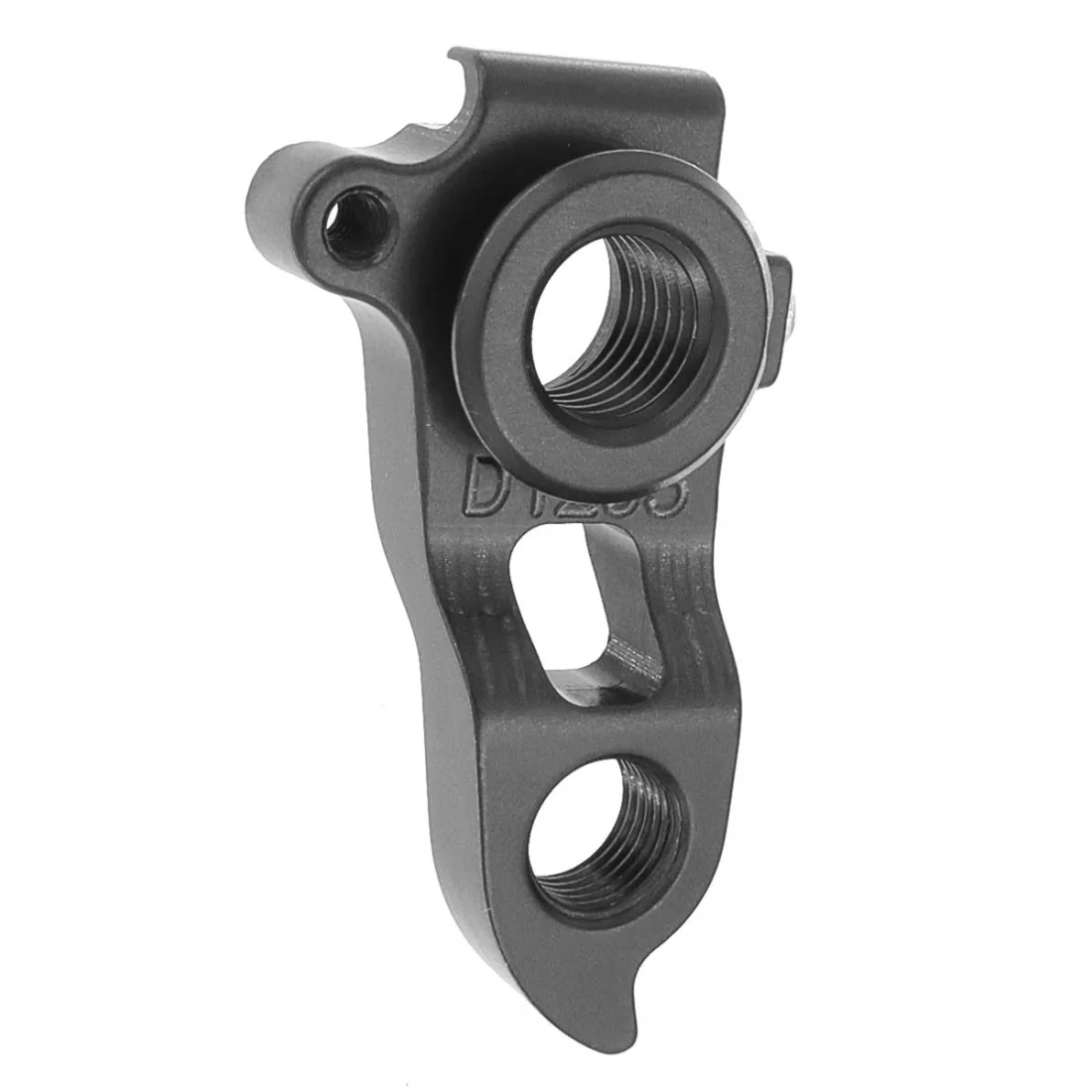

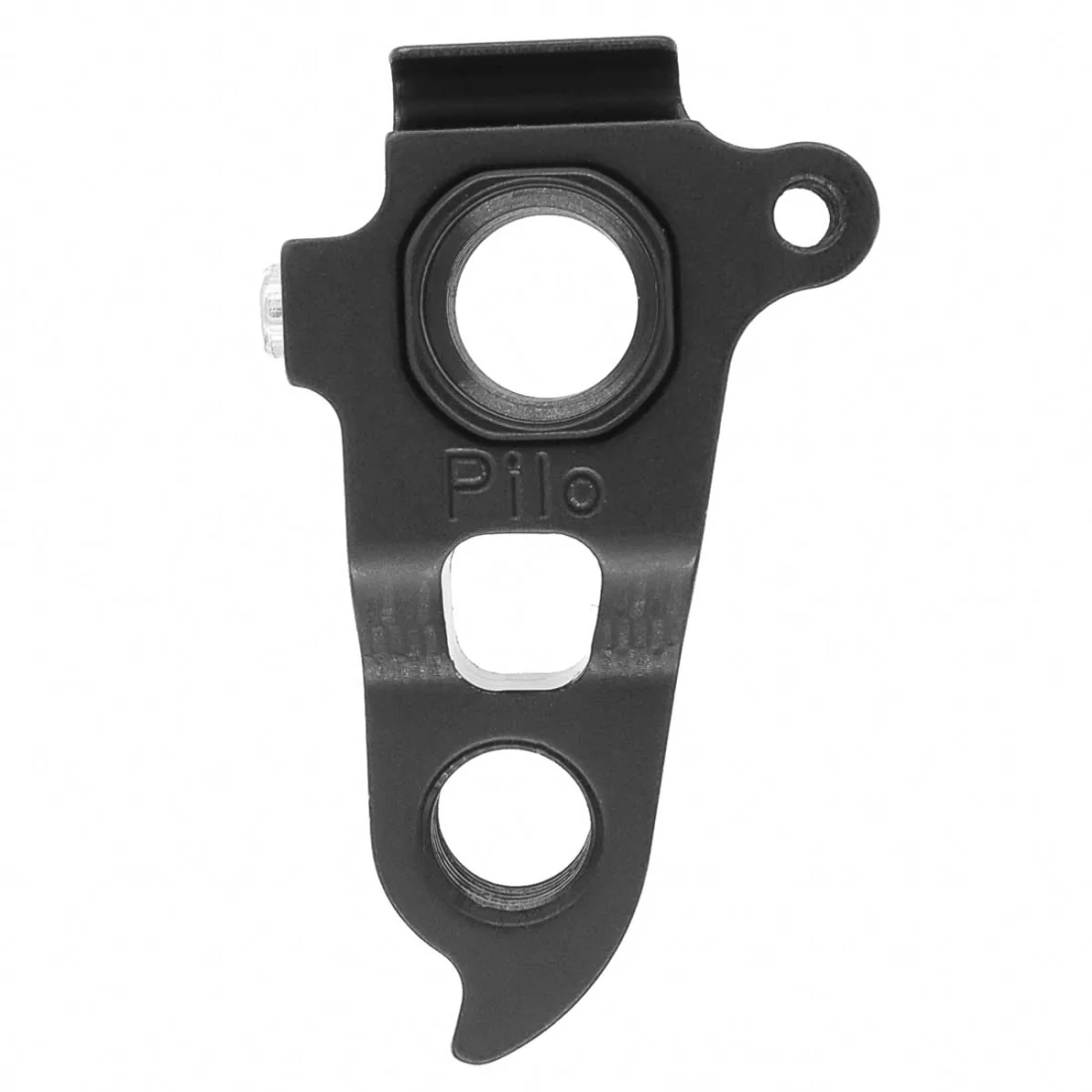

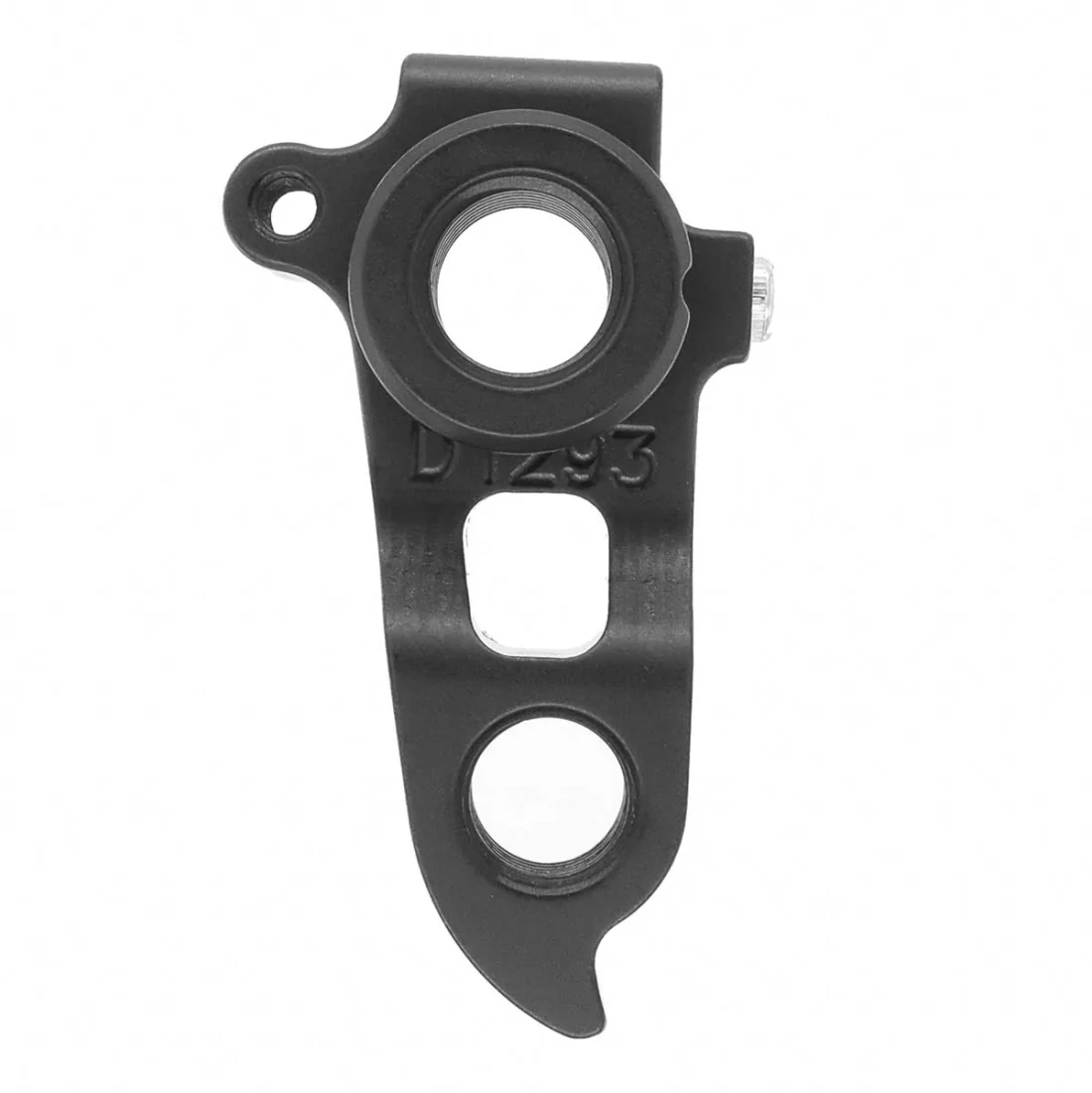

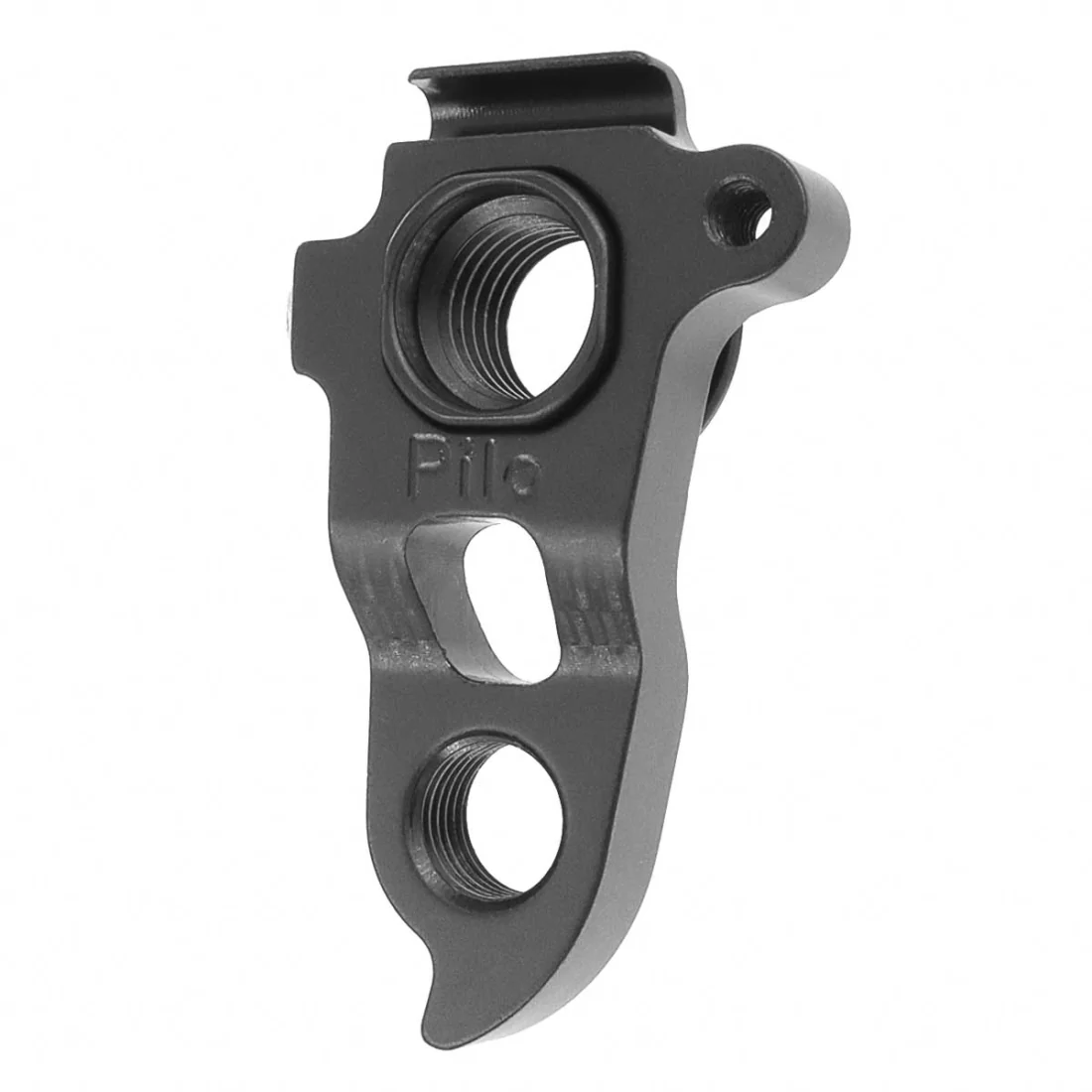

Rear derailleur hanger D1293 manufactured by PILO. ISO 9001 2015 certified.
- CNC machined 6061 T6511 ASTM B221 aluminium.
- Color: black, anodized finish.
- Pilo S65 locknut included. (M12x1.5)
- Mounting bolt not included.
- Pilo catalog number: D1293
- AKA gear mech hanger for derailleur : Scott 277544
To be sure if this the right part, please send us photos of:
1. Your derailleur hanger from both sides;
2. And if possible bike‘s frame part photos, where dropout was attached.
Also browse pages: Home, FAQ's, Derailleur hangers, Derailleur hangers by bike brand, Small parts, Adapters/Extenders, About us, Chainrings, Disc Brake Pads, Bike Maintenance, Bearings, Thru Axles
- Bicycle brand
- scott
- Number of fasteners
- 1
2 - Mounting on frame
- Inner
Other - Shape of Step
- Curved
No step - Axle diameter
- 12 mm
- Material
- CNC aluminum
- Derailleur mount type
- Standard mount
7290117597101
D1293
