Pilo D1277 Derailleur hanger for Cube direct mount bike frames:
- Cube Litening C:68X SL 2020-2021
- Cube Axial WS GTC SL Disc 2018
- Cube Axial WS GTC SL 2019
- Cube Axial WS GTC Pro 2021-2022
- Cube Axial WS GTC SL 2021-2022
- Cube Axial WS C:62 SL Disc team ws 2018-2021
- Cube Axial WS Race 2020
- Cube Axial WS C:62 SLX team ws 2023-2024
- Cube Axial WS Pro 2022
- Cube Agree C:62 2023-2024
- Cube Agree C:62 Pro 2023-2024
- Cube Agree C:62 Race 2023-2024
- Cube Agree C:62 SLX 2023-2024
- Cube Agree Hybrid C:62 SL Disc 2018-2021
- Cube Agree Hybrid C:62 SLT Disc 2018-2021
- Cube Agree Hybrid C:62 Race 2020-2021
- Cube Attain GTC Race Disc 2018-2019
- Cube Attain GTC SLT Disc 2018
- Cube Attain GTC SL Disc 2019
- Cube Attain SL Disc 2019-2022
- Cube Agree C:62 Race Disc 2018-2020
- Cube Agree C:62 SLT Disc 2018-2019
- Cube Agree C:62 SL 2020
- Cube Litening C:62 Race Disc teamline 2018-2019
- Cube Litening C:68 SLT Disc 2018
- Cube Cross Race C:62 Pro 2018-2021
- Cube Cross Race C:62 SLT 2018-2019
- Cube Cross Race C:62 SL teamline 2020-2021
- Cube Cross Race C:62 Team Edition 2021
- Cube Cross Race 2019-2020
- Cube Cross Race Pro 2019-2021
- Cube Cross Race SL 2019-2021
- Cube Nuroad WS 2019
- Cube Nuroad WS C:62 Pro 2022
- Cube Nuroad Race 2019-2021
- Cube Nuroad Race FE 2019-2020
- Cube Nuroad Hybrid C:62 SL 2020-2021
- Cube Nuroad SL 2020
- Cube Nuroad EX 2021-2022
- Cube Nuroad C:62 Pro 2021
- Cube Nuroad C:62 Race 2021
- Cube Nuroad Rookie 2023-2024
- Cube Acid 240 Hybrid Farbe 1 2019
- Cube Aerium C:68 TT SL LOW 2020-2021
- Cube Aerium C:68 TT SL HIGH 2020-2021
- Cube Aerium C:68 TT Rahmenset LOW 2020
- Cube Aerium C:68 TT Rahmenset HIGH 2020
- Cube Aerium C:68 TT SLX LOW 2023-2024
- Cube Aerium C:68 TT SLX HIGH 2023-2024
- Cube Aerium C:68X SLX 2023-2024
- Cube Aerium C:68X SLT 2023-2024
- Cube Aerium C:68X Frameset 2023-2024
- Cube Sting WS 140 HPC Race 2020
- Cube Sting WS 140 HPC SL team ws 2020
- Cube Litening C:68X Pro 2020-2021
- Cube Litening AERO C:68X Pro 2023-2024
- Cube Litening AERO C:68X SLX 2023-2024
- Cube Litening AIR C:68X Rahmenset Team Wanty Replika 2023-2024

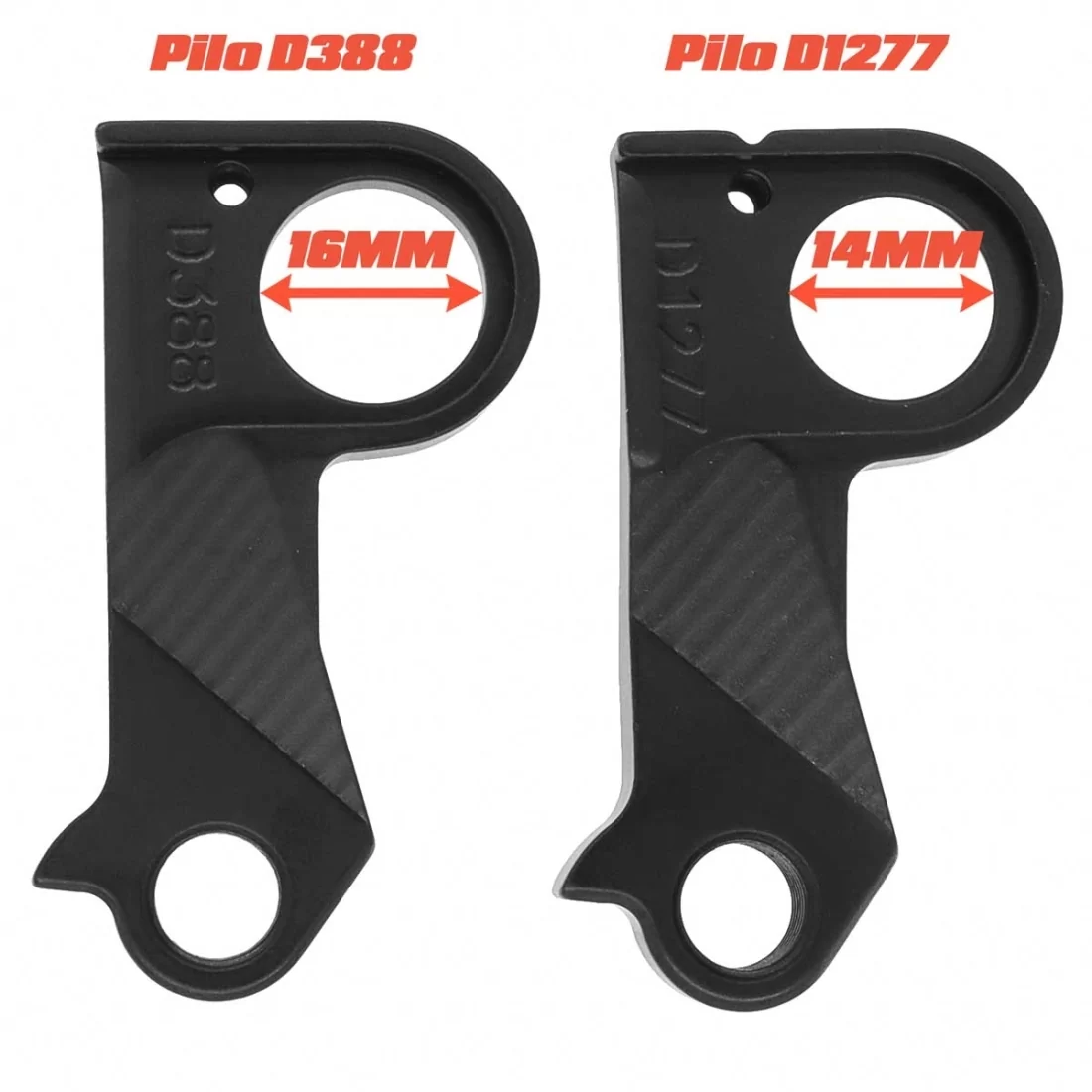

Please note that the hole for the axle locknut is conical with a diameter 14mm, whereas a similar Pilo D388 hanger has a cylindrical hole with a diameter 16mm.
Pilo D1277 is for direct mount frames only, for standard thru-axle mount - please look a Pilo D830 derailleur hanger.
Locknuts for M12x1 axle thread are Pilo S61 and Pilo S62, but please compare the drawings provided to choose a suitable one.
Rear derailleur hanger D1277 manufactured by PILO. ISO 9001 2015 certified.
- CNC machined 6061 T6511 ASTM B221 aluminium.
- Color: black, anodized finish.
- Bolt included. Locknut for axle not included.
- Pilo catalog number: D1277
- AKA gear mech hanger for derailleur : CUBE 10063 / 8653 / 8655
For any questions please contact us or send an email to:
To be sure if this the right part, please send us photos of:1. Your derailleur hanger from both sides;
2. And if possible bike‘s frame part photos, where dropout was attached.
