    Bottom Bracket Gauge Tool

    BBGAUGE
    In stock
    €26.00
    Tax included



    The Bottom Bracket Gauge Tool was designed to provide all the necessary measurements to identify the proper bottom bracket for a specific bike configuration.

    The gauge can measure:

    • Bottom bracket width:
      • 61mm
      • 68mm
      • 73mm
      • 79mm
      • 86.5mm
      • 90mm
      • 92mm
      • 95mm
      • 100mm
      • 120mm
      • 132mm
    • Bottom bracket shell inner diameter:
      • 37mm
      • 41mm
      • 42mm
      • 46mm
    • Crank spindle length:
      • up to 180mm
    • Crank spindle diameter:
      • 22mm
      • 24mm
      • 29mm
      • 30mm
    • Bearing inner diameter:
      • 22mm
      • 24mm
      • 29mm
      • 30mm

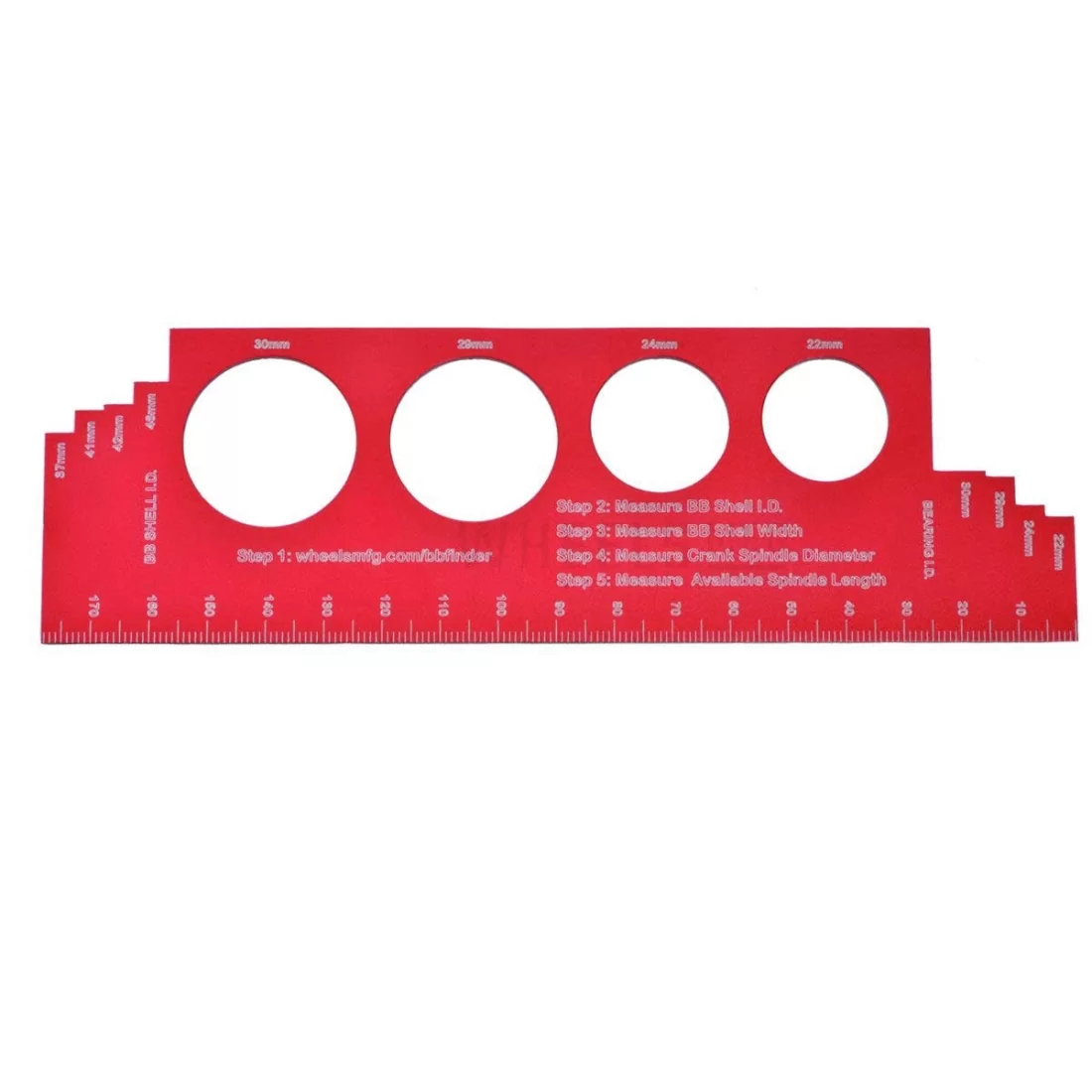

    A metric scale runs along the long edges for measuring bottom bracket shell width and crank spindle lengths. Durable red anodized aluminum with laser etching. Overall size 7" x 3" x 0.125".



    For any questions please e-mail us:

    To be sure if this the right part, please send us photos of:
    1. Your derailleur hanger from both sides;
    2. And if possible bike‘s frame part photos, where dropout was attached.

    Material
    CNC aluminum
