Product Description

The Bottom Bracket Gauge Tool was designed to provide all the necessary measurements to identify the proper bottom bracket for a specific bike configuration.

The gauge can measure:

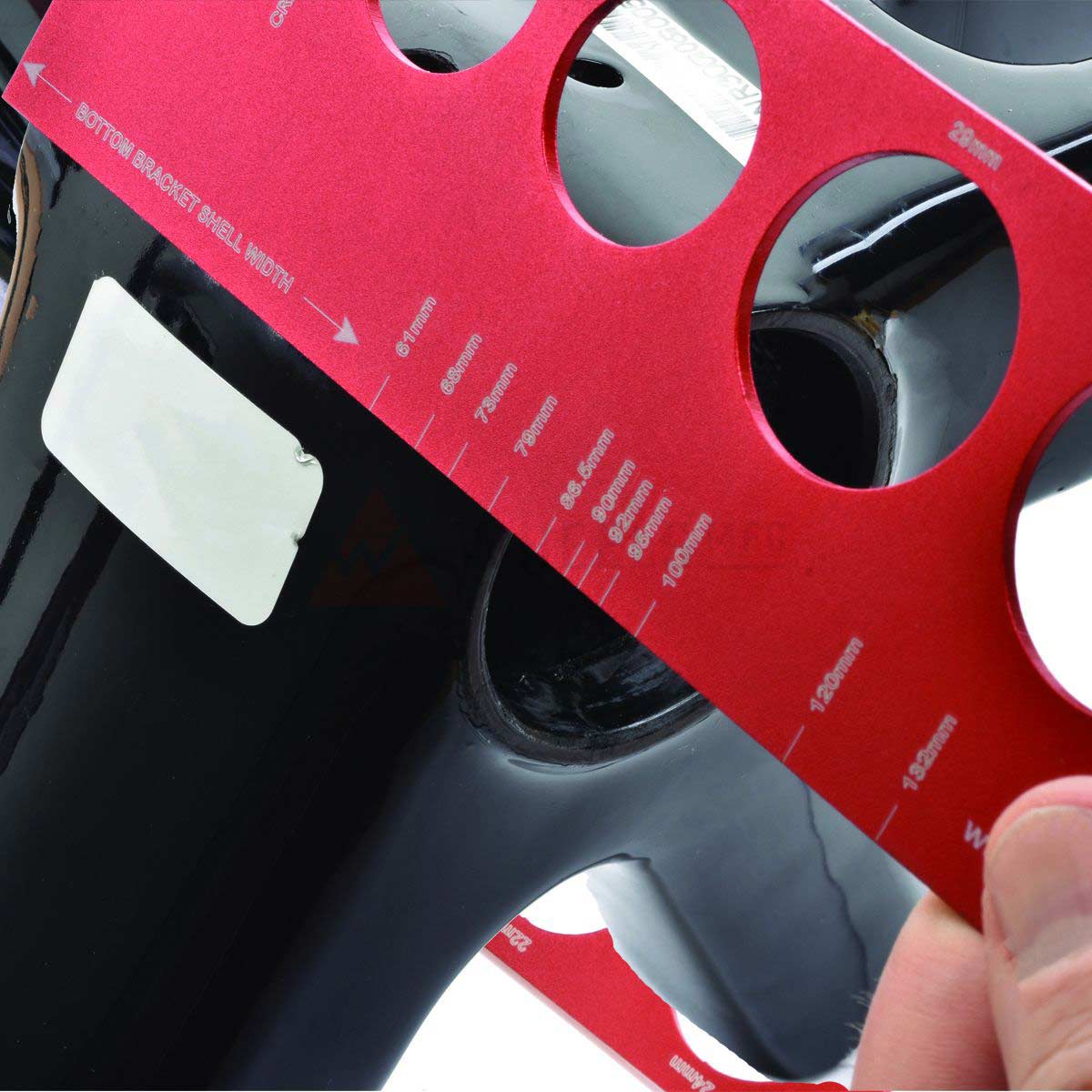

  • Bottom bracket width:
    • 61mm
    • 68mm
    • 73mm
    • 79mm
    • 86.5mm
    • 90mm
    • 92mm
    • 95mm
    • 100mm
    • 120mm
    • 132mm

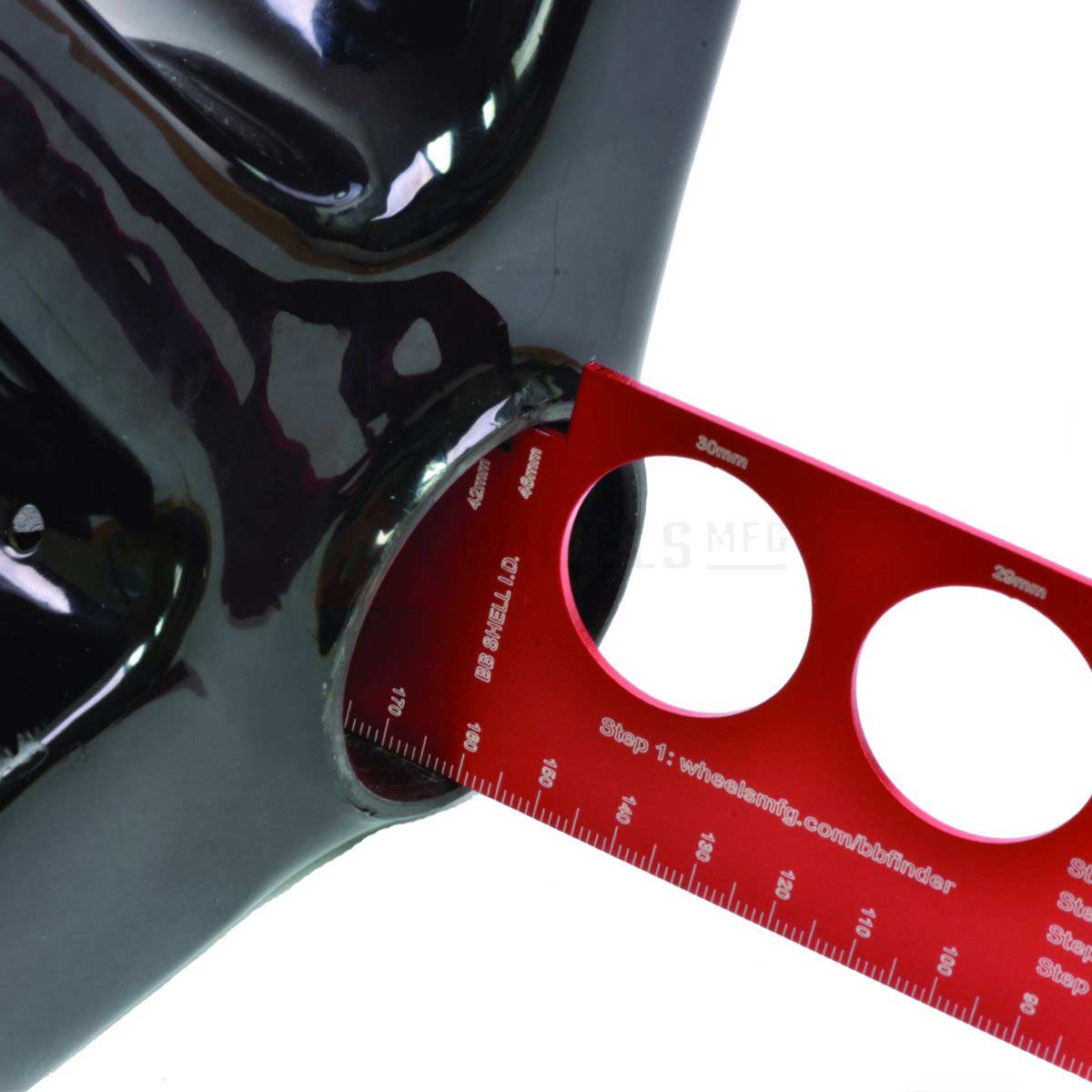

  • Bottom bracket shell inner diameter:
    • 37mm
    • 41mm
    • 42mm
    • 46mm

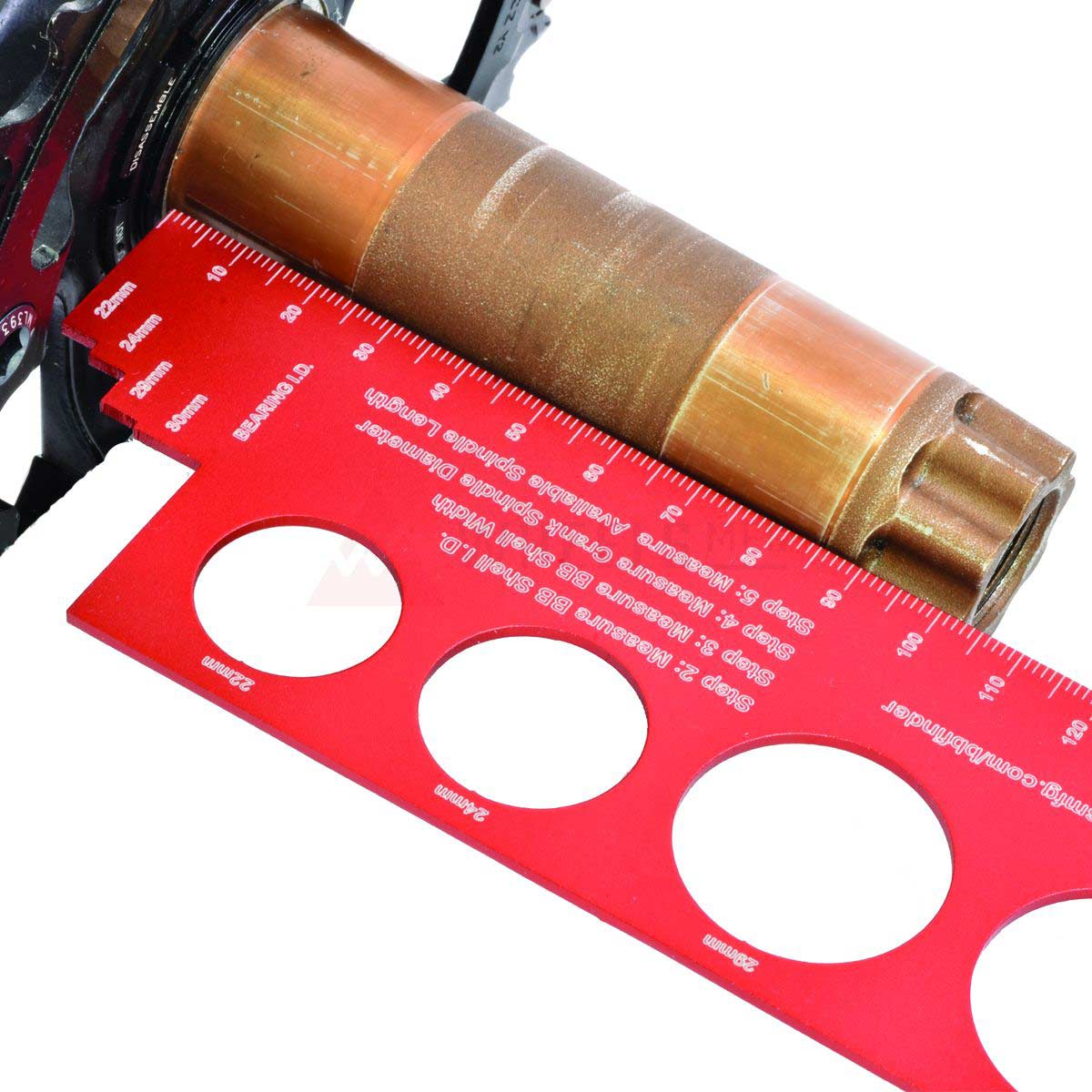

  • Crank spindle length:
    • up to 180mm

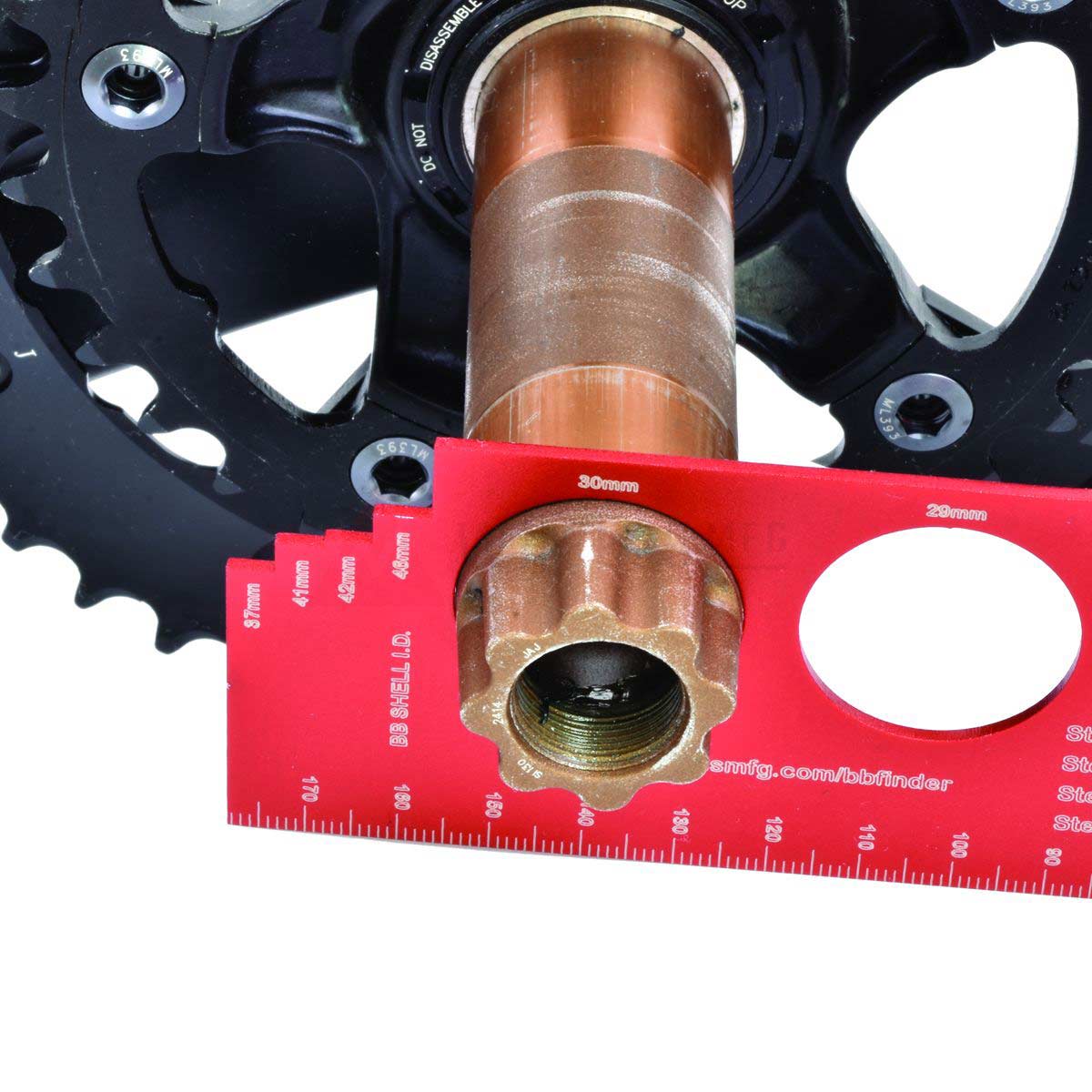

  • Crank spindle diameter:
    • 22mm
    • 24mm
    • 29mm
    • 30mm

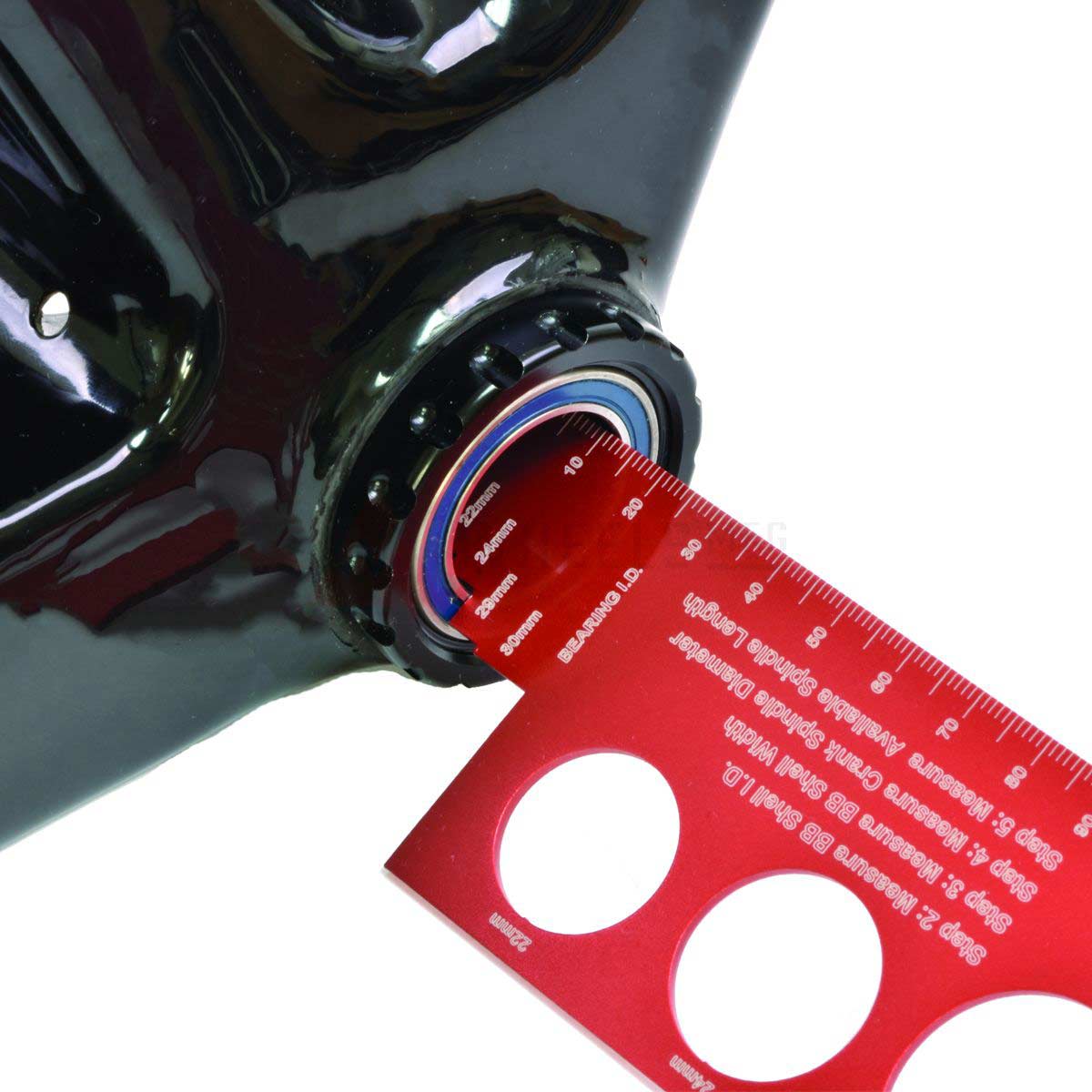

  • Bearing inner diameter:
    • 22mm
    • 24mm
    • 29mm
    • 30mm

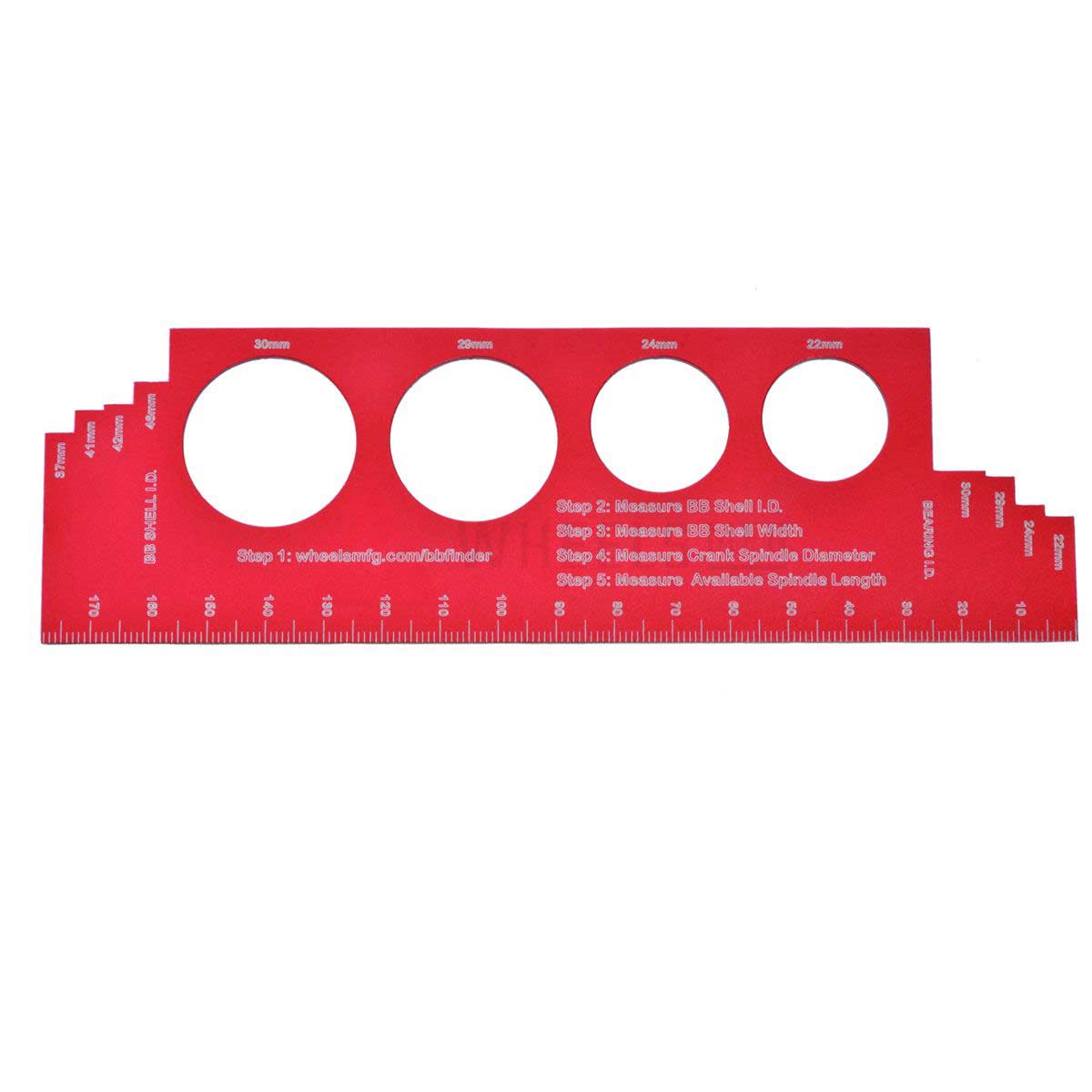

A metric scale runs along the long edges for measuring bottom bracket shell width and crank spindle lengths. Durable red anodized aluminum with laser etching. Overall size 7" x 3" x 0.125".
