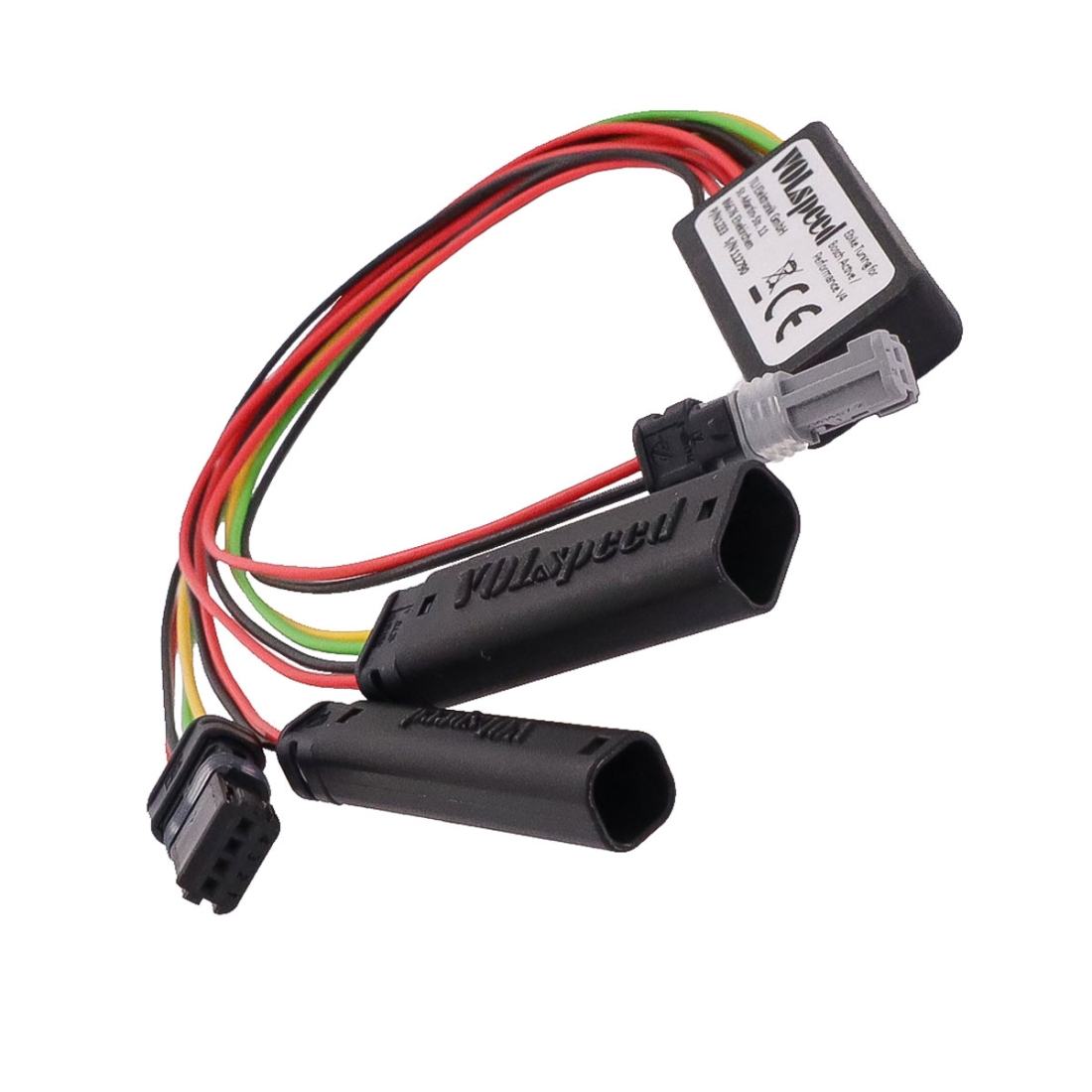

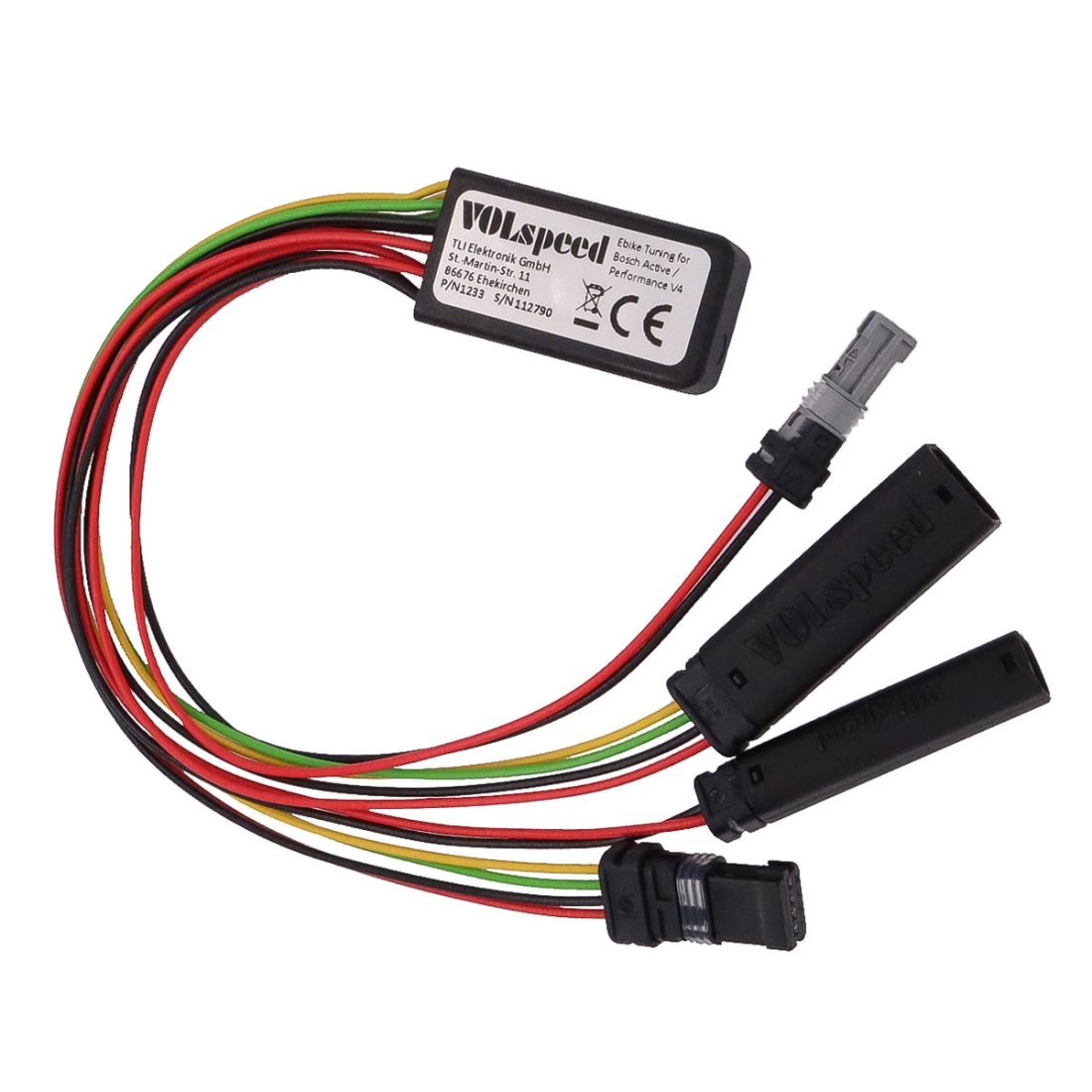

Updating…VOLspeed V4 e-bike tuning module for Bosch Active Line, Active Line Plus, Performance Line and Performance Line CX drive systems. Designed for compatible Bosch e-bike systems from model year 2014, the VOLspeed V4 allows the motor assistance speed limit to be individually adjusted between 25 and 45 km/h.
The module is installed directly at the Bosch drive unit and can be controlled using the existing buttons on the e-bike. No smartphone, computer or separate programming device is required for normal operation and adjustment.
Important: this VOLspeed V4 is intended for compatible Bosch eBike System 2 generation motors. It is not compatible with Bosch Smart System. Please check your Bosch motor, display and system generation carefully before ordering.
The VOLspeed V4 is compatible with supported Bosch e-bike drive systems from model year 2014, including:
Compatible Bosch display and control systems include:
VOLspeed also provides support and operating instructions for compatible systems using COBI.Bike or SmartphoneHub.
This VOLspeed V4 is not compatible with Bosch Smart System e-bikes.
If your e-bike uses components such as the following, you most likely have a Bosch Smart System and need a different VOLspeed tuning module:
Please identify the exact Bosch system generation before ordering.
Unlike simple tuning modules that only remove the original 25 km/h assistance limit, the VOLspeed V4 allows the rider to select an individual motor assistance limit between 25 and 45 km/h.
This means the assistance limit can, for example, be set to 30, 32, 35 or 40 km/h instead of always using the maximum available setting.
The selected setting is stored by the module. Tuning can be activated or deactivated using the existing Bosch handlebar controls.
The Dynamic Mode is designed to provide a smoother riding experience when approaching the configured motor assistance limit.
Instead of motor support ending abruptly at the selected speed, assistance can be reduced progressively. This provides a more natural transition around the speed limit, especially on Bosch Performance Line and Performance Line CX powered e-bikes.
The VOLspeed V4 also provides an alternative operating mode that allows the assistance characteristics of compatible Bosch support modes to be individually adjusted.
Depending on the Bosch motor and system configuration, this can include modes such as:
The original Bosch assistance configuration remains available, allowing the rider to switch between the standard Bosch settings and individually configured assistance behaviour.
Please note: some VOLspeed functions may be limited when used with COBI.Bike or SmartphoneHub systems.
The VOLspeed V4 tuning module is installed directly at the Bosch drive unit underneath the motor cover.
The module connects to the existing Bosch motor wiring, so the original cables do not normally need to be cut or permanently modified.
Depending on the bicycle and Bosch motor configuration, installation may require removal of the motor cover and crank arm. Suitable bicycle tools may therefore be required.
The VOLspeed electronics are encapsulated to protect the module against moisture and environmental exposure.
Before ordering the VOLspeed V4, please check the following:
Do not choose the tuning module only by the Bosch motor name. Bosch has produced motors with similar names across different system generations. For example, newer Performance Line CX motors may belong to the Bosch Smart System and require a different VOLspeed module.
Future Bosch firmware or drive-system software updates may affect the compatibility of tuning modules.
We recommend checking current VOLspeed compatibility information before performing Bosch software updates on an e-bike equipped with a tuning module.
Important: increasing or removing the factory motor assistance speed limit may change the legal classification of your e-bike.
Use of a tuned e-bike on public roads may not be permitted under applicable local laws. Depending on the country, use may be restricted to private property, closed courses, test areas or competition use.
The rider is responsible for checking and complying with local laws and regulations before installing and using the tuning module.
Higher riding speeds can also increase loads on the bicycle's brakes, drivetrain, wheels, tyres and frame. Make sure the bicycle is in suitable technical condition for the intended use.
If you are unsure whether this VOLspeed V4 tuning module is compatible with your Bosch e-bike, please contact us before ordering.
For compatibility checking, please send us:
You can also send photos and information by email to info@elanusparts.com.
Browse more E-Bike Parts and replacement components available from Elanus Parts.
VOLspeed is a recognized brand in the e-bike tuning sector, offering smart solutions that enhance the performance and flexibility of e-bike systems. Developed by TLI Elektronik GmbH, VOLspeed specializes in plug-and-play tuning modules compatible with leading drive systems such as Bosch and Yamaha. The brand focuses on delivering increased speed limits, intuitive operation, and a seamless riding experience without compromising motor safety or diagnostics.
