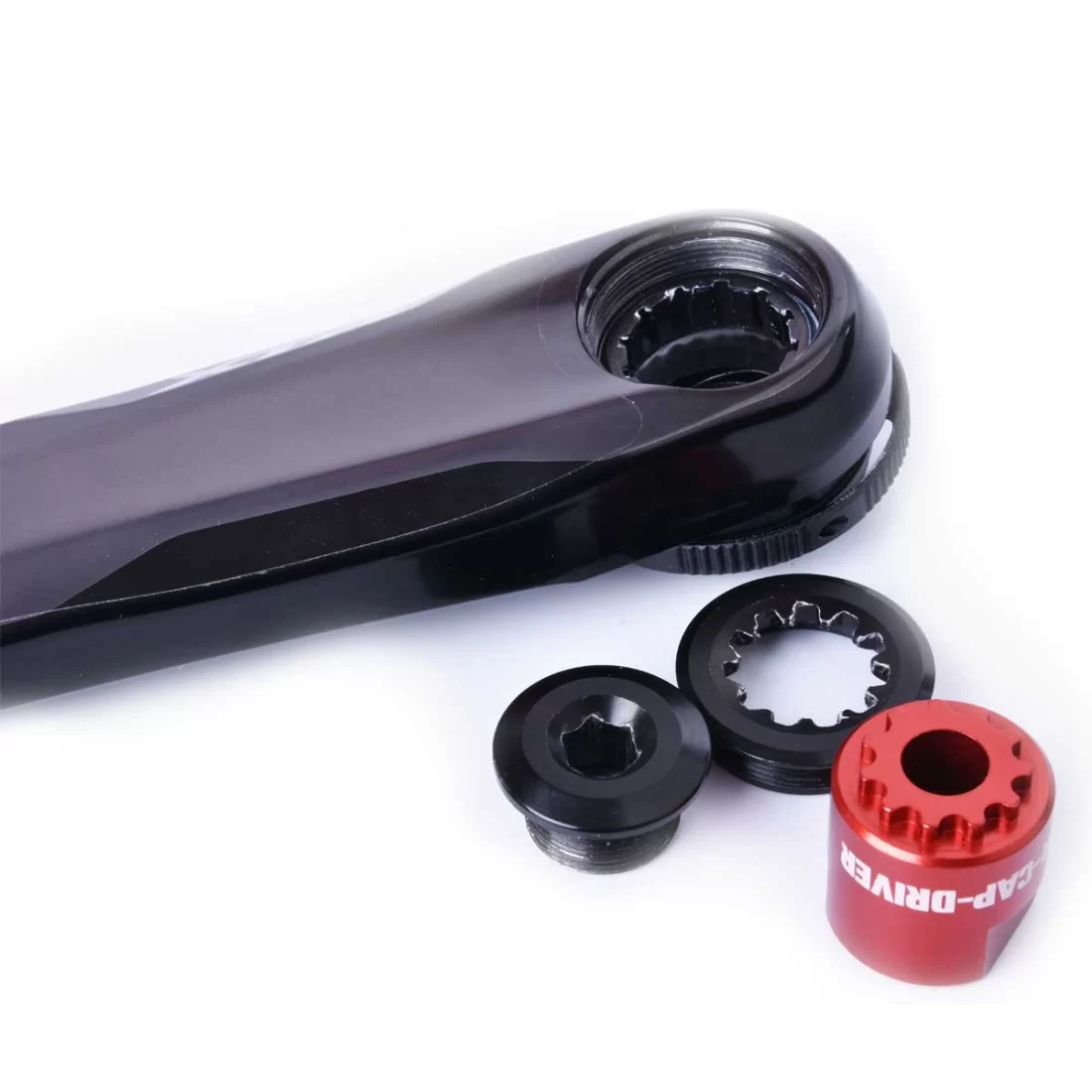

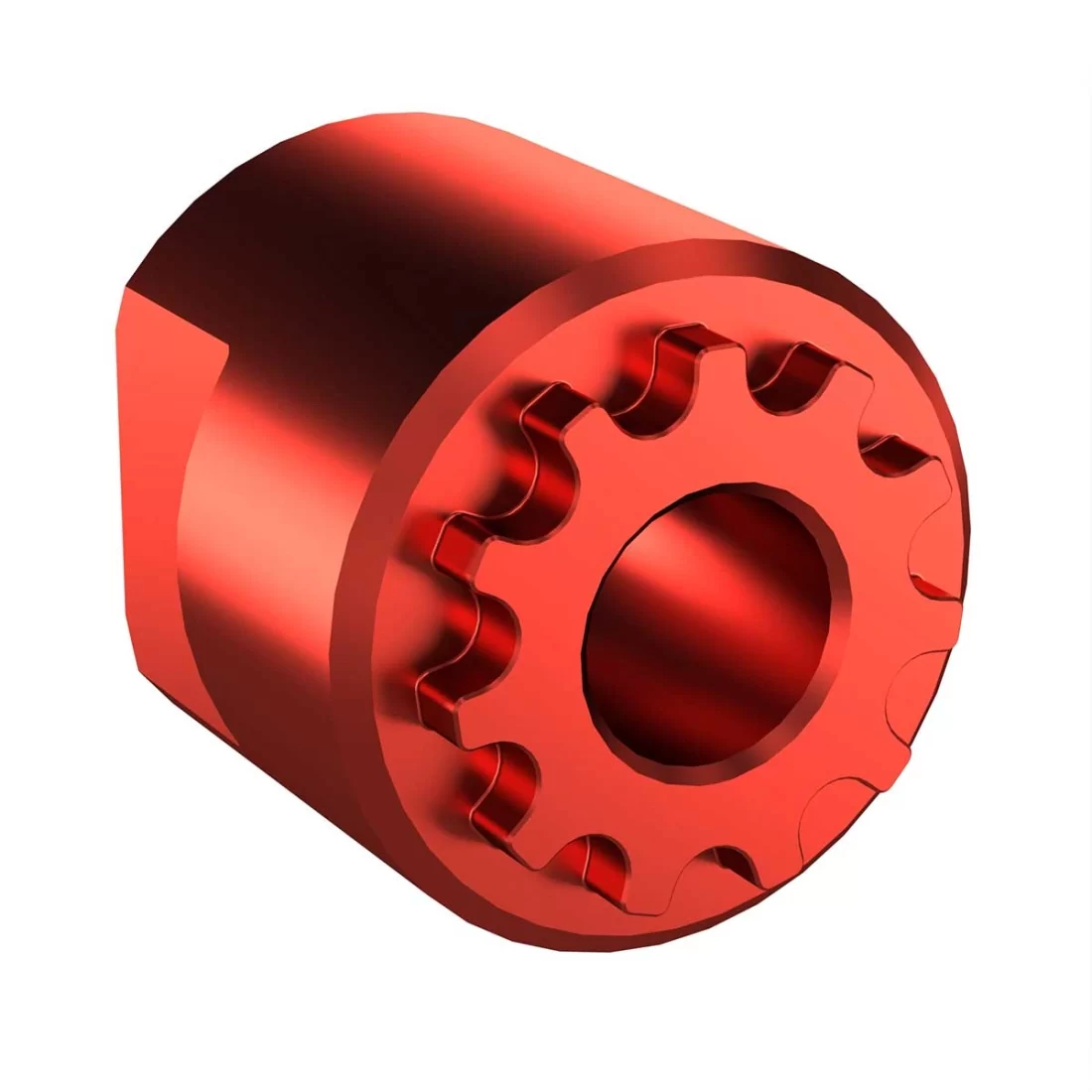

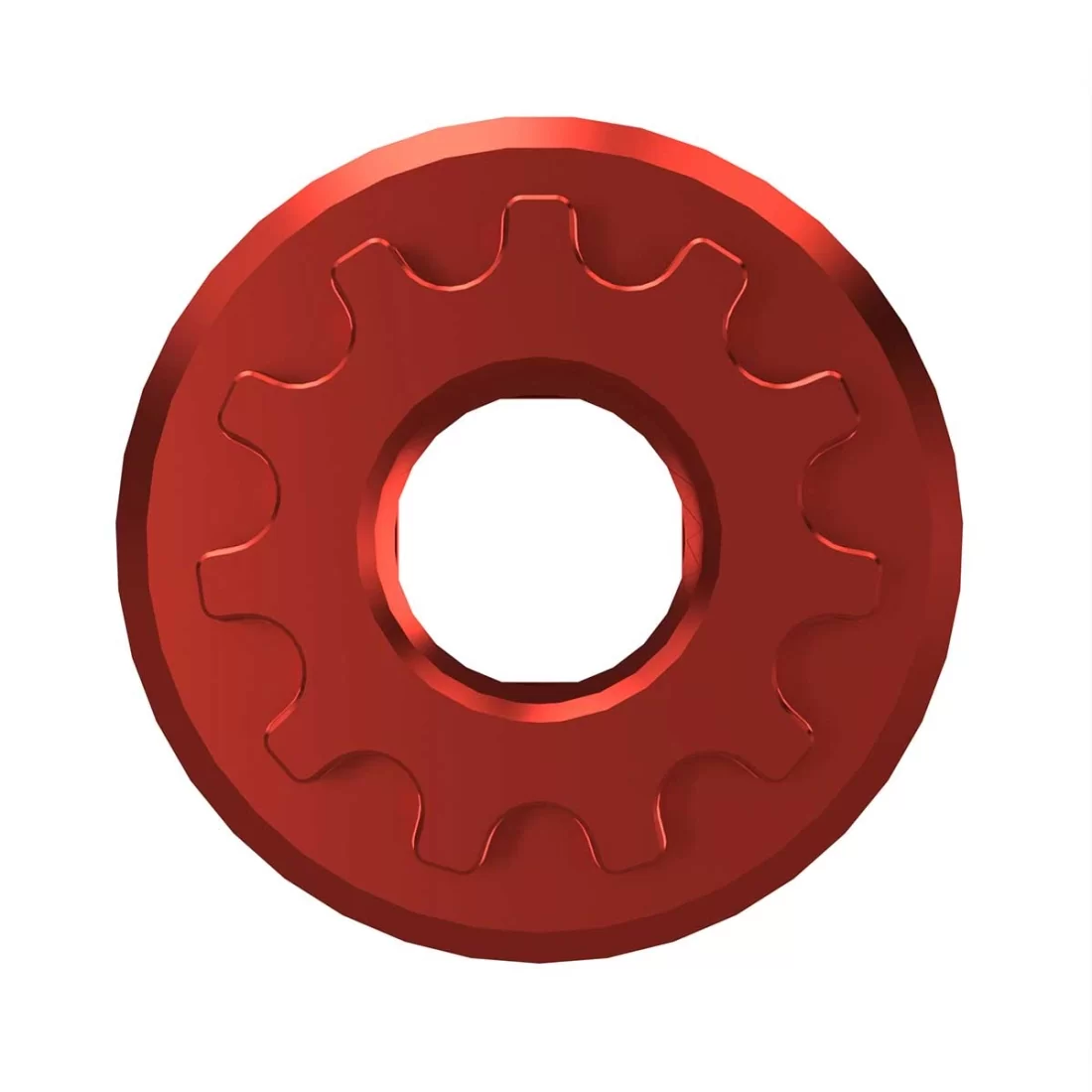

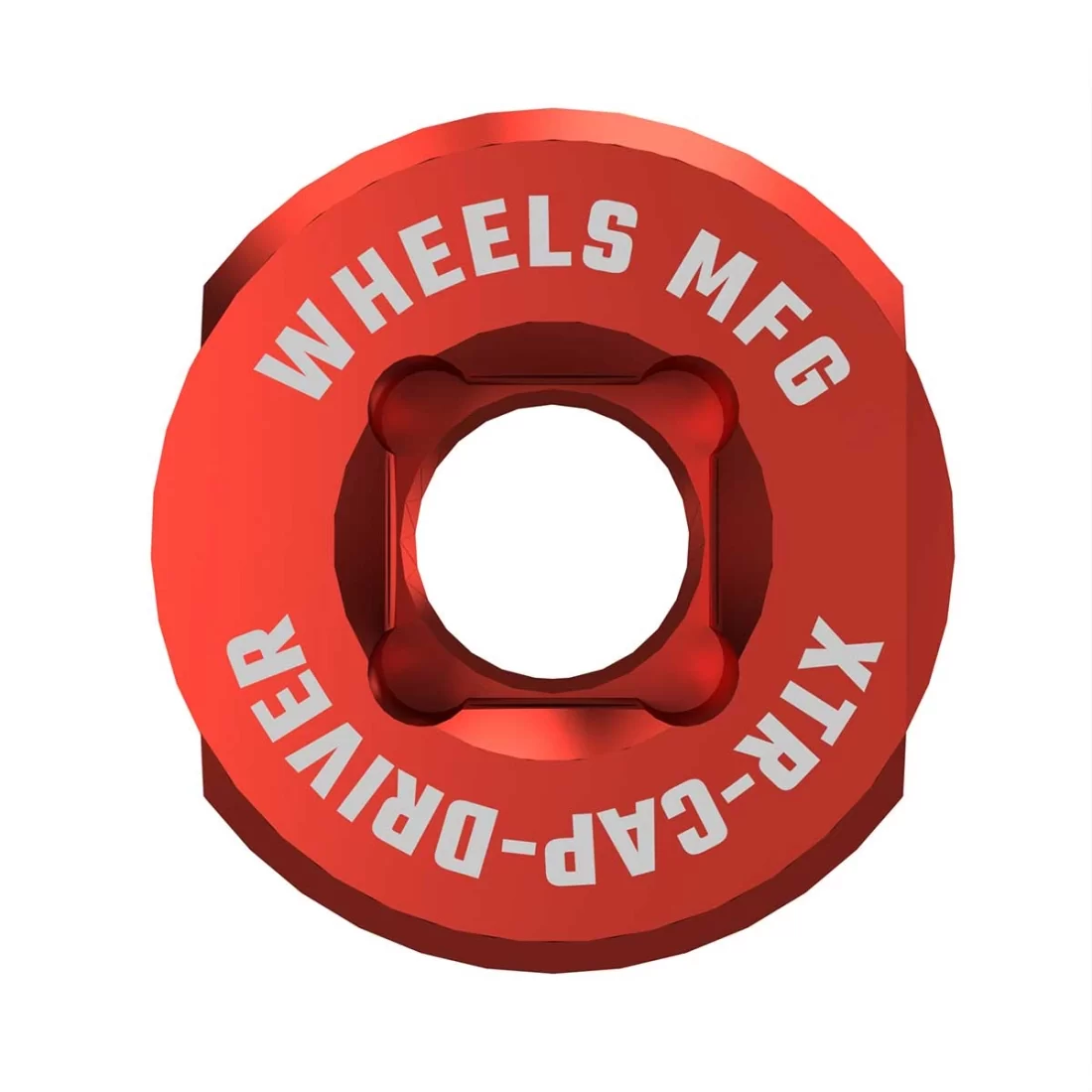

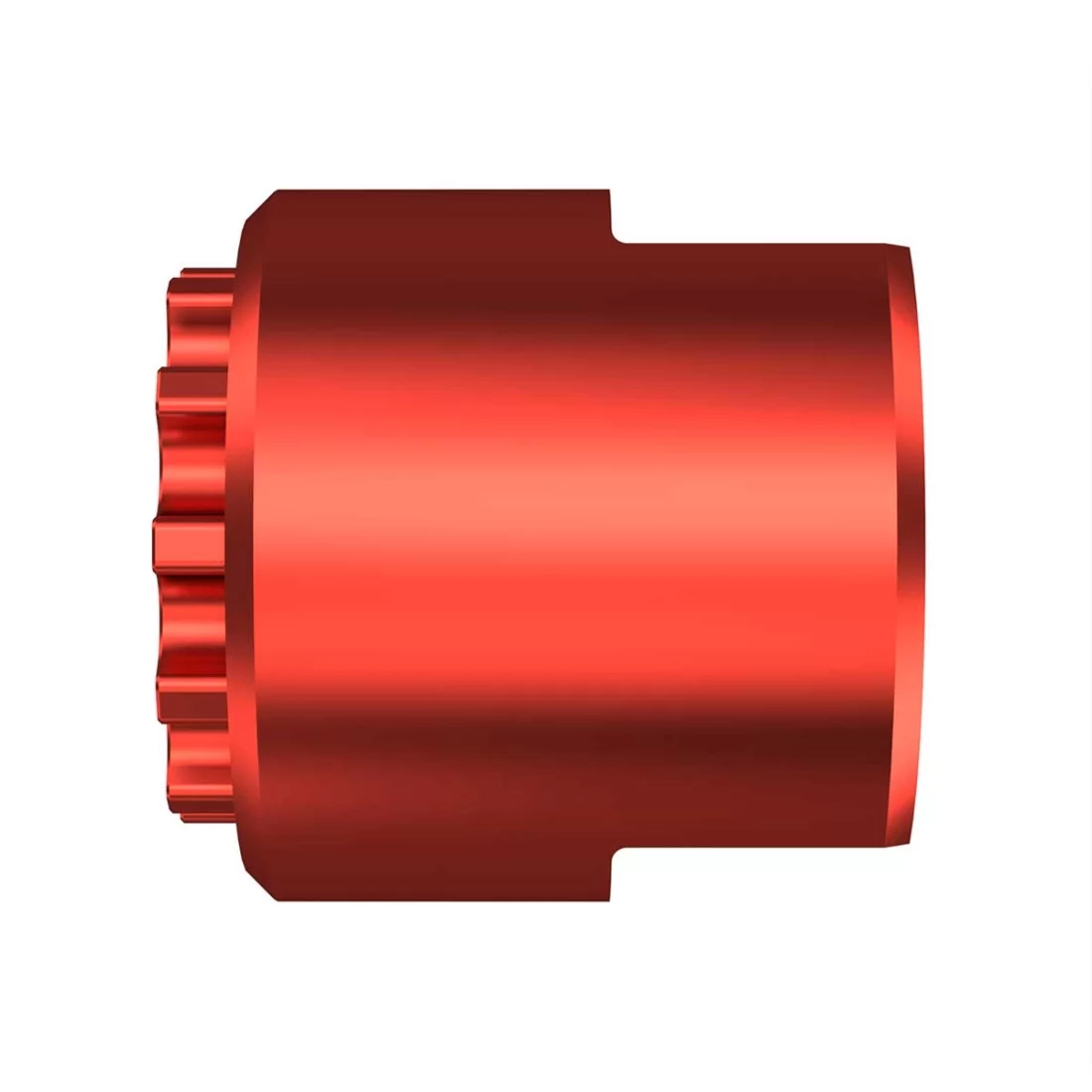

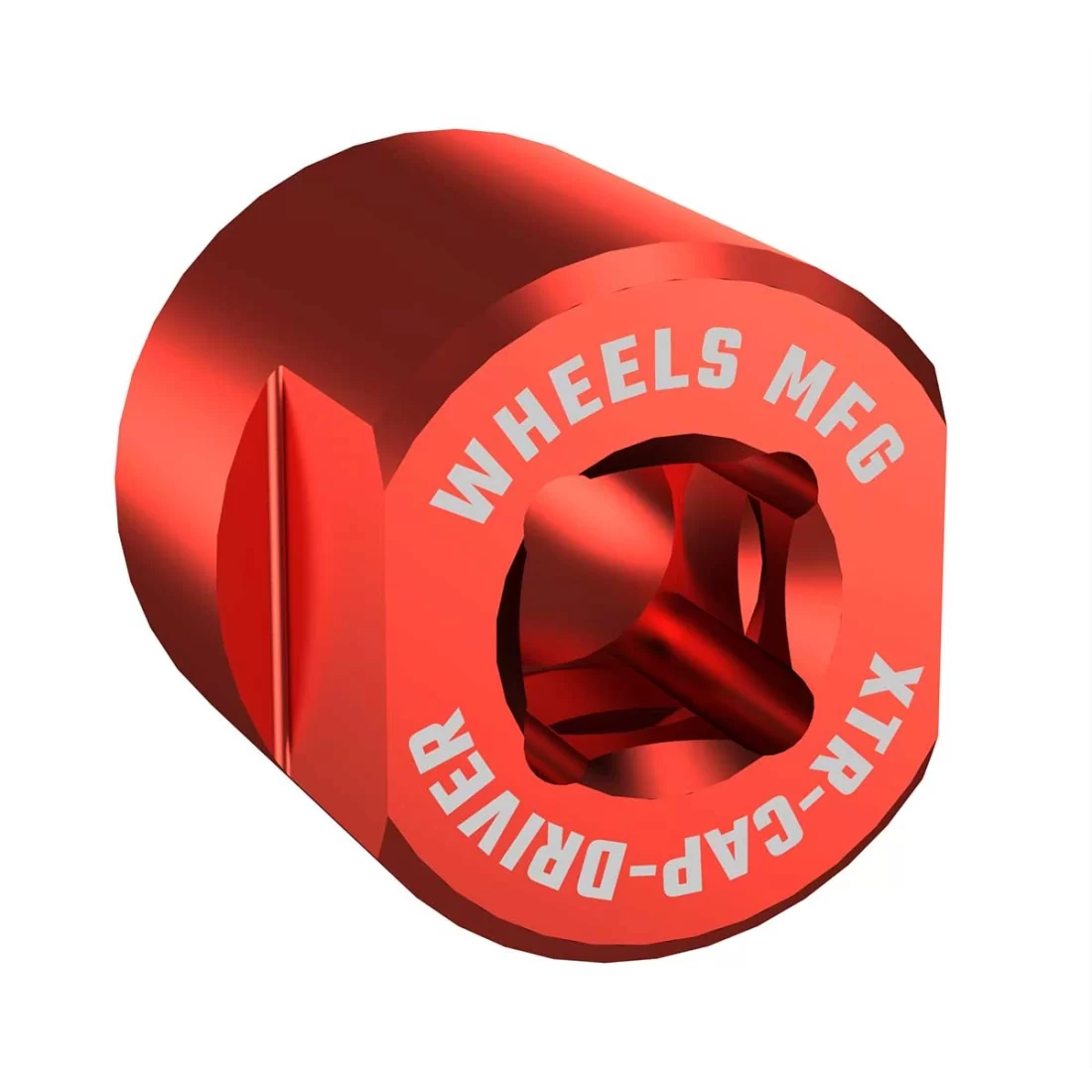

The XTR Cap Driver is used for removing and installing the crank arm bolt cap on XTR M9100 series crankarms.
If you're a bike mechanic, having the right tools for the job is crucial. This tool is specifically designed to remove and install the crank arm bolt cap on Shimano-XTR-M9100 series crank arms. Servicing crank arms or removing damaged M9100 crank arm bolts has never been easier. Designed to be used with a 3/8” drive socket or torque wrench for easy installation and removal. With its high-quality construction and precision engineering, the XTR Cap Driver is an excellent addition to your bike tool arsenal.
Spec:
- 3/8" drive interface
- Precision machined aluminum
- Anodized Red
- Sold individually
- Wheels mfg catalog number: XTR-CAP-DRIVER

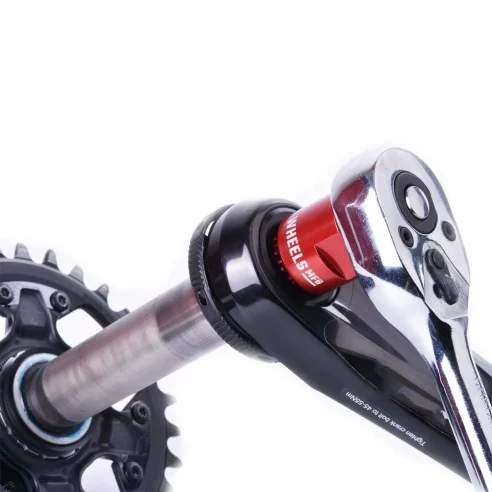

To remove the bolt cap on your Shimano-XTR-M9100 series crank arm using the Wheels Manufacturing XTR Cap Driver, follow these steps:
- Removing the Bolt Cap
- Place the XTR Cap Driver in the crank arm bolt cap, ensuring that it fits snugly.

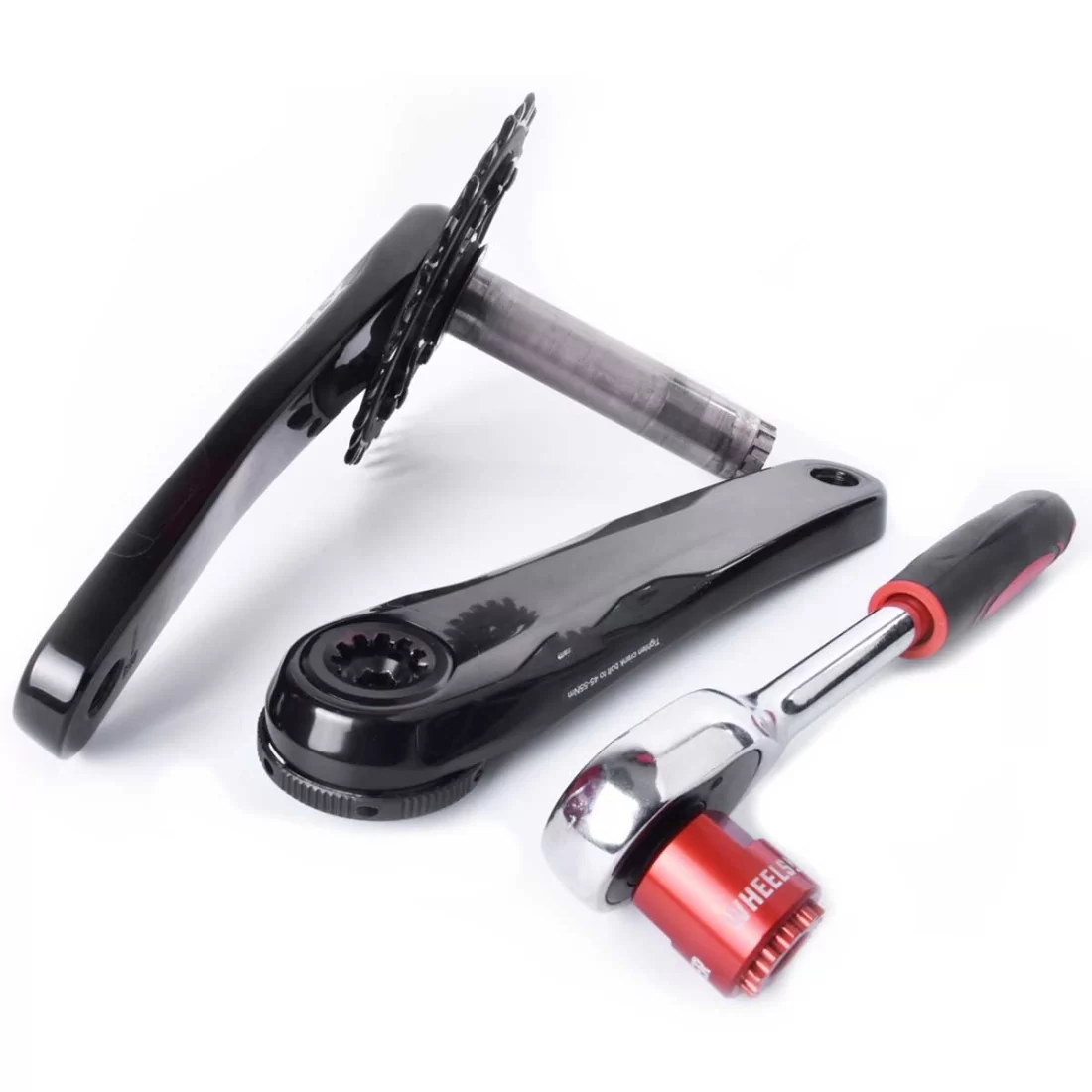

- Grab your 3/8" drive socket or torque wrench and insert it into the tool.
- Turn the tool clockwise to remove the crank arm bolt cap. Apply steady, even pressure to avoid damaging the crank arm or bottom bracket.
- Inspect the cap and the crank arm for any damage or wear, and replace any damaged components as needed.
To install the bolt cap, simply follow these steps:
- Place the XTR Cap Driver in the crank arm bolt cap and make sure it's snug.
- Use the tool with your 3/8" drive socket or torque wrench to turn the cap counterclockwise until it's snug.
- For best results, use a torque wrench to ensure you're tightening the bolt to the manufacturer's recommended specifications.
For any questions please e-mail us:
To be sure if this the right part, please send us photos of:
1. Your derailleur hanger from both sides;
2. And if possible bike‘s frame part photos, where dropout was attached.
