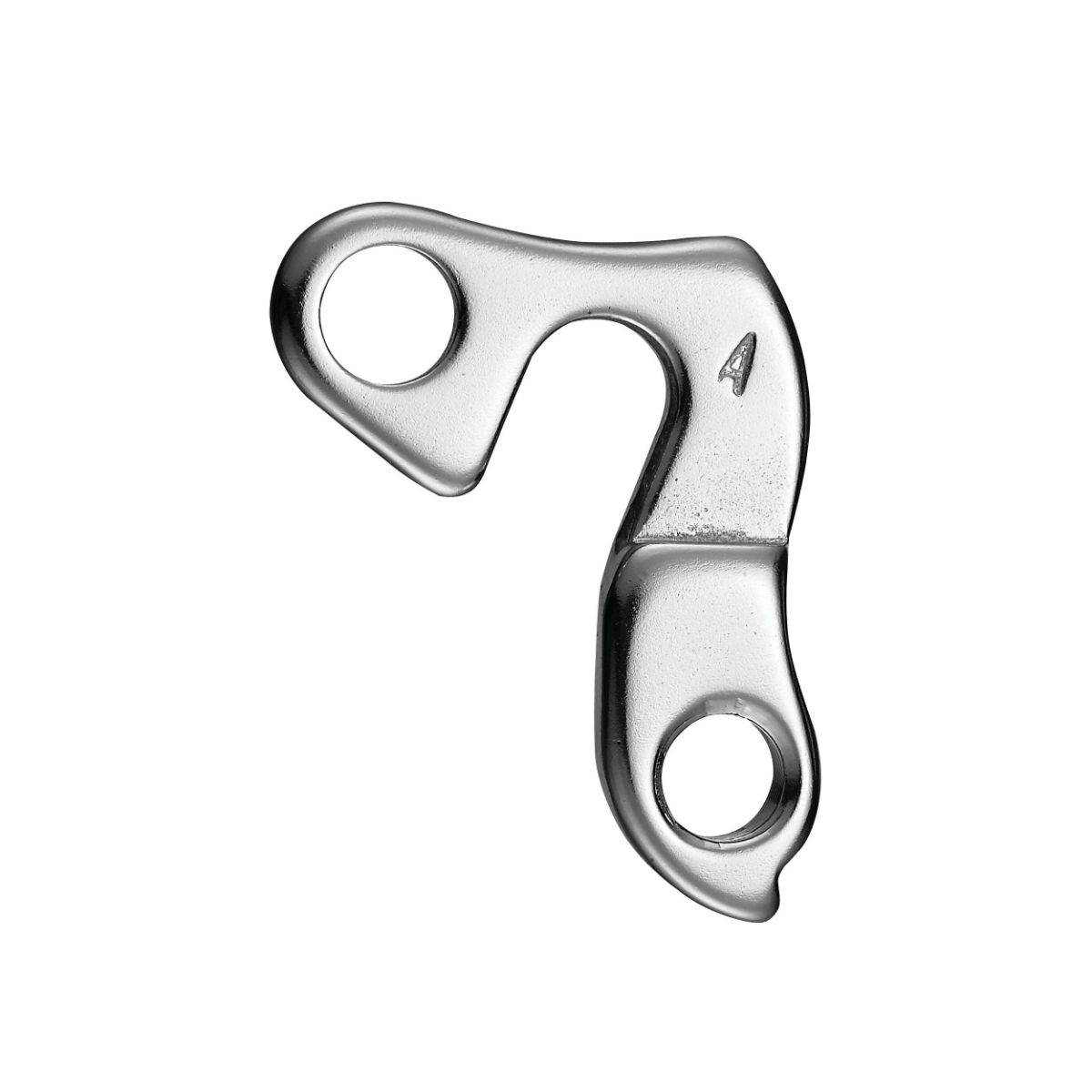

Marwi UNION GH-081 derailleur hanger for Bergamont, BH, Bianchi, Bulls, Centurion, Checker Pig, Cube, Da Bomb, Focus, Fuji, Haibike, Hercules, IronHorse, Kalkhoff, KHS, KTM, Leader Fox, Merida, Mondraker, Mongoose, Norco, Orbea, Raleigh, RedBull, Rocky Mo

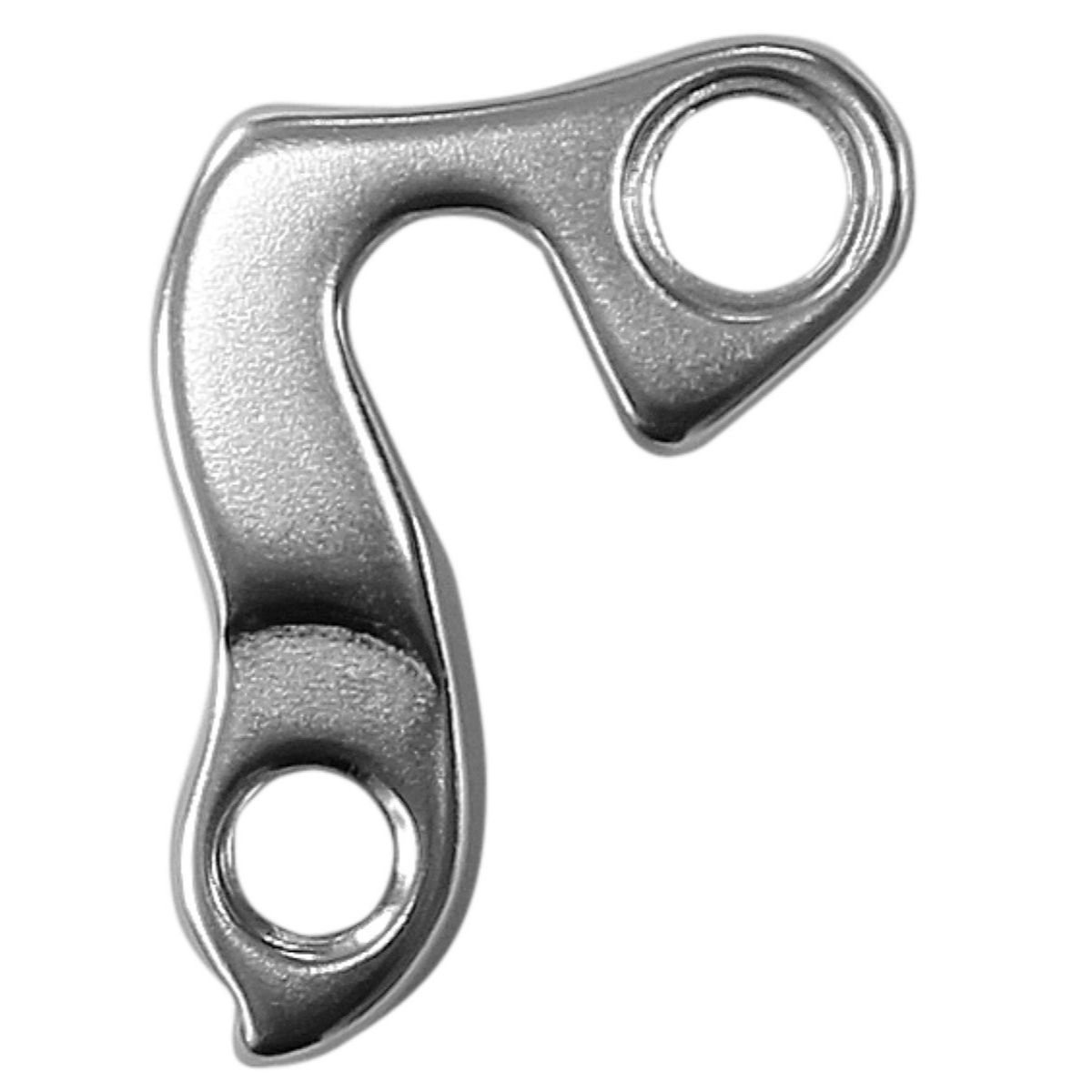

Marwi UNION GH-081 derailleur hanger rear side — GH-081 Derailleur hanger for Bergamont, BH, Bianchi, Bulls, Centurion and other bikes rear side

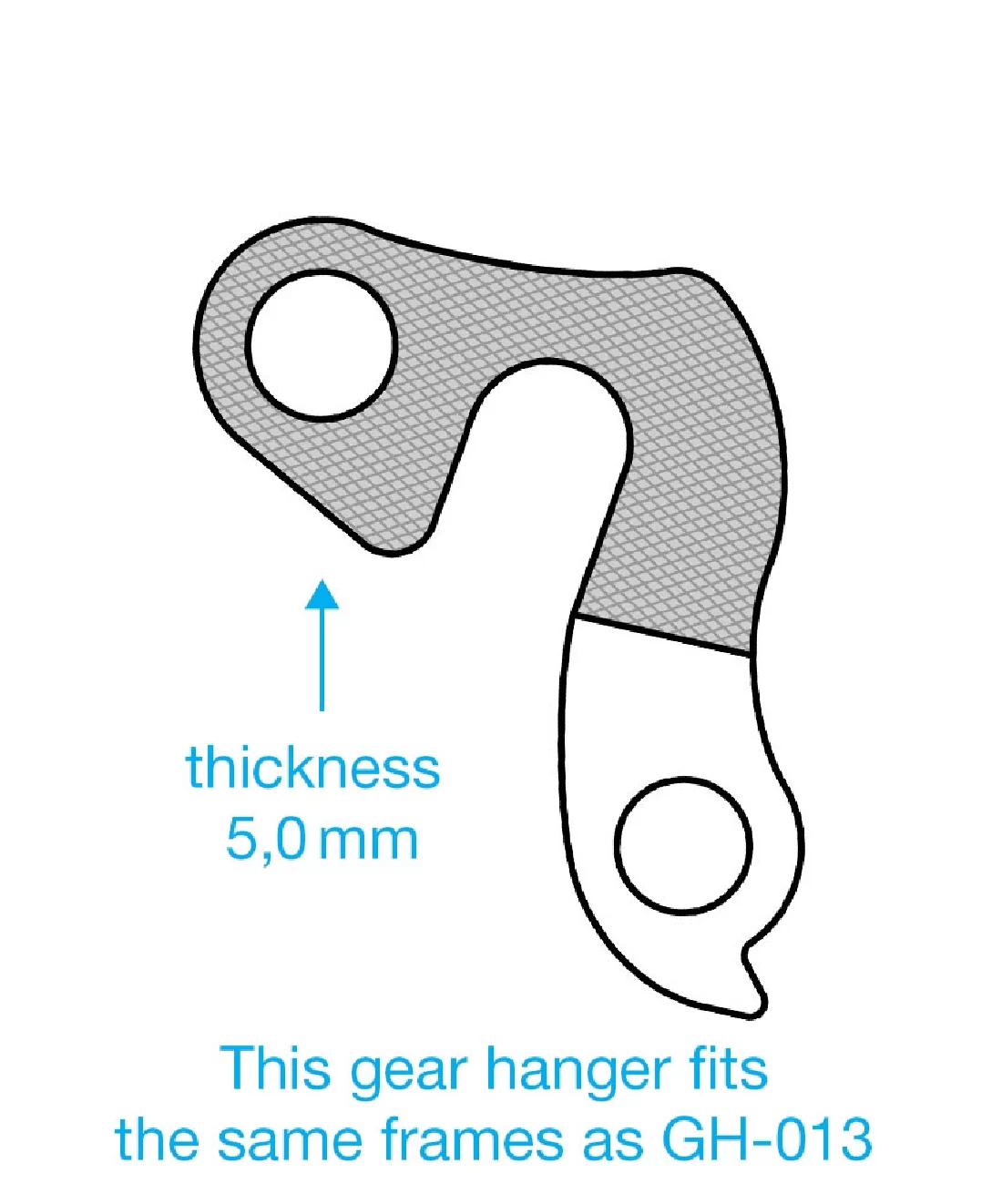

Marwi UNION GH-081 derailleur hanger front drawings — GH-081 Derailleur hanger for Bergamont, BH, Bianchi, Bulls, Centurion and other bikes front drawings

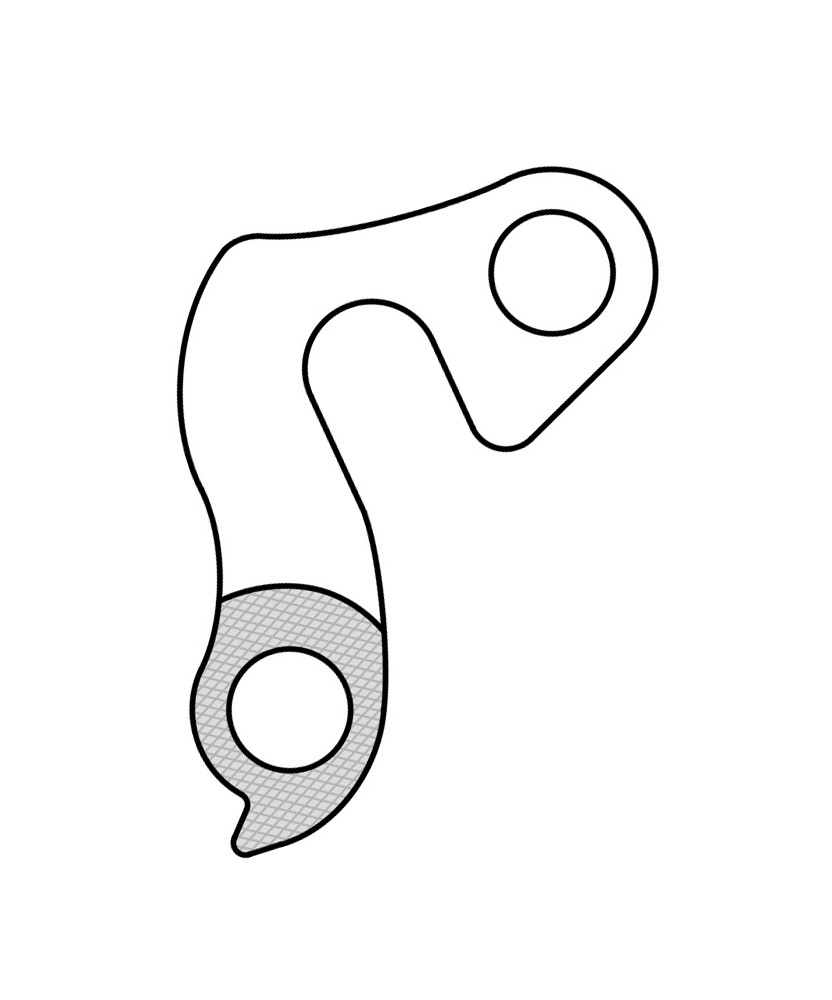

Marwi UNION GH-081 derailleur hanger rear drawings — GH-081 Derailleur hanger for Bergamont, BH, Bianchi, Bulls, Centurion and other bikes rear drawings

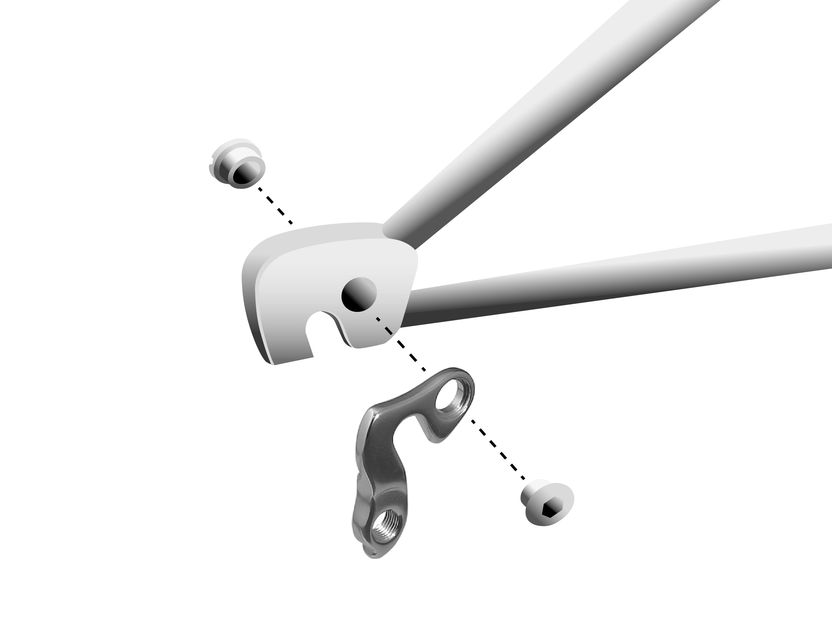

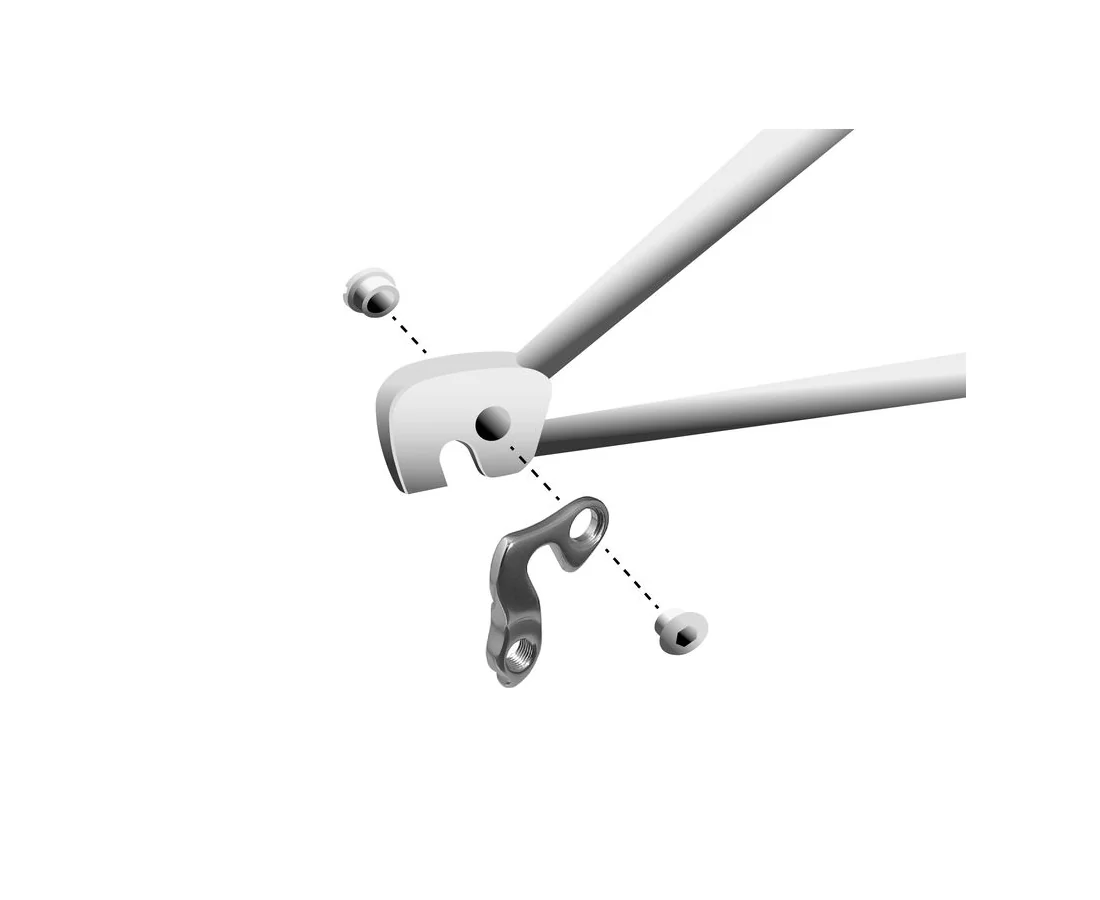

Marwi UNION GH-081 derailleur hanger assembly drawings — GH-081 Derailleur hanger for Bergamont, BH, Bianchi, Bulls, Centurion and other bikes assembly

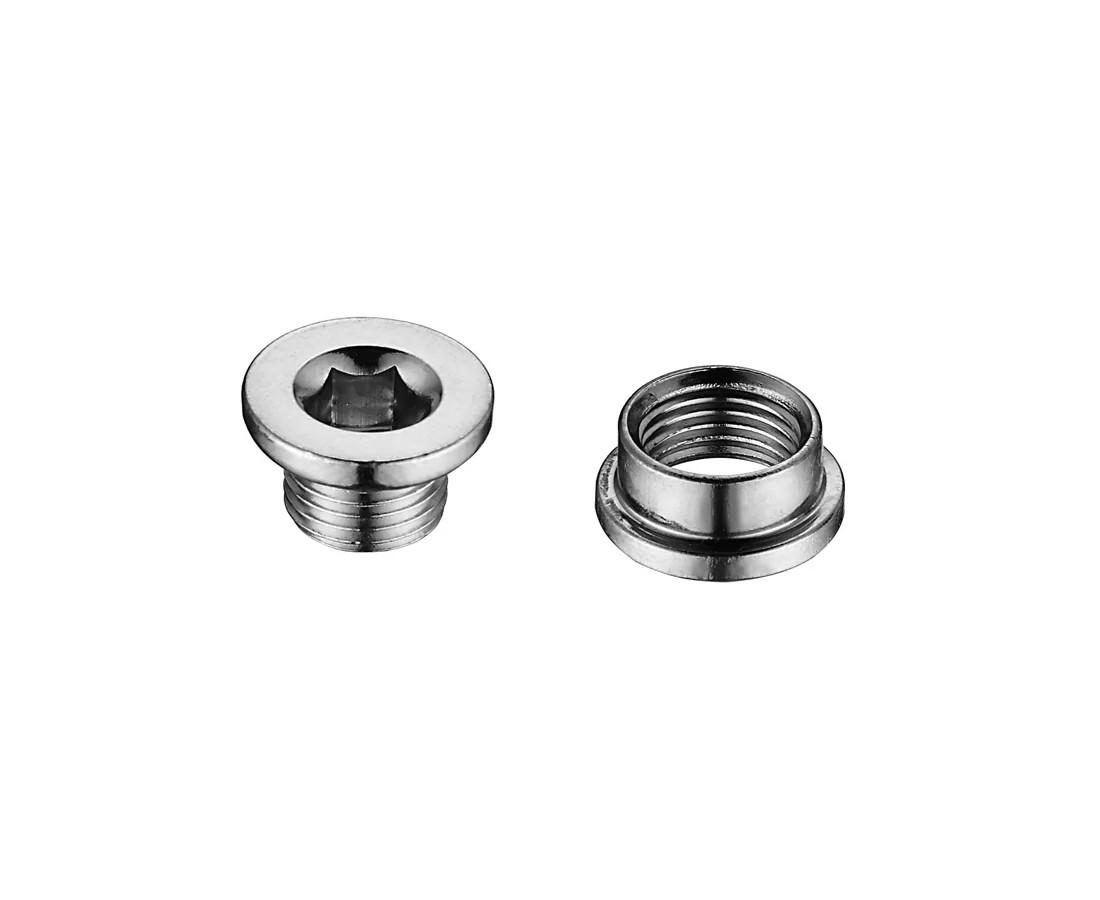

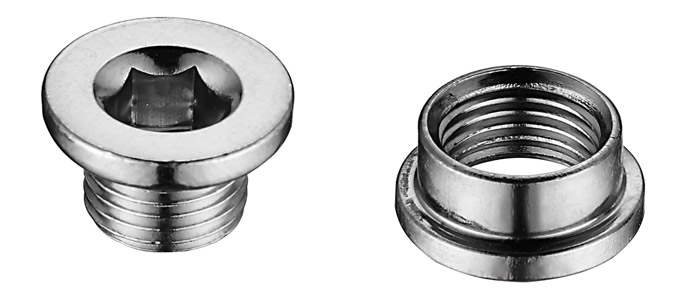

Marwi UNION GH-081 derailleur hanger screws — GH-081 Derailleur hanger for Bergamont, BH, Bianchi, Bulls, Centurion and other bikes screws

GH-081 Derailleur hanger for Bergamont, BH, Bianchi, Bulls, Centurion and other bikes

Specifications

Bicycle brand	Bergamont, BH, Bianchi, Bulls, Centurion, Checker Pig, Cube, Da Bomb, Duncan, Focus, Fuji, Haibike, Hercules, IronHorse, Kalkhoff, KHS, KTM, Leader, Merida, Mondraker, Mongoose, Norco, Orbea, Quietkat, Raleigh, RedBull, Rocky Mountain, Saracen, Simplon, Staiger, Stevens, Torpado, Univega, VSF, Winora
Number of fasteners	1
Mounting on frame	Outer
Shape of Step	Straight line
Axle diameter	5 mm (Standard QR)
Material	Cast aluminium
Derailleur mount type	Standard mount

16,00 €

– +

Product Description

Derailleur hanger, gear mech hanger, dropout replacement for Bergamont, BH, Bianchi, Bulls, Centurion, Checker Pig, Cube, Da Bomb, Focus, Fuji, Haibike, Hercules, IronHorse, Kalkhoff, KHS, KTM, Leader Fox, Merida, Mondraker, Mongoose, Norco, Orbea, Raleigh, RedBull, Rocky Mountain, Saracen, Simplon, Staiger, Stevens, Torpado, Univega, VSF Fahrradmanufaktur, Winora, QuietKat bike models:

UNION rear derailleur hanger manufactured by Marwi one of the most know manufacturers in the world:

Material: Cast aluminium.
Bolts included.
Marwi catalog number: GH-081
AKA mech hanger, gear hanger:

For any questions please contact us or send an email to:

This email address is being protected from spambots. You need JavaScript enabled to view it.

To be sure if this the right part, please send us photos of:

1. Your derailleur hanger from both sides;

2. And if possible bike‘s frame part photos, where dropout was attached.
