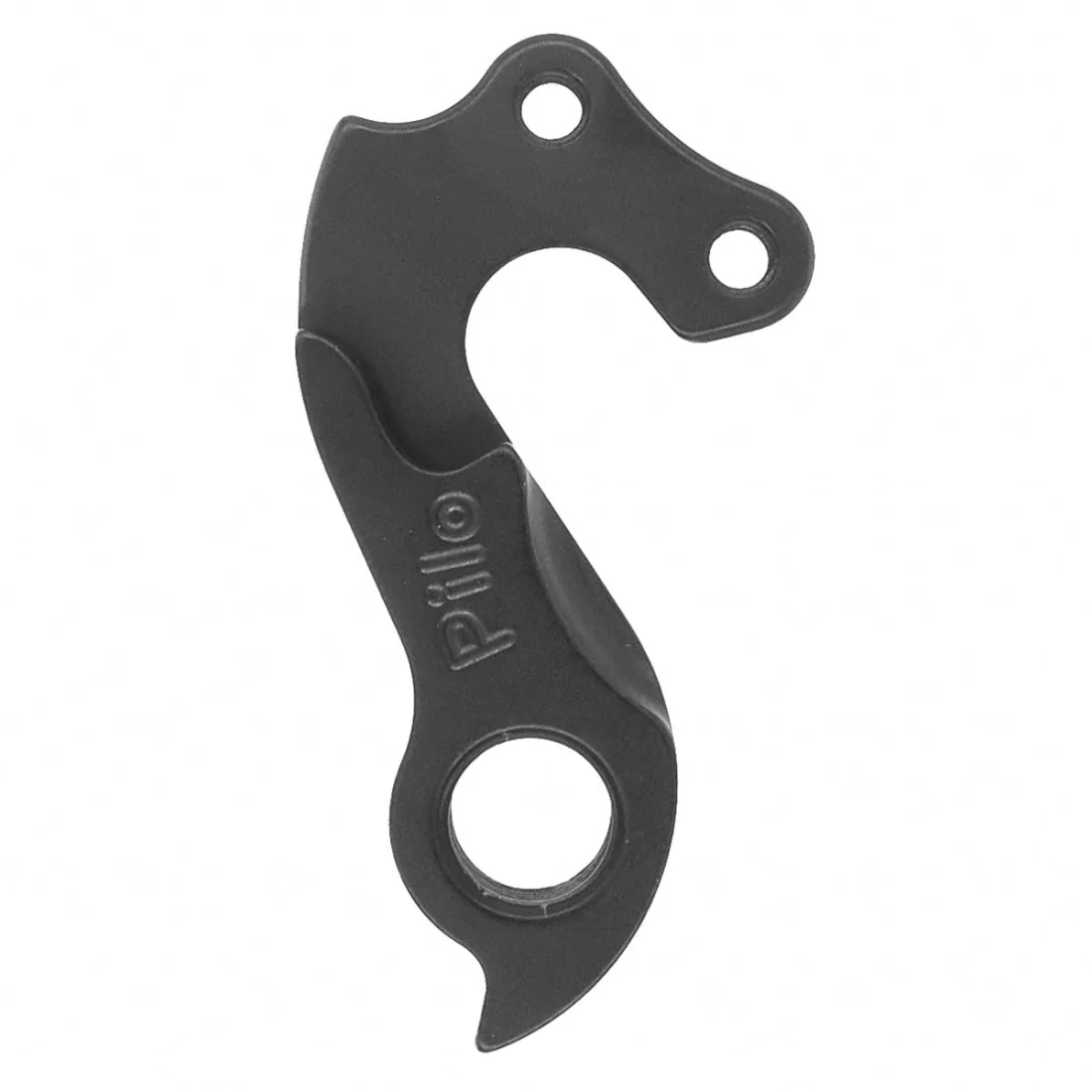

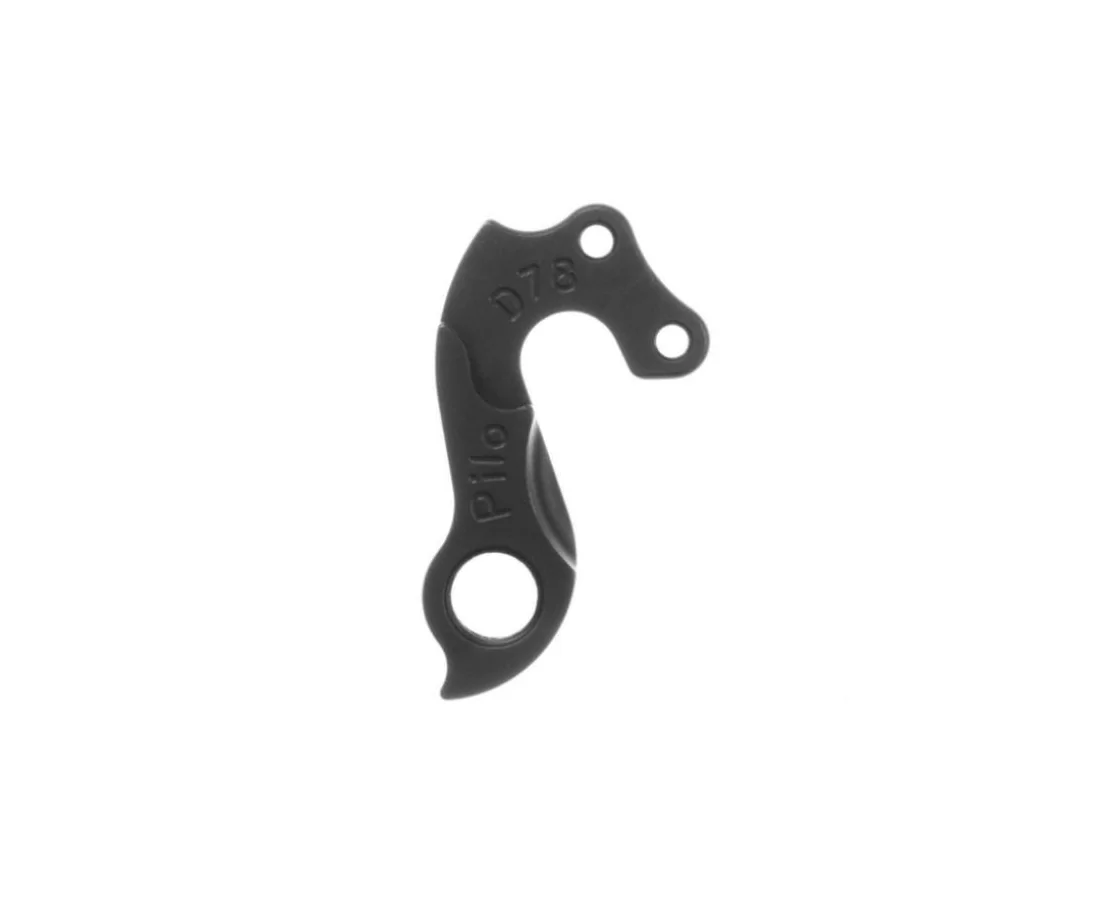

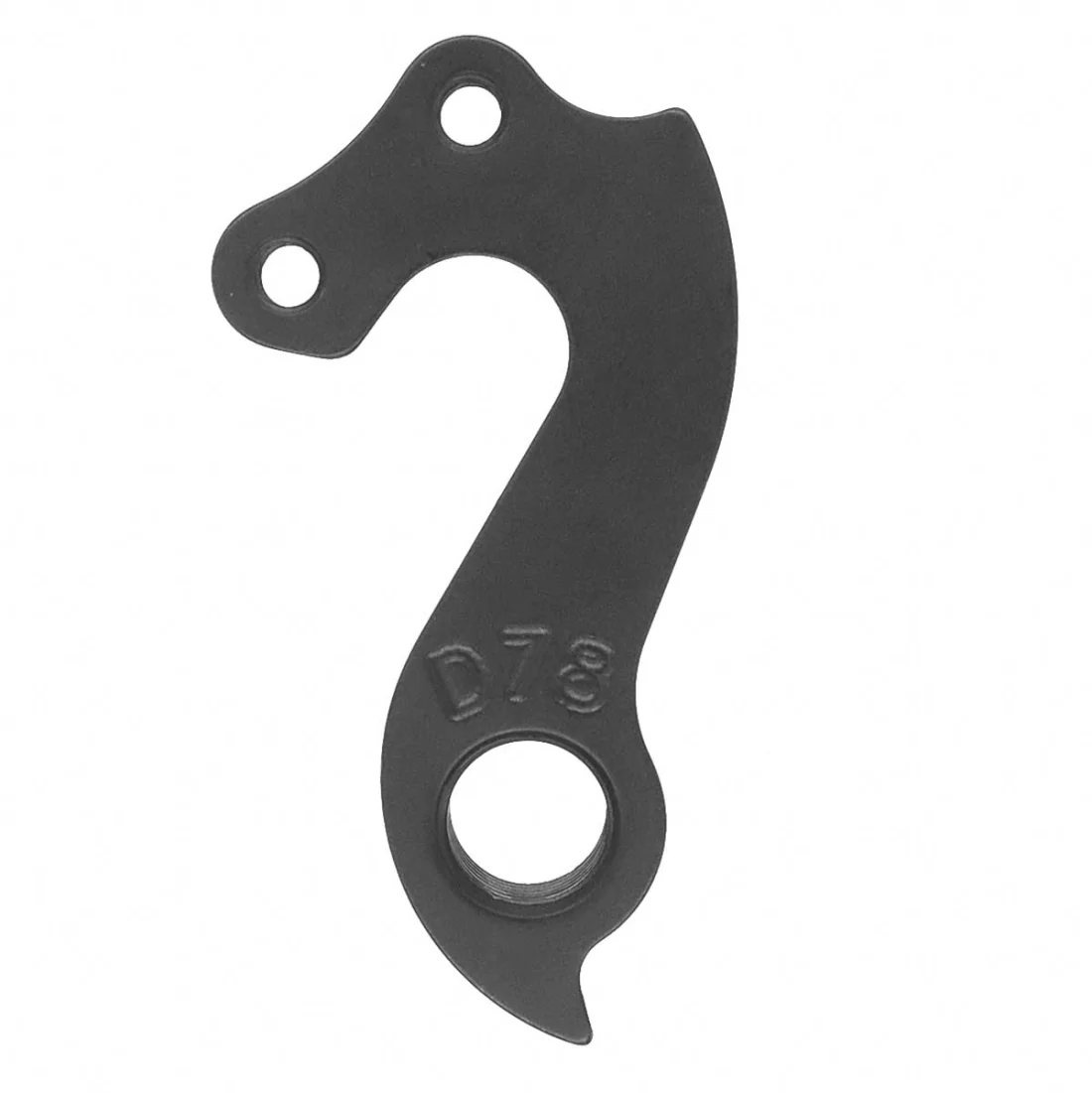

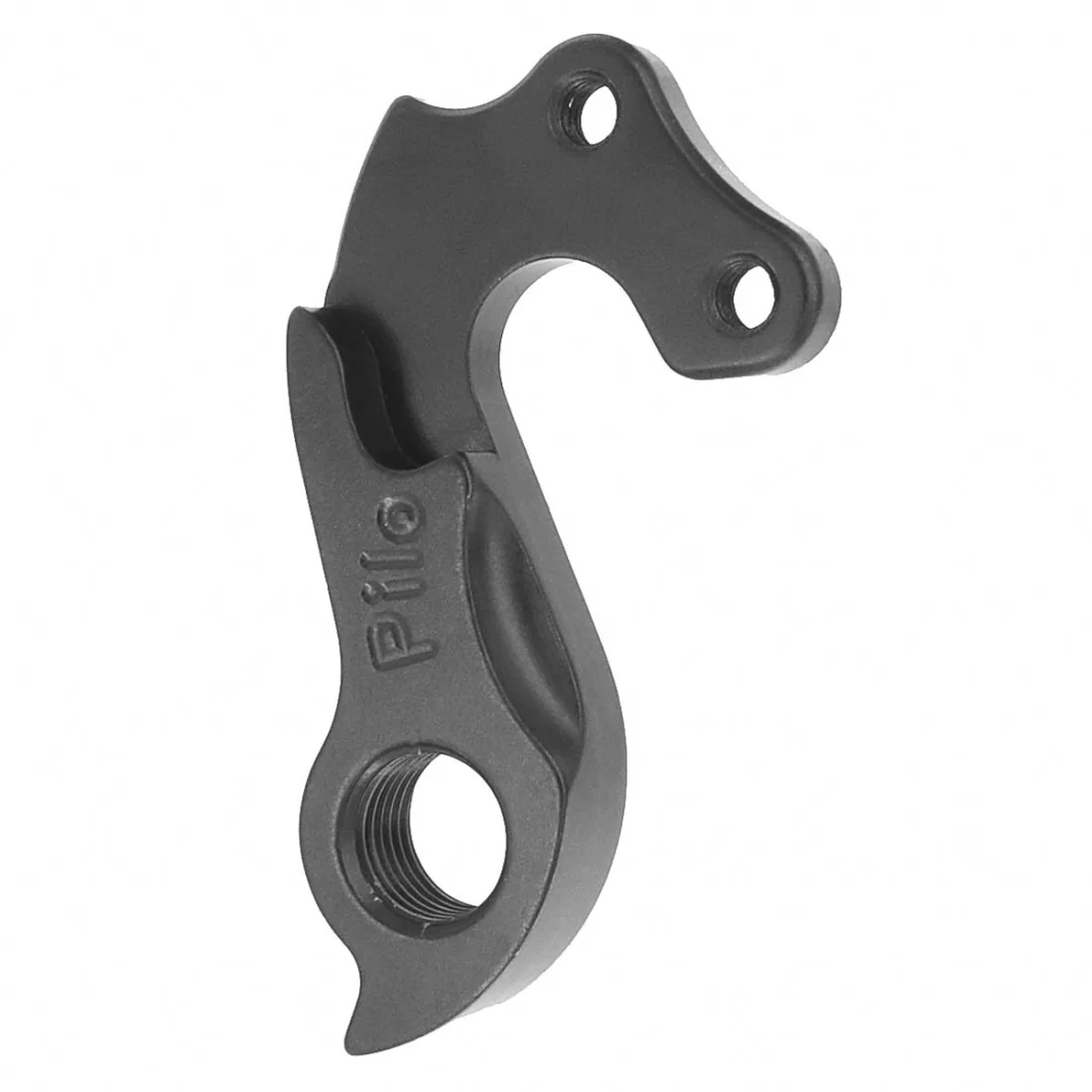

D78 derailleur hanger for Marin, Ironhorse, Orbea, DeRosa, Canyon No. 8, Fuji, Wilier, Merida bikes

• Rear gear mech hanger, derailleur hanger manufactured by PILO.
• Material: CNC machined 6061 T651 aviation aluminium.
• Color: black, anodized finish.
• Bolts included.
• Pilo catalog number: D78
• Fits Centurion frames:
  • 2014 cross speed 500, 1000, 3000, 2000, 4000, hyperdrive 2000, 4200, gigadrive 4200.
• Fits Canyon (aka mech hanger No.8) frames:
  • 2002 - Competition, Competition WRX, Elite WRX, Passione, Passione Focoso, Passione Record, Roadlite Elite, Roadlite Ultimate, Roadmaster Pro, Roadmaster Ultimate, Speedmax 1000 - 3000.
• Fits Head frames:
  • 2015 29 Trenton, 28 Electric.
• Fits Megamo frames:
  • 2015 R15 Ultegra Di2, R15 105 11s.
• Fits Bottecchia frames:
  • 2015 E-bike TRK 28 Shimano Steps, e-bike MTB carbon 27.5 XT/deore.
• Fits Univega frames:
  • 2015 Terreno Xion 1.0 LTD, Explorer 1.0, X-fighter 1.0,Summit  LTD,Vision LTD, Vision 8.0, Summit 8.0, Terreno 3.0 Street, Terreno 4.0, Terreno. LTD, Terreno 7.0, Terreno 2.0, Terreno 1.0, Terreno 3.0.
• Fits Raleigh frames:
  • 2000 – R800.
  • 2015 shuffle 2.0, shuffle 1.0, Stoker X3, Stoker X5,Executive 24, Oakland, Executive 21, Richmond HS, Rushhour 1.0.
• Fits Kalkhoff frames:
  • And other models.
  • 2015 Pro Connext X24.
• Fits Enigma frames:
  • Evade/Evolve/Esprit/Elle/Etape & Echo Caliper 2012 onwards
• Fits Merida (aka 2311004627, 010 DH-8317, 8317-0000P) frames:
  • Merida Road 880, 2007 road FLX (NOT fit Merida 905 frame)
  • Merida SPEEDER T5 / T3 / T2 / T1 2012
  • Merida RACE LITE 905 / 904 / 903 / 901 / 880 2012
  • Merida RIDE LITE 95 / 94 / 93 / 91 / JULIET  2012
  • Merida RIDE 88 / 85 / 77 / 75 / JULIET  2012
  • Merida RIDE LITE 95-30 / 95 / 94-30 / 94 / JULIET 94-30  2013
  • Merida RIDE LITE JULIET 94 / 93-30 / 93 / 91-27 / 91  2013
  • Merida RIDE LITE JULIET 91-27 / JULIET 91 / 90-24 / 90  2013
  • Merida RIDE 88-24 / 88-16  2013
  • Merida RACE LITE 905 / 904 / 903 / 901 / 900  2013
  • Merida SPEEDER I8 / T5 / T3-D / T3 / T2-D / T2 / T1  2014
  • Merida RIDE 94 / JULIET 94 / 93-30 / 93 / 91  2014
  • Merida RIDE JULIET 91 / RIDE 90 / 88-24 / 88  2014
  • Merida SPEEDER T5 / T3-D / T3 / T2-D / T2 / T1-MD / T1  2014
  • Merida SCULTURA 905 / 904 / 903 / 901 / 900  2014
  • Merida SCULTURA 500 / 400 / 300 / 200 / 100  2015
  • Merida RIDE 500 / 400 / 400 JULIET / 300 / 300 JULIET  2015
  • Merida RIDE 300-30 / 300-30 JULIET / 300 -NO / 200  2015
  • Merida RIDE 100 / 100-JULIET / 100-24 / 100-24 JULIET 2015
  • Merida CYCLO CROSS 700 / 500 / 300  2015
  • Merida SPEEDER 500 / 300 / 300-D / 300 JULIET  2015
  • Merida SPEEDER 200 / 200-D  2015
  • Merida SPEEDER 100 / 100-MD / 100 JULIET  2015
  • Merida REACTO 500 / 400 / 300  2015
  • Merida CYCLO CROSS 700 / 500 / 300 / 100  2016
  • Merida REACTO 500 / 400 / 300  2016
  • Merida RIDE 100 / 200 / 300 / 400 / 500  2016
  • Merida RIDE 100 JULIET / 300 JULIET / 400 JULIET  2016
  • Merida RIDE DISC 200 / 300 / 500  2016
  • Merida SCULTURA 100 / 200 / 300 / 400 / 500  2016
  • Merida SPEEDER 500 / 300 / 300-JULIET / 100  2016
  • Merida SPEEDER 900 / 500 / 400 / 300 / 400 JULIET  2017
  • Merida SPEEDER 300 JULIET / 200 / 100 / 100 JULIET  2017
  • Merida CYCLOCROSS 700 / 600 / 500 / 300  2017
  • Merida REACTO 500 / 400 / 300  2017
  • Merida SCULTURA 500 / 400 / 400 JULIET / 300 / 200 / 100 / 100 JULIET  2017
  • Merida SCULTURA DISC 200 2017
  • Merida RIDE 500 / 400 / 300 / 400 JULIET / 300 JULIET / 200 / 100 / 100 JULIET  2017
  • Merida RIDE DISC 500 / ADVENTURE / 100 / 100 JULIET  2017
• Fits Fuji frames:
  Team and many of their road bikes.
• Fits Marin (Aka hanger #16) frames:
  Fits early 2005 VENEZIA only (road bikes).
• Fits Focus frames:
  • 2012 – Black Hills, Black Forest 29, 26, Raven
  • 2011 – Fat Boy, Super Bud
  • 2010 - Raven
  • 2008 – Red Falls / ladies, Marakas / ladies, Lost Lagoon, Crater Lake, Chonos, Blue Ridge
  • 2007 - Lost Lagoon, Crater Lake, Cariboo Peak, Aventura
  • 2006 – Cayo Expert (some of the frames – please compare the photo to your part or send us a photo so we can help)
• Fits Diamondback frames:
  2009 Sherwood SL, Sherwood pro, Sherwood force, Sherwood XC, Sherwood basic.
• Fits Ironhorse frames:
  • 2006 – Excelsior
  • Victory - 2007
• Fits Salsa frames:
  • 2003-2004 - Las Cruces, Campeon.
• Fits Fondriest frames:
  2009 Tieffedue, TF1, RP-TRE (will NOT fit Fondriest Domino).
• Fits Orbea, Stevens, Primus Mootry, De Rosa, LE TOUR de FRANCE,Polaris mtb, Wilier, KSM, BH, Dedacciai, Definitive, Gitane, Go Sport, Haibike, MBK, On One, Planet X, Ridley, Scrapper, Pro Lite, Apollo, Hoy, Ghost, Aquila, Origin8 , Fetish, Ellsworth, Redline, KHS, Enigma frames:
  • Stevens Cyclocross : 2011-2012
  • Stevens Xenon : 2012
  • Hoy Aomori Road : Some Years
  • Hoy Sa Calobra Road : Some Years
  • Gitane mach 2400
  • Aquila CX Elite
  • Ellsworth Roots - 2009-2013
  • Kettler SixFifty 608 - 2013-2014
  • KHS Flite 750 - 2013
  • KHS Saguaro - 2012-2013
  • KHS SixFifty 605 - 2014
  • KHS Team 29 - 2013
  • Orbea Aletta
  • Orbea Aqua - 2008
  • Orbea Aqua TDF - 2008
  • Orbea Aqua TDI - 2008
  • Orbea Asphalt - 2010
  • Orbea Mitis - 2010
  • Orbea Most Carbon Frames - 2009
  • Origin8 Some 700c Road Frames
  • Planet X Dirty Harry
  • Primus Mootry Kluisberg - Pre-2008
  • Primus Mootry Kluisberg-X - Pre-2008
  • Redline D600, D606, D610, D620 - 2015
  • Enigma Evade/Evolve/Esprit/Elle/Etape & Echo Caliper 2012 onwards
• Fits Olympia frames:
  2007 RSX Plus

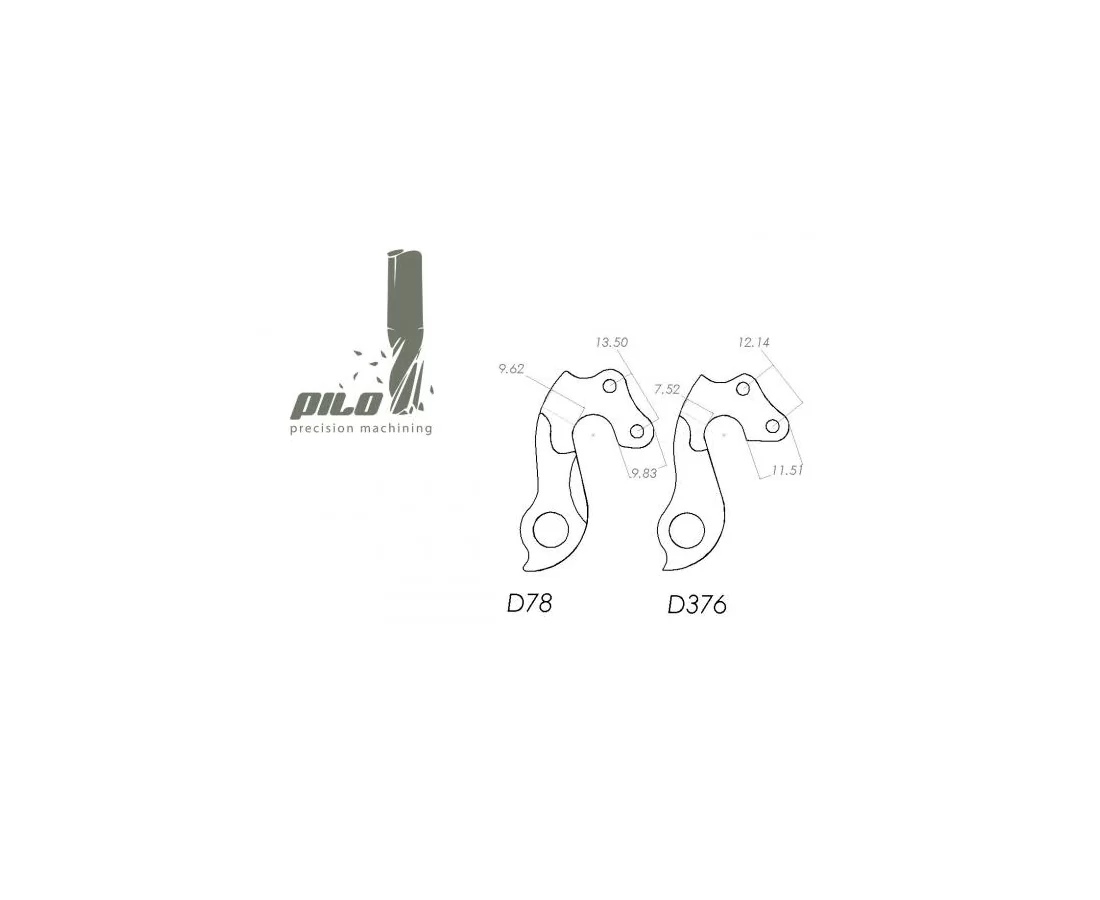

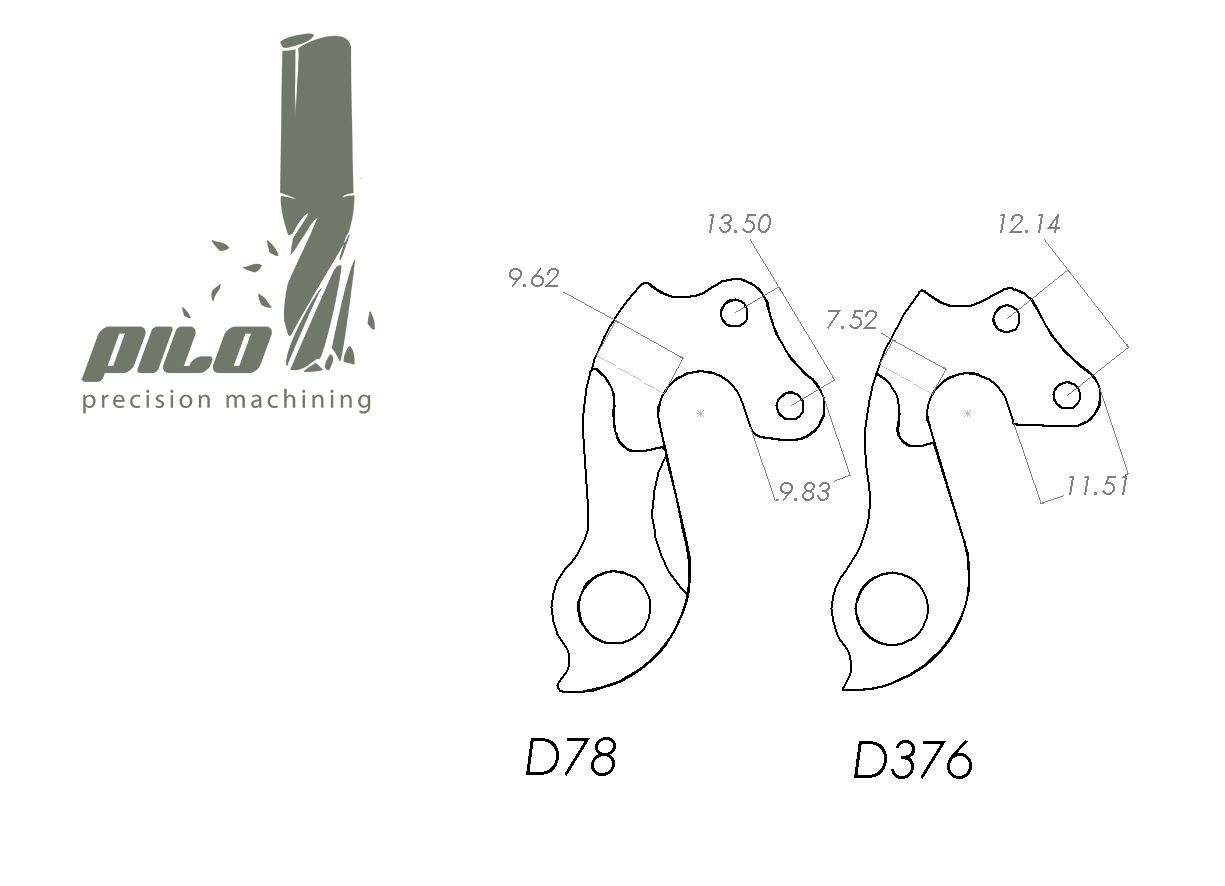

Distance between 2 small holes is 13.5mm center to center
