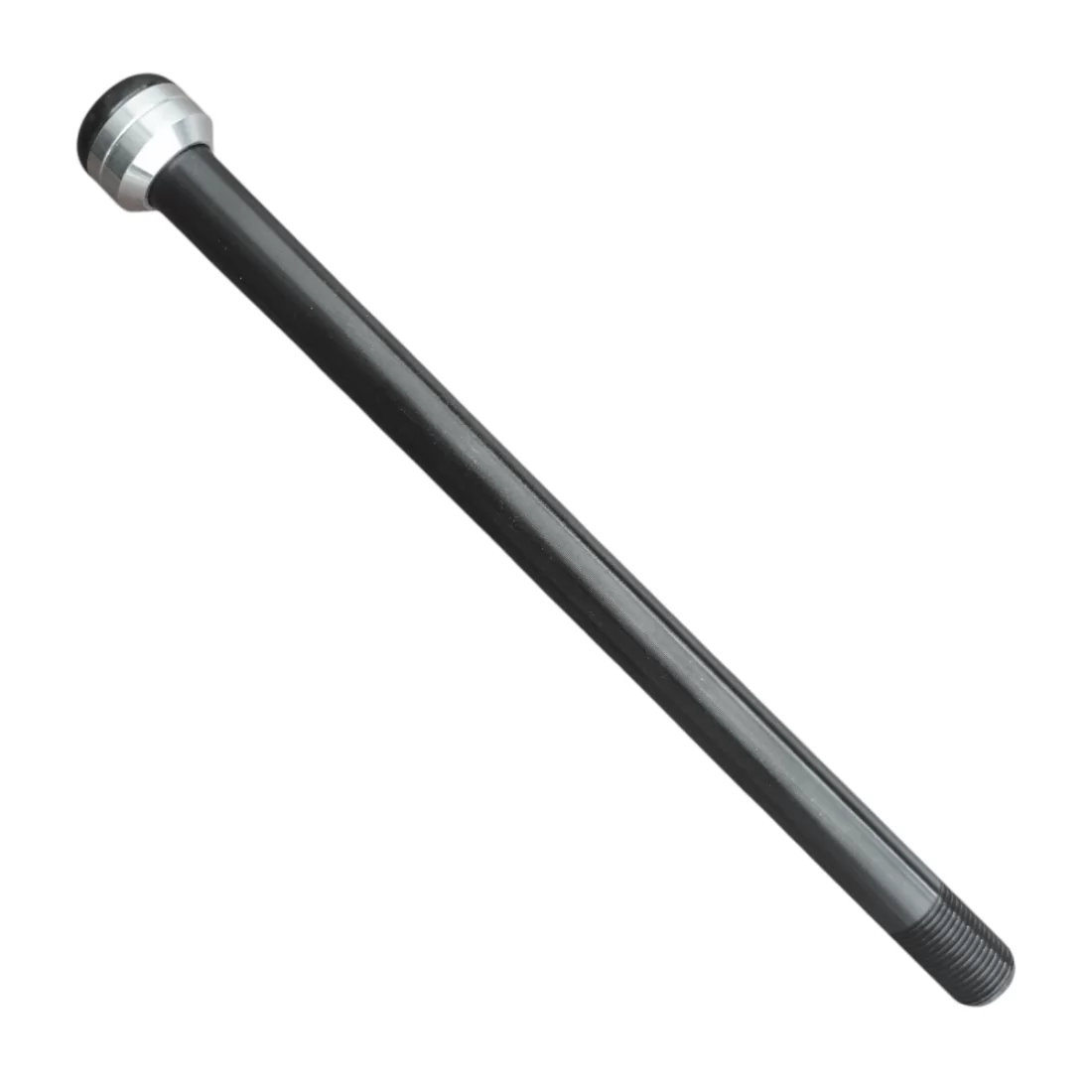

Rear Thru Axle 12 mm x 175/183 mm Length x M12 x 1.0 Thread Pitch

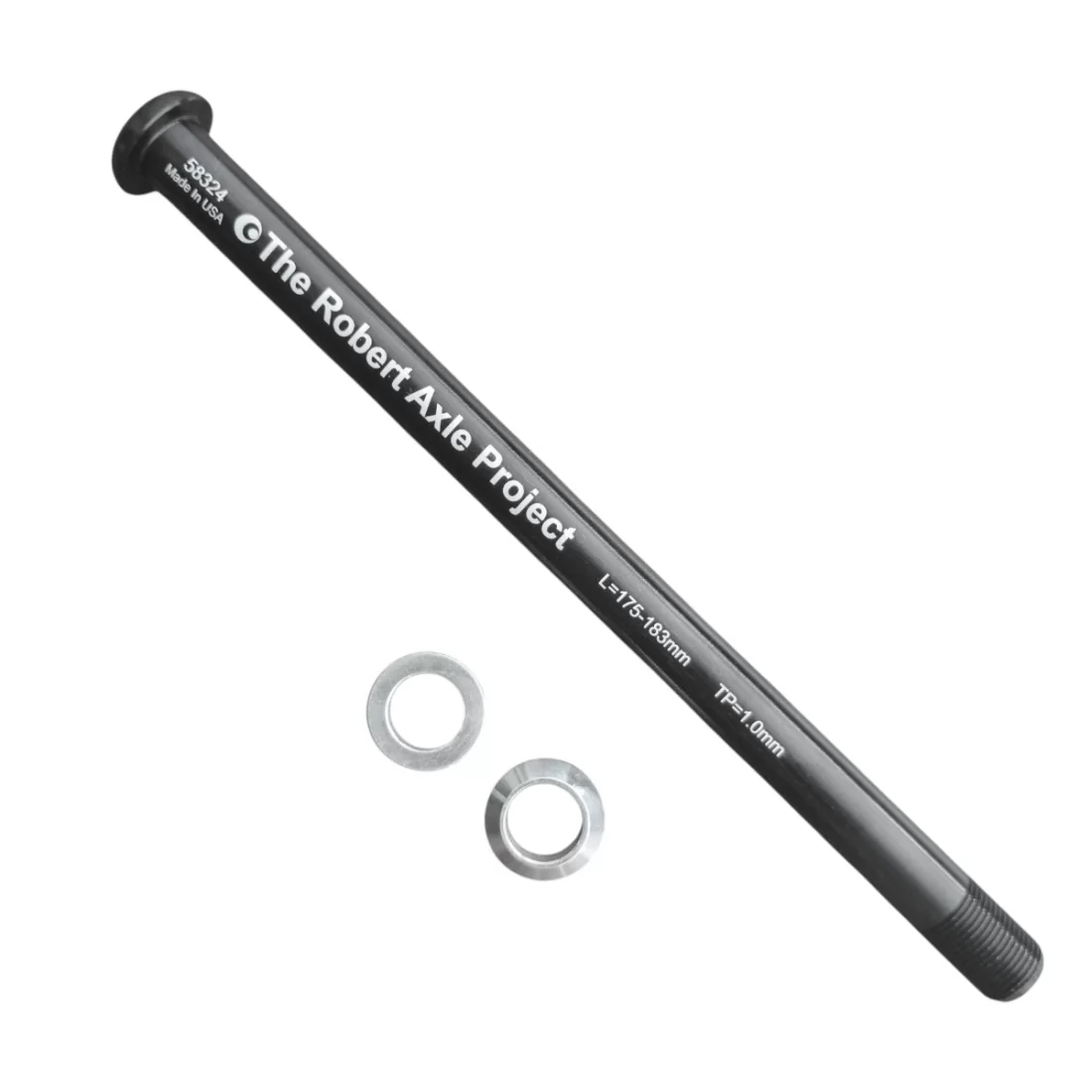

Lightning Bolt-on rear thru axle replacement  12 mm x 175 or 183 mm Length x M12 x 1.0 Thread Pitch with 8mm spacer for 175 mm axle length fitment.

Please note: Thru-axle lengths do not equal hub standards. An axle has to be longer than the hub to fit in the frame.

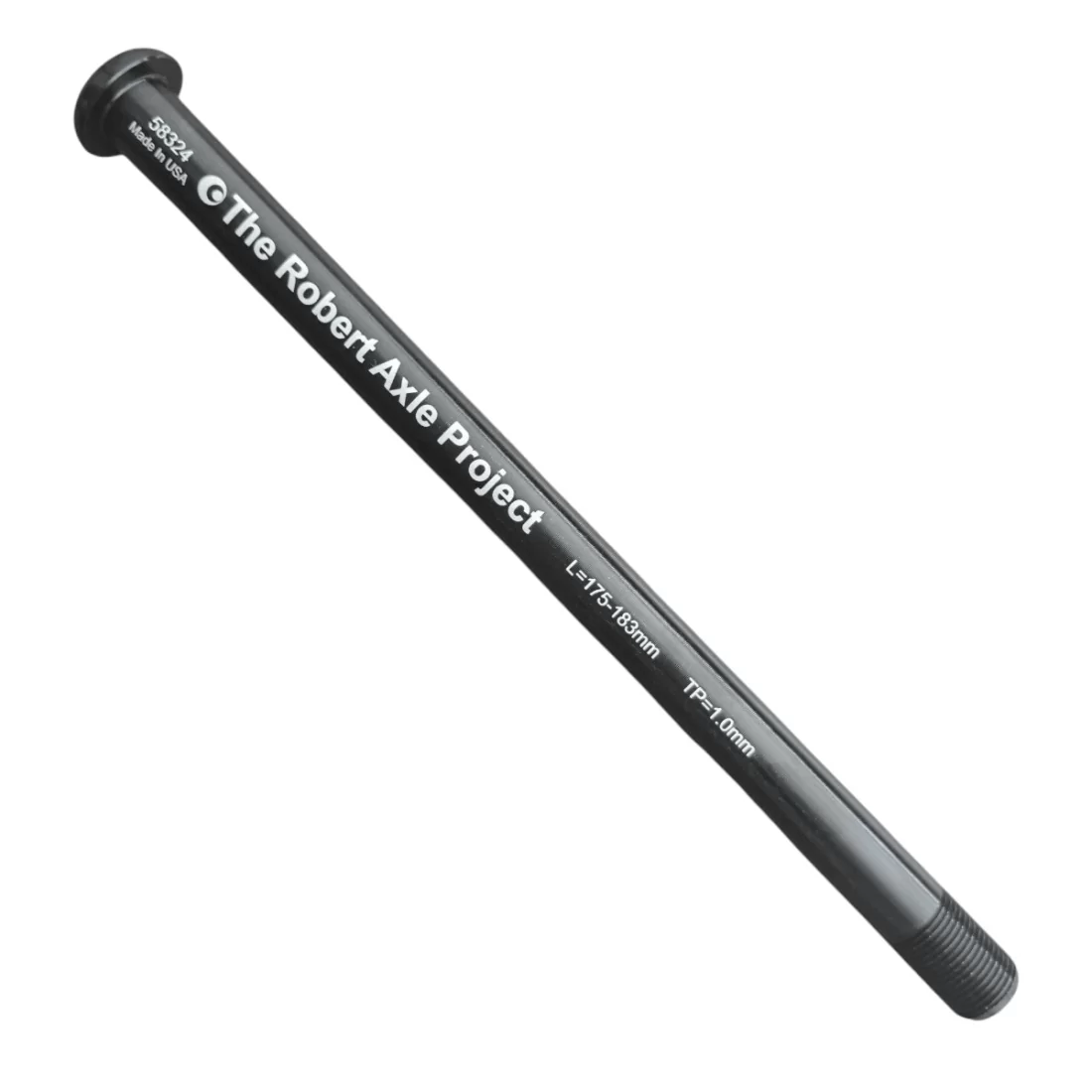

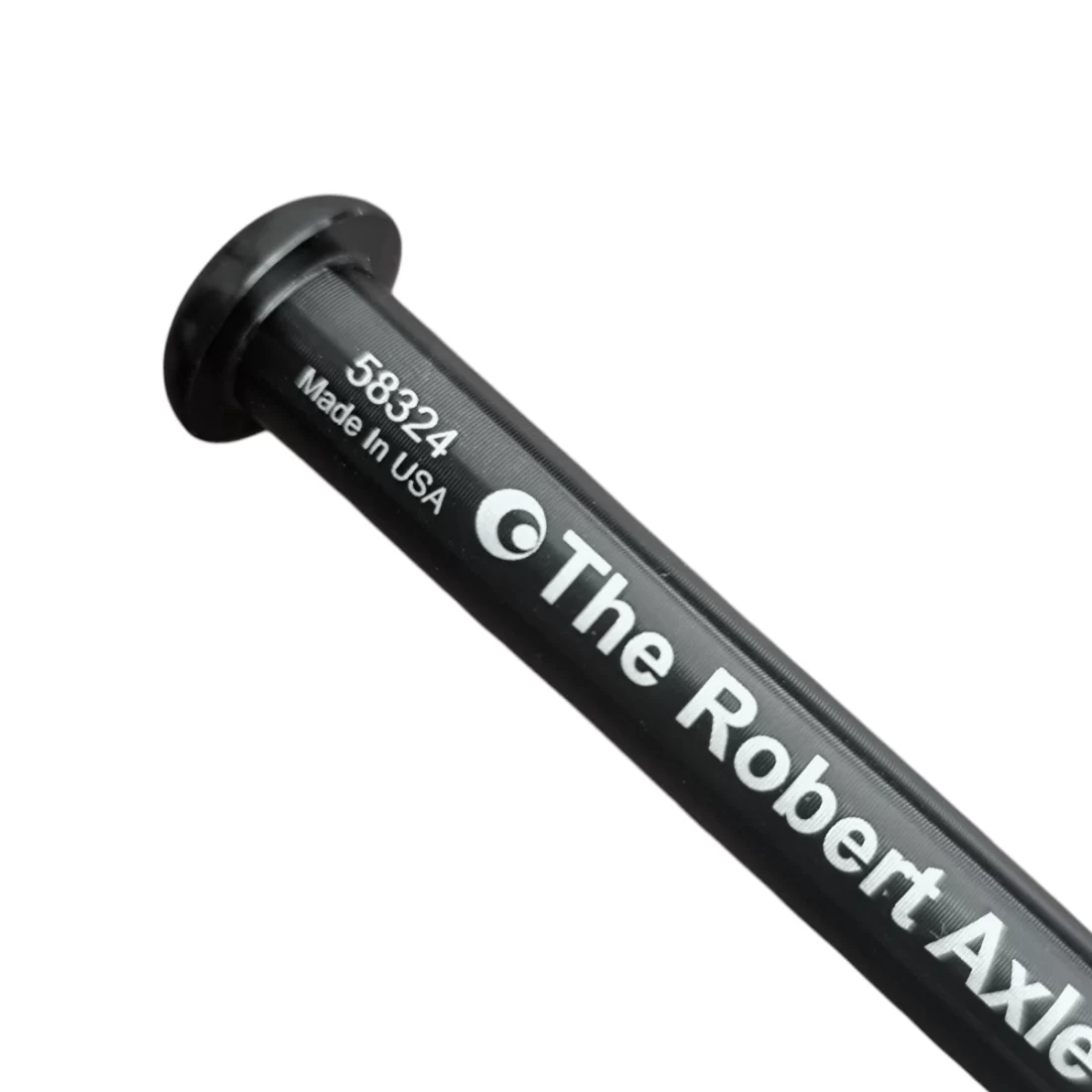

The Robert Axle Project axle is precision CNC machined in the USA from 7075 aluminum and hard anodized for rugged durability.

Lightning is Better. Front and rear Lightning Bolt-On axles offer a stronger, more durable, lower profile and lighter weight option to replace your stock thru-axles.

Light Weight. Axles are internally bored to remove unnecessary material without compromising strength.

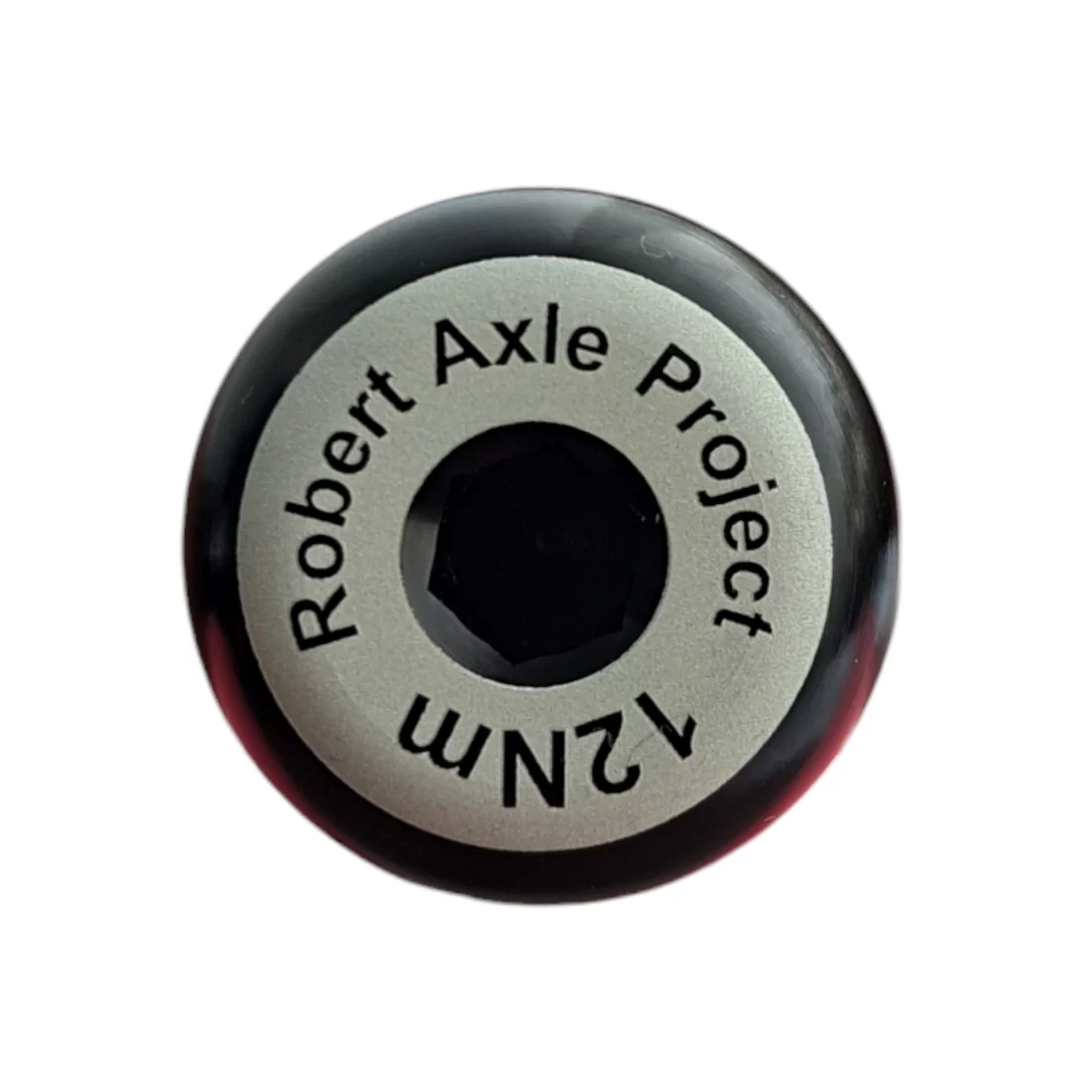

Easy to install. Matching front and rear Lightning Bolt-On Axles only require a standard 6 mm hex wrench for easy installation and removal.

Spec:

• Rear Thru Axle
• Axle length is compatible +/- 2 mm
• Diameter: 12 mm
• Flat Washer
• Axle Length: 175mm or 183 mm

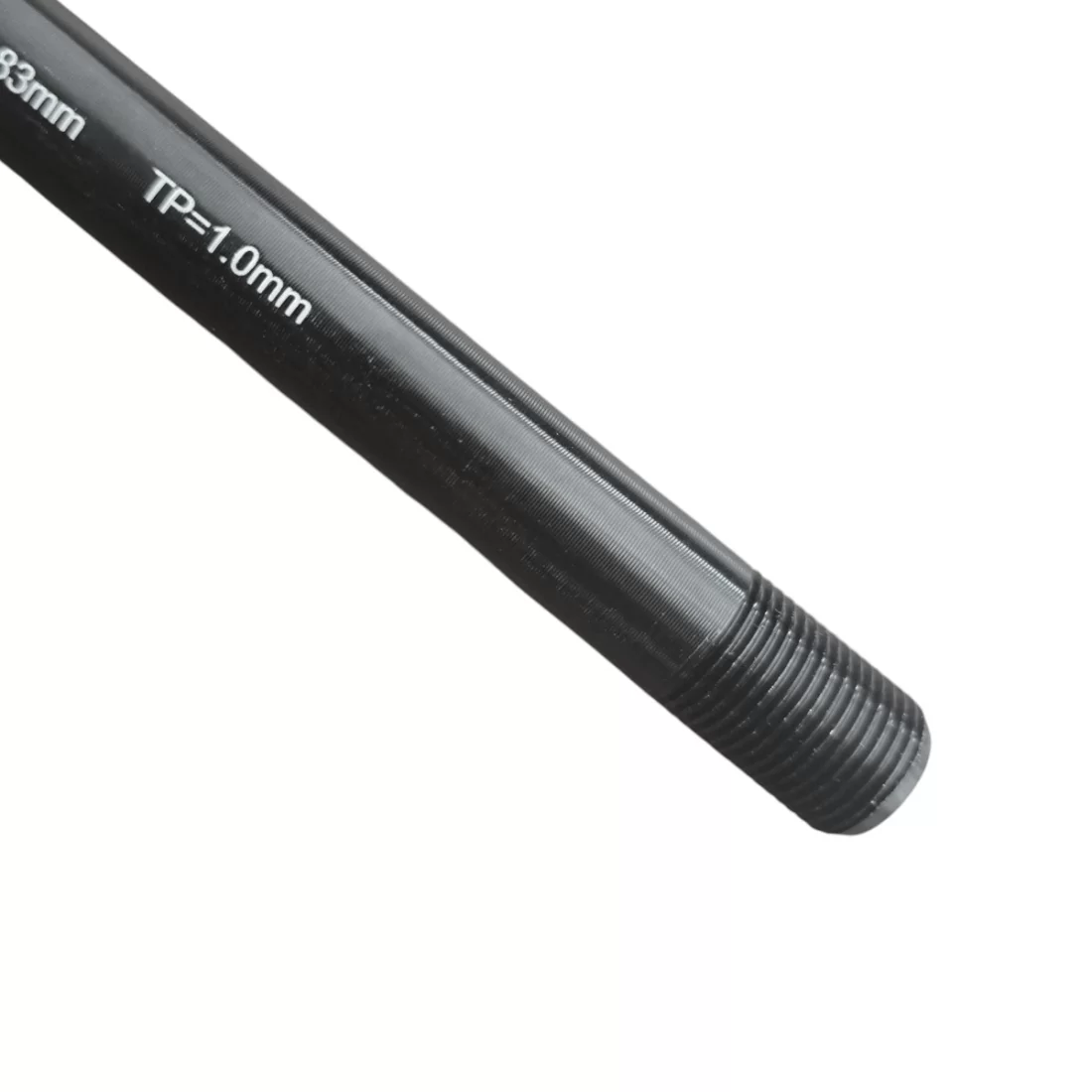

• Thread Pitch: 1.0
• Thread Length: 17mm
• Instalation instructions in package
