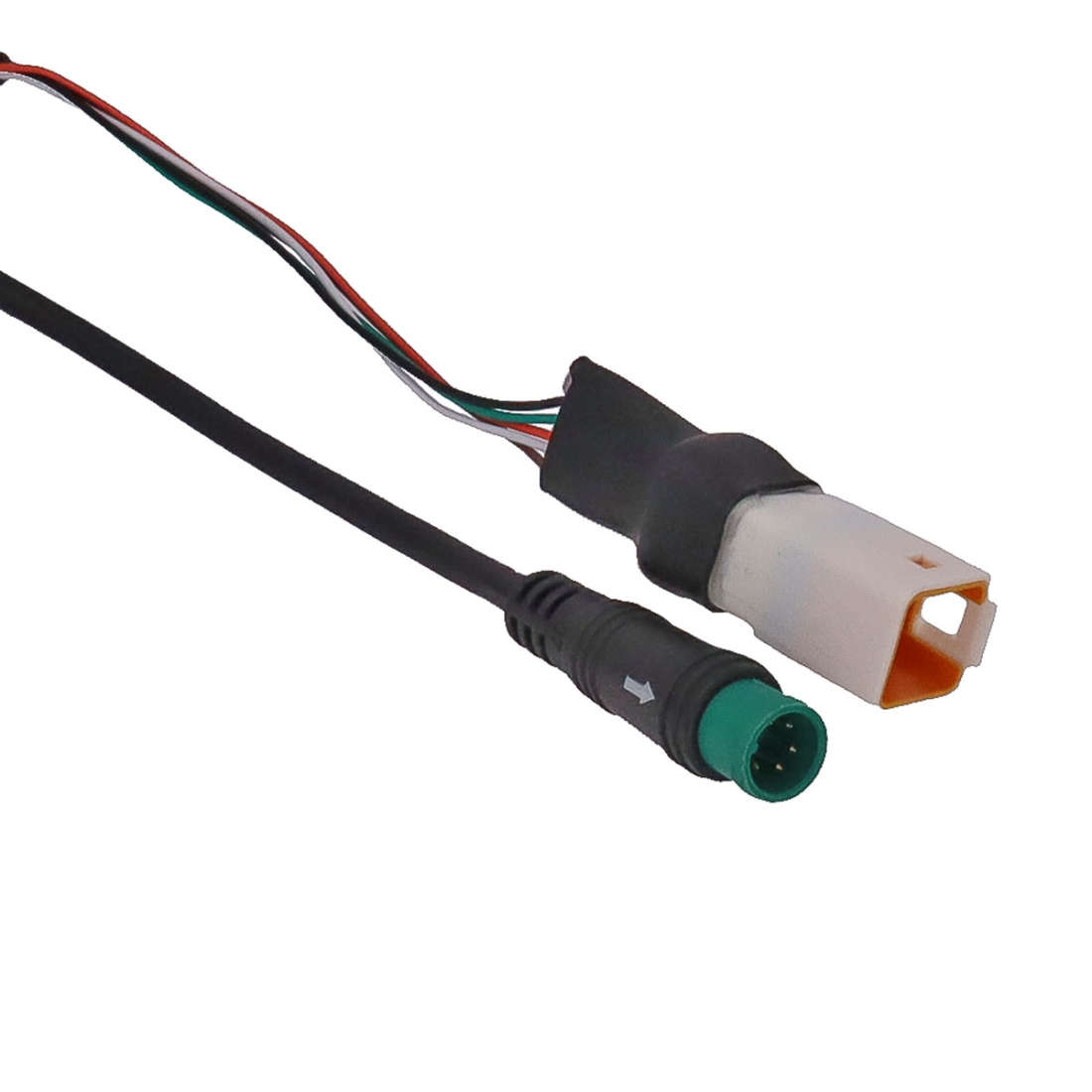

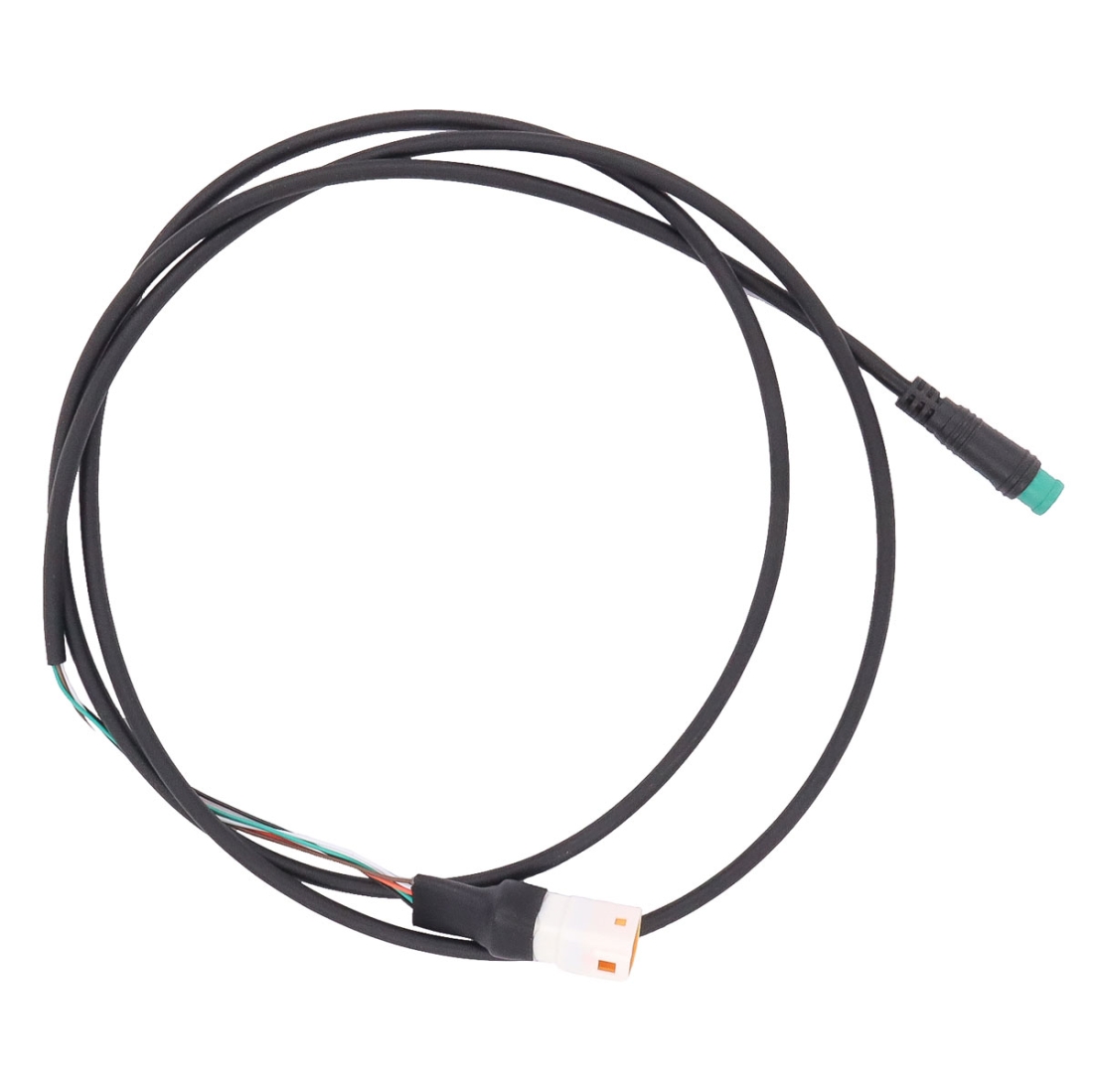

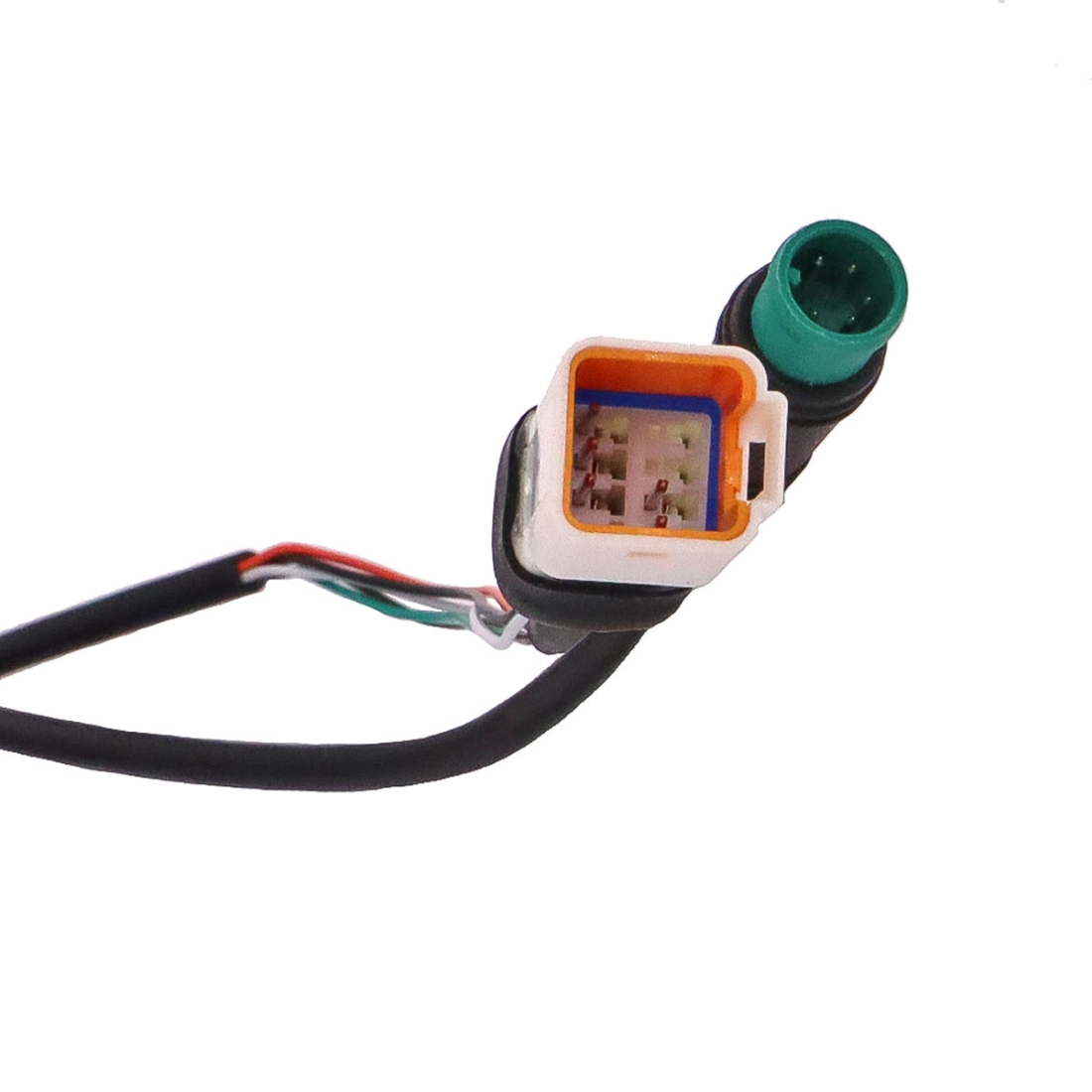

Bafang EB 1T1E UART Display Cable for E-Bike HMI

Replacement Bafang EB 1T1E UART display cable for compatible Bafang e-bike drive systems. This cable is designed to connect the Bafang display / HMI with a compatible UART e-bike system.

Important: Bafang uses different wiring harnesses, communication protocols, connector types and cable lengths across its e-bike systems. Please compare the complete cable identification, connector shape, number of pins and cable length with your original cable before ordering.

Bafang EB 1T1E UART Display Cable Specifications

• Manufacturer: Bafang
• Model / identification: EB 1T1E
• Product type: Display cable / HMI connection cable
• Communication system: UART
• Application: Bafang e-bike drive systems
• Cable type: EB-BUS display connection cable
• Cable length: 1000 mm (1 m)

Bafang EB-BUS Display Cable Compatibility

The Bafang EB 1T1E UART display cable is intended for compatible Bafang systems using the UART communication protocol.

Bafang produces several EB-BUS wiring and connector configurations. Cables that look similar may use different connectors, pin configurations, cable lengths or communication protocols and should not automatically be considered interchangeable.

Please identify the cable by its complete model designation and connectors whenever possible.

UART vs CAN Bafang Display Cables

Bafang e-bike systems can use different communication protocols, including UART and CAN bus. A cable intended for one communication system may not be suitable for another.

• UART: used on compatible Bafang UART motors, controllers and displays.
• CAN bus: used on newer or different Bafang system generations and may use different connectors and wiring.

This product is intended for a Bafang UART system. Please do not order it as a replacement for a CAN bus cable unless compatibility has been specifically confirmed.

How to Check Compatibility Before Ordering

Before ordering a replacement Bafang display cable, please compare it carefully with the cable currently installed on your e-bike.

Please check:

• The cable identification corresponds to EB 1T1E.
• Your Bafang system uses the UART communication protocol.
• The display connector shape matches your original cable.
• The number of connector pins matches.
• The connector gender matches the original cable.
• The connector at the motor / wiring-harness side matches.
• The cable length is suitable for your bicycle.
• The motor, controller and display belong to a compatible Bafang system generation.

We recommend checking the complete cable marking and connectors rather than relying only on the appearance of the cable.

Bafang EB 1T1 Cable Identification

Bafang uses the EB 1T1 designation for several cable types and variations. Additional letters and numbers in the complete Bafang cable code can identify the connector configuration and cable length.

For this product, the relevant identification is:

BAFANG EB 1T1E UART

If the marking on your original cable is different, please compare the connectors carefully or contact us before ordering.

Not Sure if This Bafang Display Cable Fits?

If you are unsure whether this cable is compatible with your e-bike, please contact us before ordering.

For compatibility checking, please send us clear photos of:

• the complete original cable;
• both cable connectors;
• the connector pins;
• any identification numbers printed on the cable;
• the Bafang display model;
• the Bafang motor identification label.

This information helps us determine whether the cable is suitable for your Bafang UART system and reduces the risk of ordering an incompatible cable.

You can also send photos and information by email to info@elanusparts.com.
