In stock

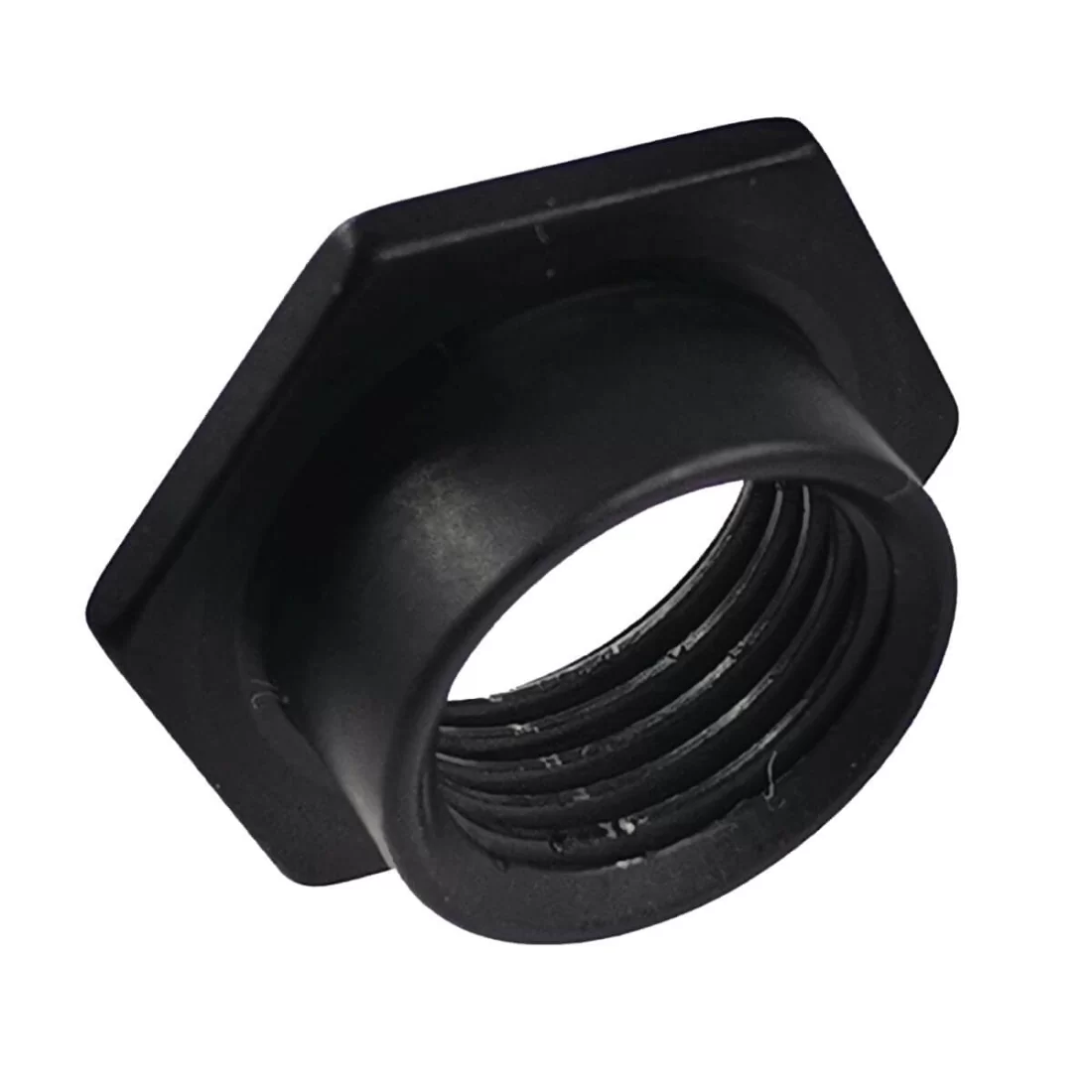

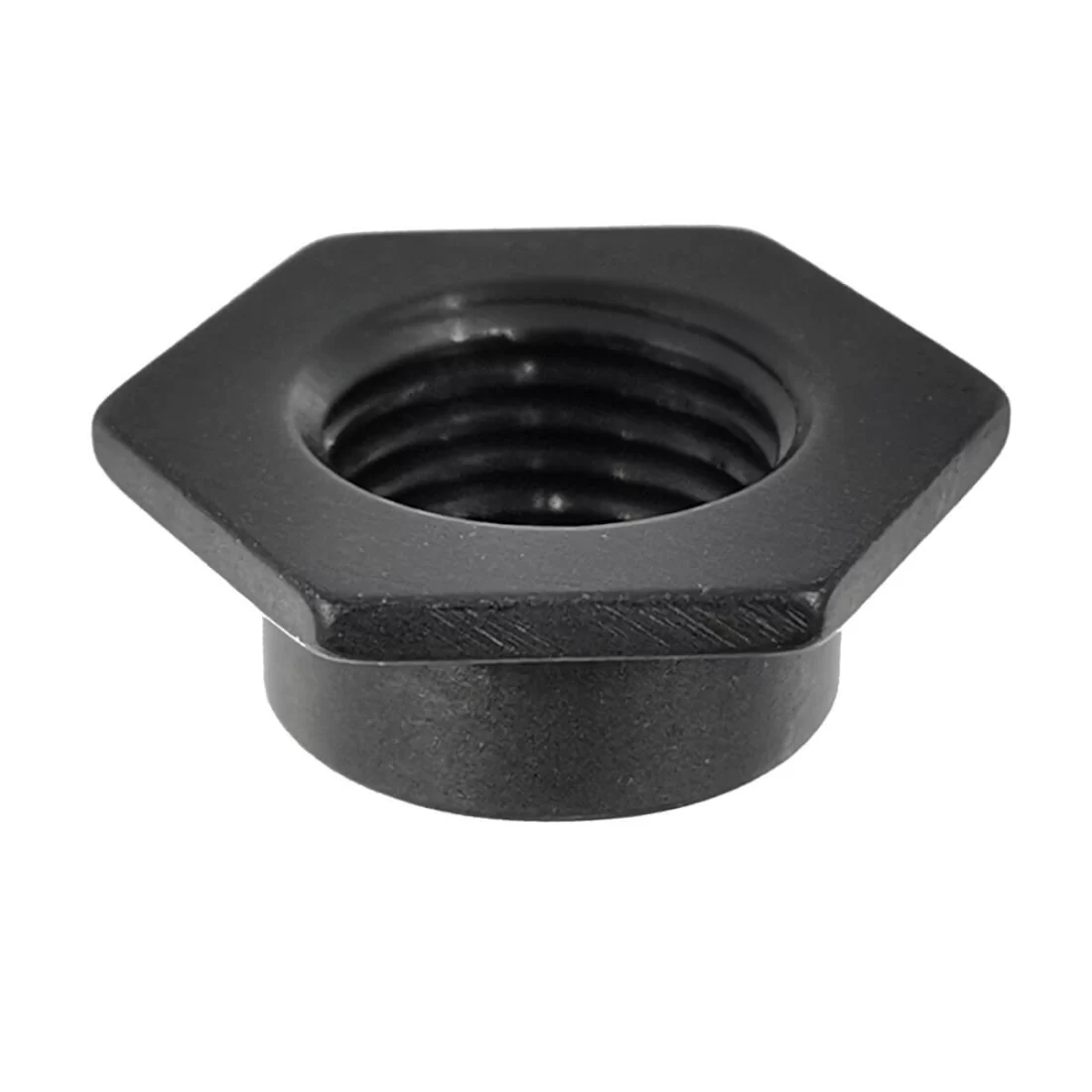

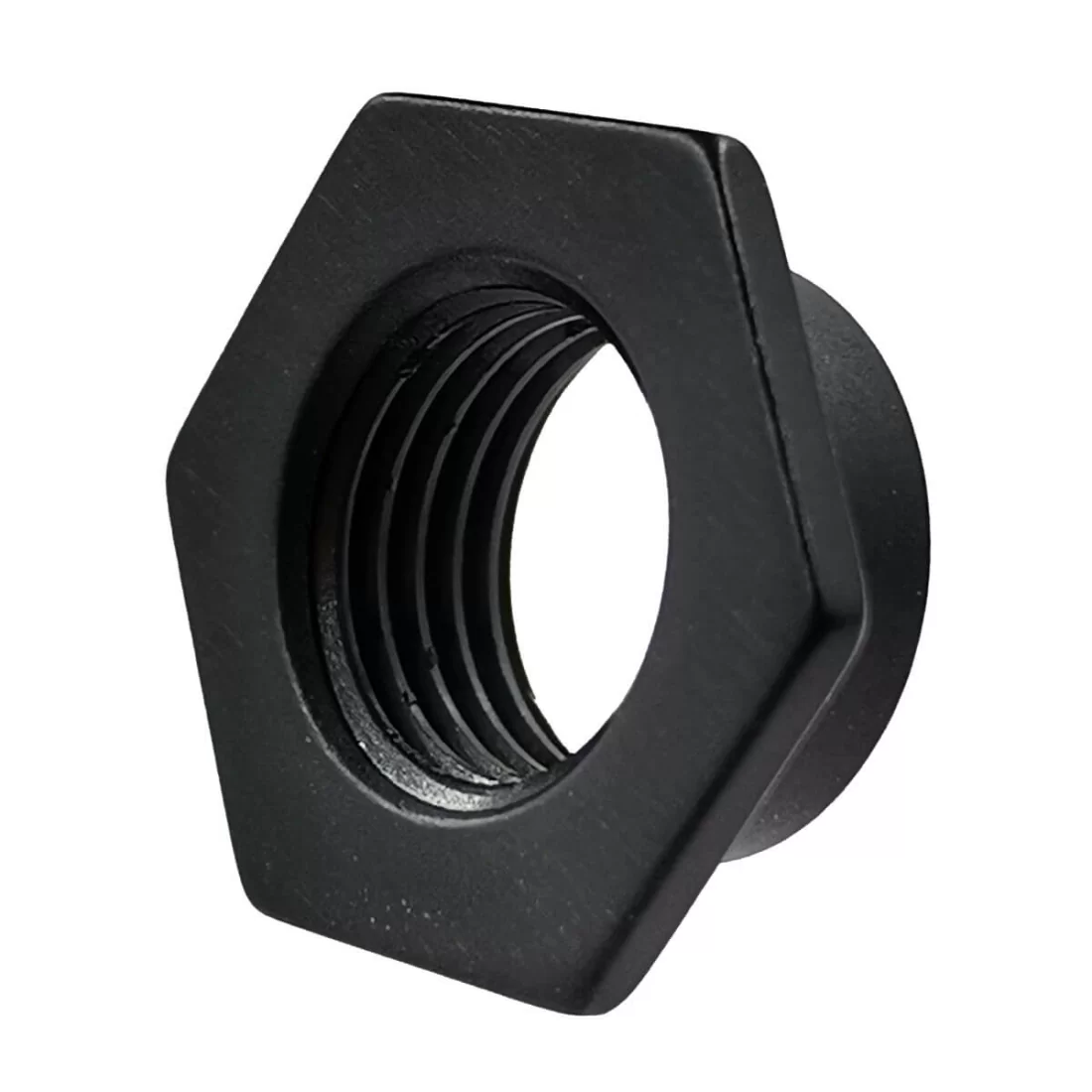

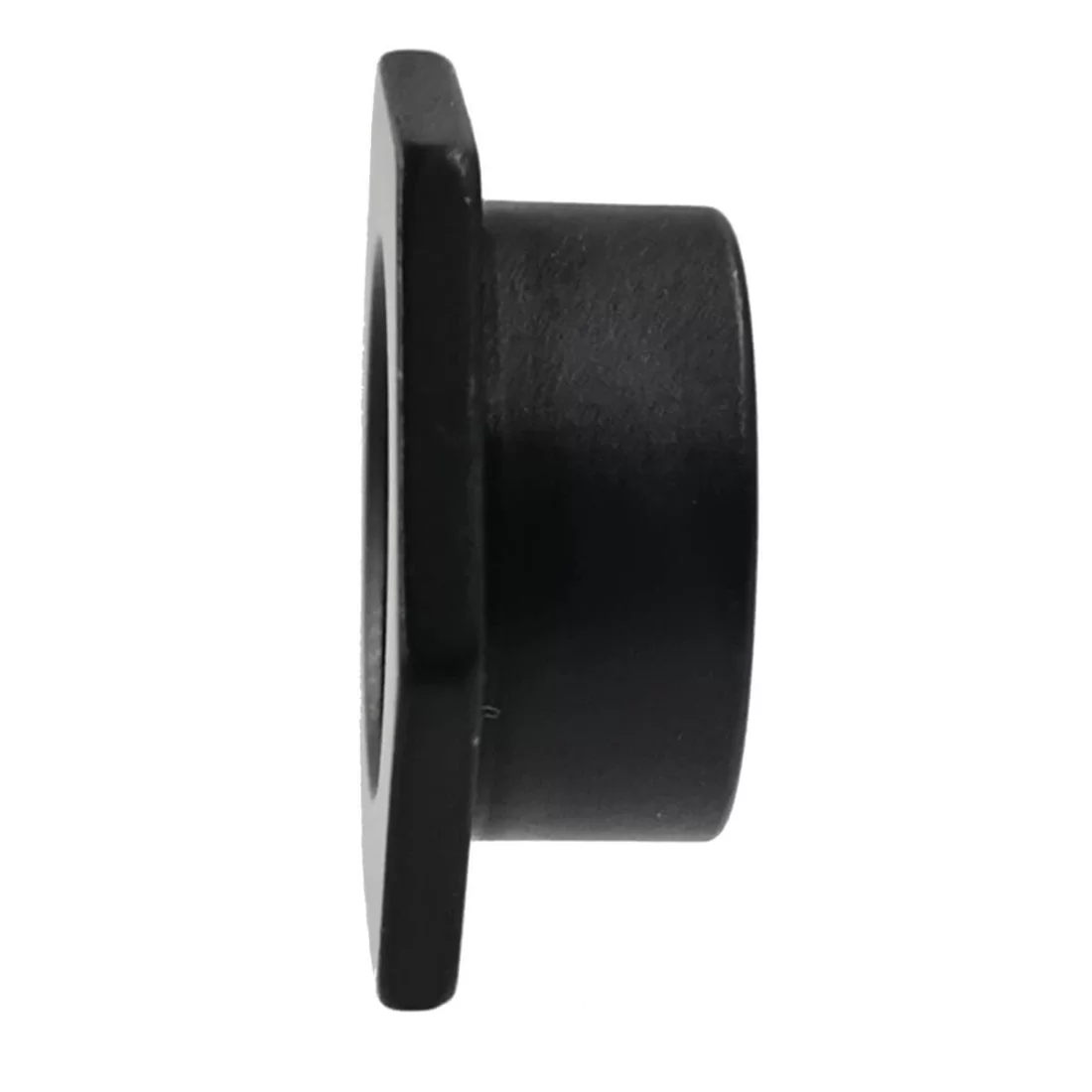

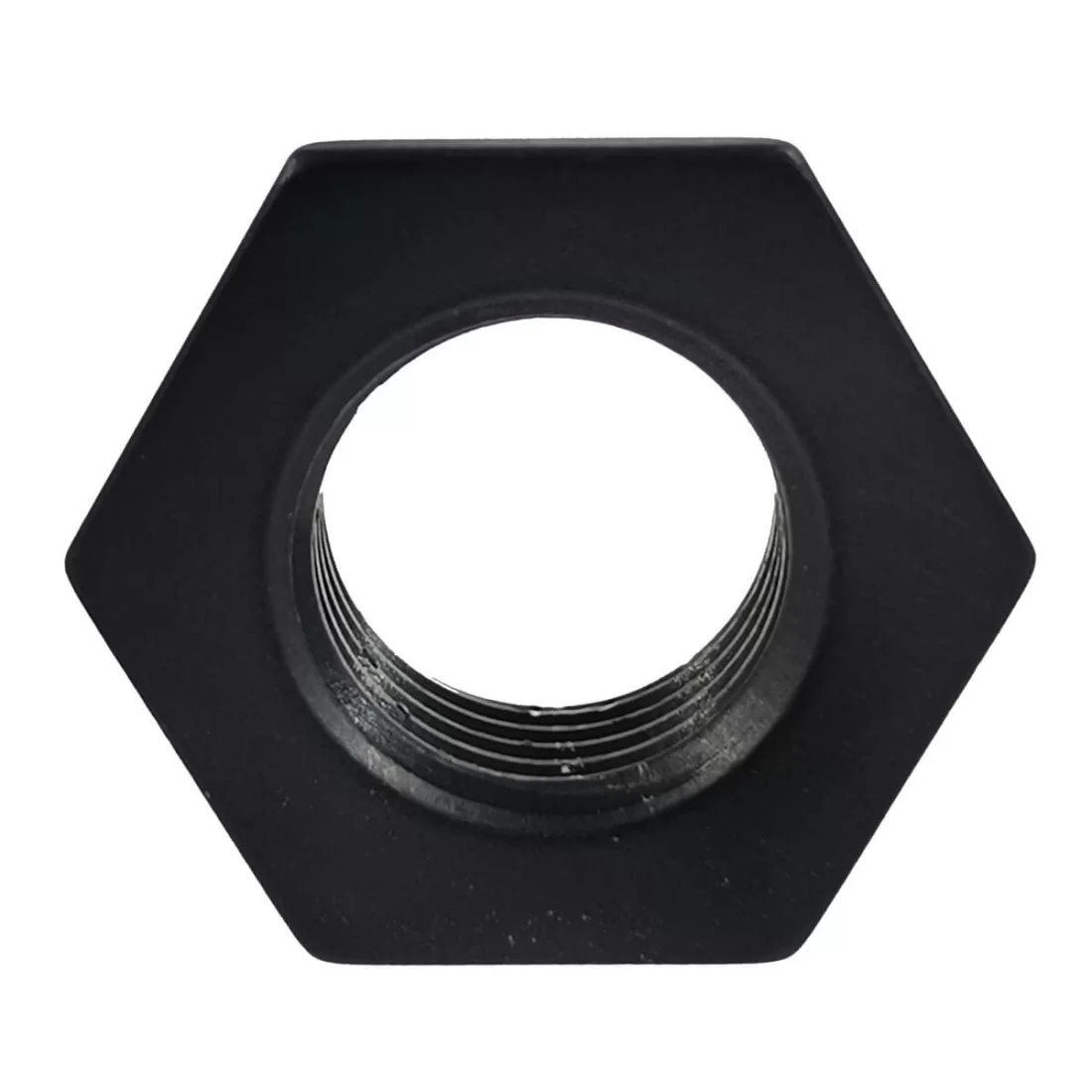

S6 Frame saver Female Threaded 5mm M10 x 1 tap for Derailleur.
This solution helps with ruined tread for cases of unreachable derailleur hanger or hangerless frame.
measurements:
Outer Diameter: 12 mm
Length: 5mm
Hexagon: 16mm
The thread is M10x1, a standard derailleur tap.
There are 2 possible lengths when it comes to this part for 8mm standard frame-7mm, for 6mm frame-5mm.
You will need a M12mm drill (0.472") to drill out the hanger and then insert the frame saver from the rear of the frame and then screw your derailleur directly into this part.
Made by Pilo.
For any questions please e-mail us:
To be sure if this the right part, please send us photos of:
1. Your derailleur hanger from both sides;
2. And if possible bike‘s frame part photos, where dropout was attached.
- Material
- CNC aluminum
7290107118200
So find spare part for your bicycle at Elanus Parts, official distributor of PILO Precision Machining Ltd.
Full range of rear derailleur hanger types for MTB, Mountain, CX, Road and other bikes you can find here.
Find more information about derailleur hangers at frequently asked questions page or if still have questions and need assistance feel free to contact us.
