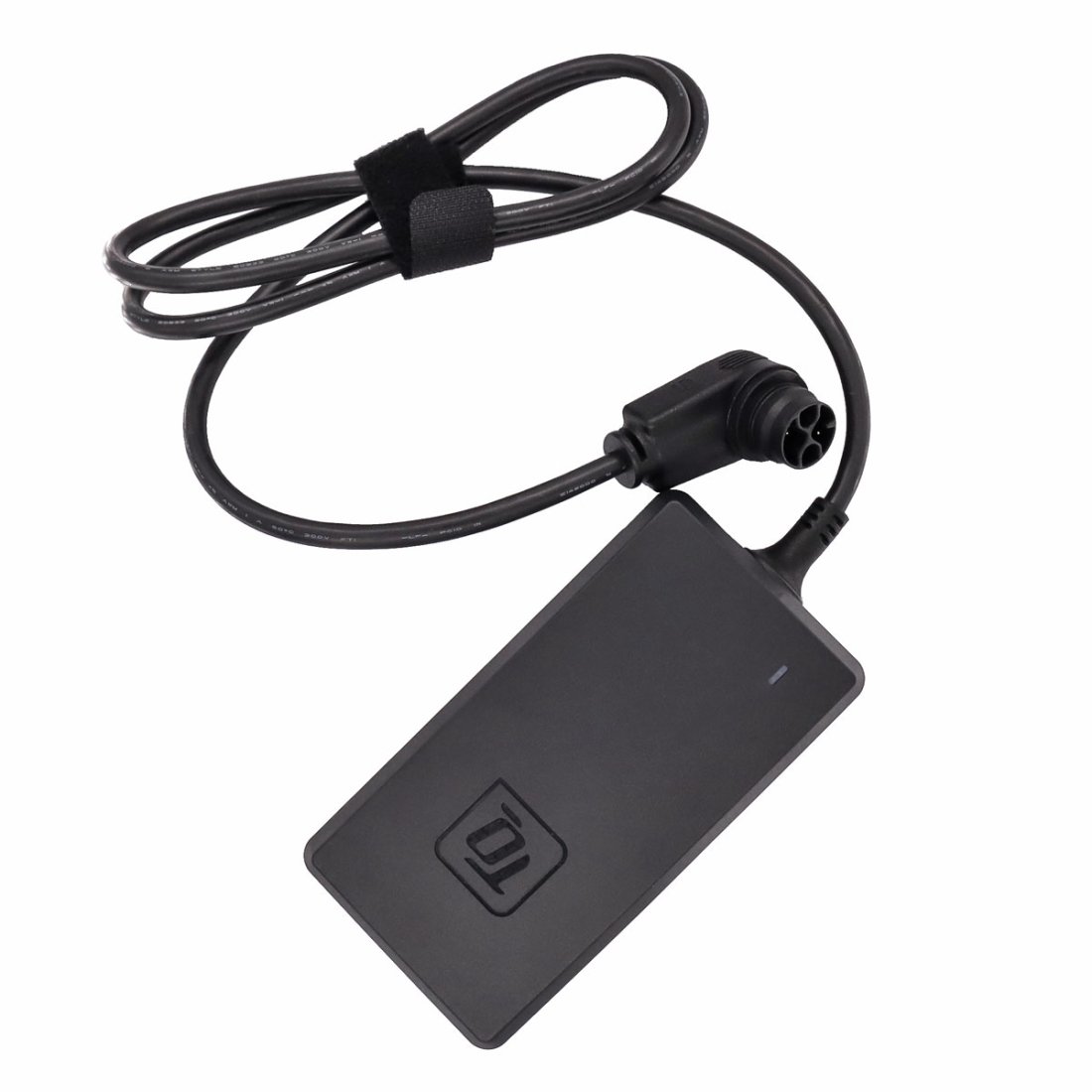

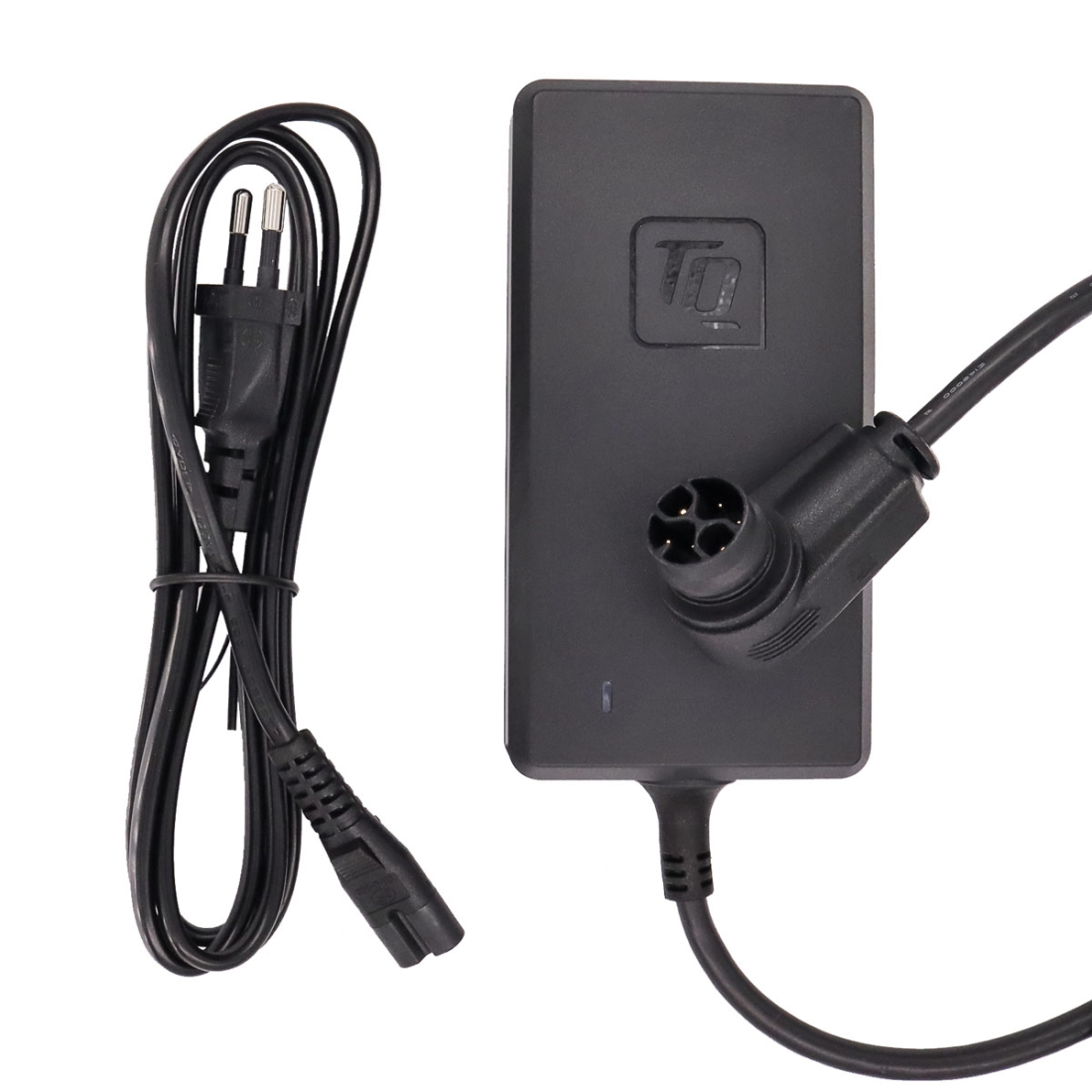

TQ 2A 58.8V (50.4V) Battery Charger for E-bike HPR drive systems or Range Extender

TQ 2A Battery Charger for E-bike:

TQ charger FSP118-BC48V2A is intended exclusively for charging the battery and the optional Range Extender of the HPR drive systems.

• Light and compact travel style
• Use for TQ HPR Batteries
• Model: FSP118-BC48V2A
• Input: 100-240V~ 1.4A 50-60Hz
• Output: 58.8V 2.0A 118.0W

Battery 2A Charging Time:

290 Wh - 191 min (≈ 3 h 10 min)

360 Wh - 224 min (≈ 3 h 45 min)

580 Wh - 333 min (≈ 5 h 30 min)

Range Extender 160 Wh - 100 min (≈ 1 h 40 min)

Note: Full charging from 0 to 100%. Charging times may vary slightly depending on temperature, battery condition, and charging profile. Charging to 80% is significantly faster.

Manufacturer Art.No: 374296.0100

EAN: 4260738170512
