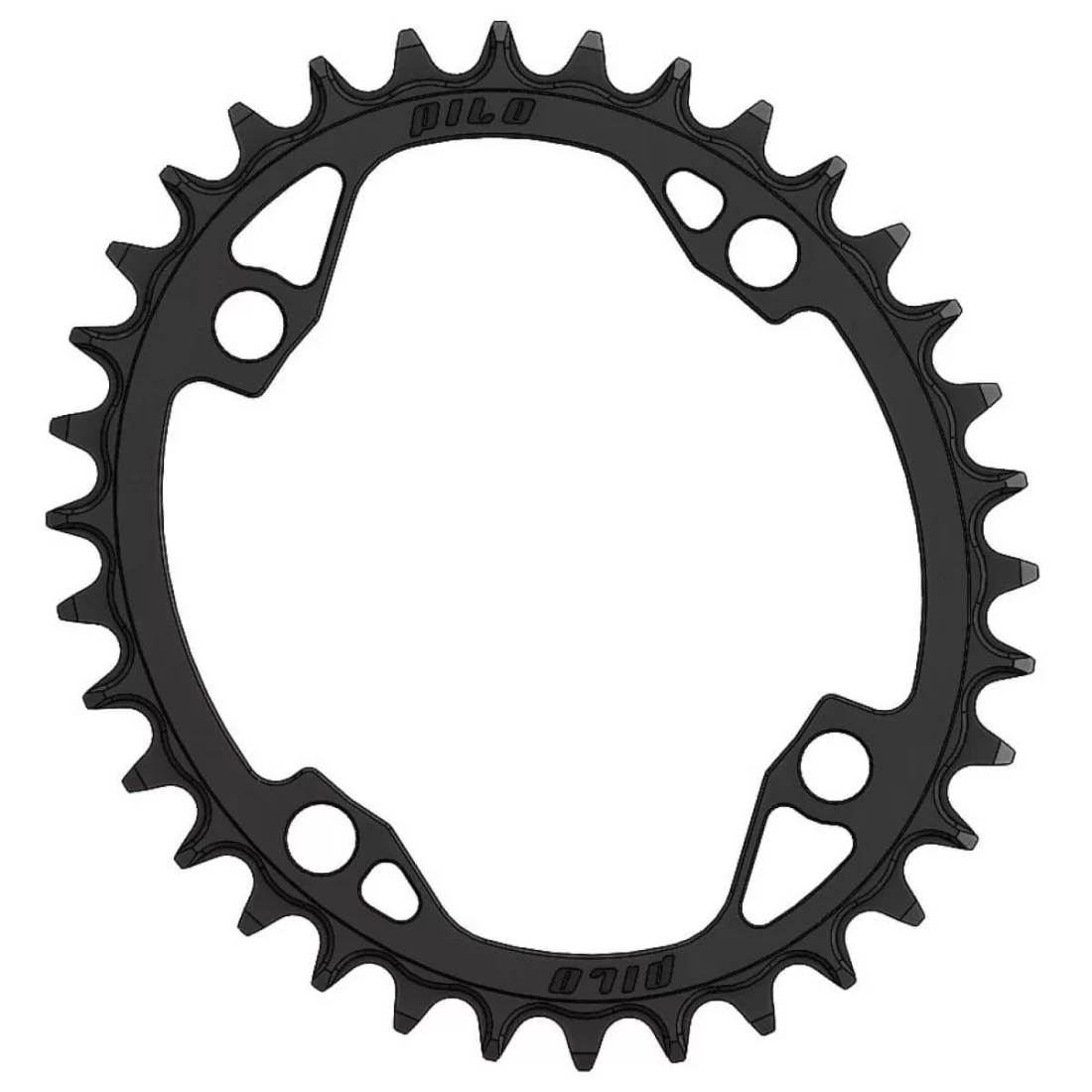

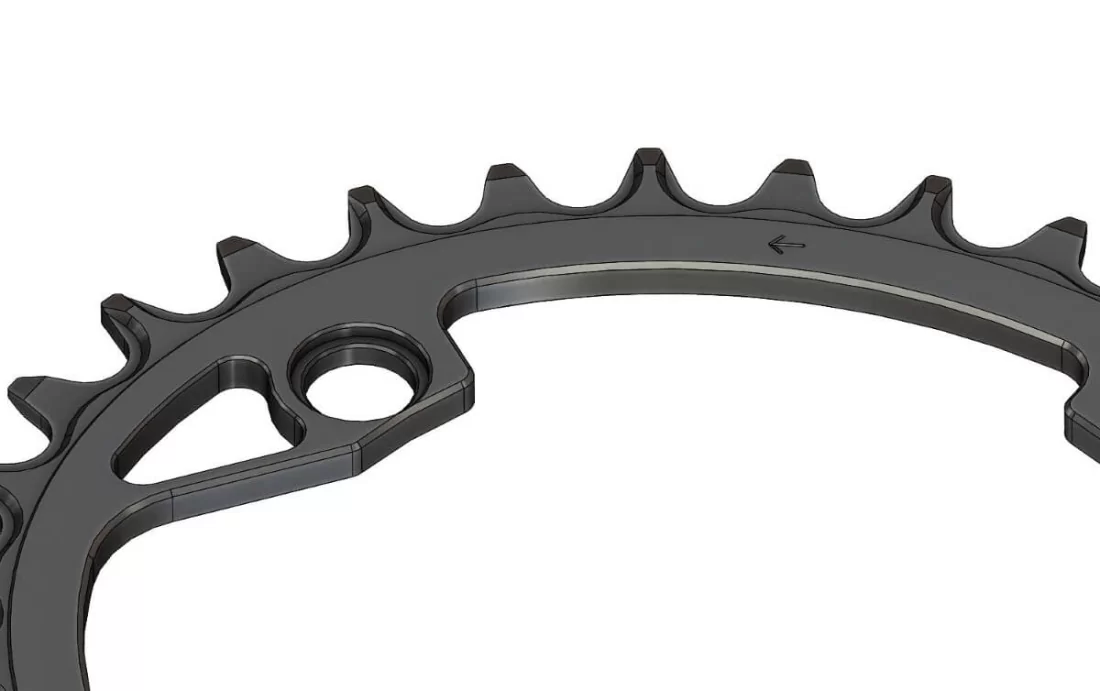

CNC Chainring milled from 7075 T7351 Constellium Switzerland billet aircraft grade aluminum by PILO.
Chainring geometry is highly engineered from DIN8196 (ISO), tested and proved to be the best. Durable and quite operation every day!
- Narrow wide chainring
- Pilo 36T elliptic profile tec specification:
- Lower gear identical to circular 34T chainring.
- upper gear identical to circular 38T chainring.
- Eccentricity: 11.7%.
- Positioning relative to the crank's arm: 112 degrees counterclockwise.
- Outer diameter: 162mm.
- Chain compatibility: x10, x11, x12 speed chains.
- Crank compatibility: Various manufacturers 104BCD.
- E-bike compatible.
- Offset: 0 mm
- Weight: 55 gr.
- Finish: Hard Black Anodized
