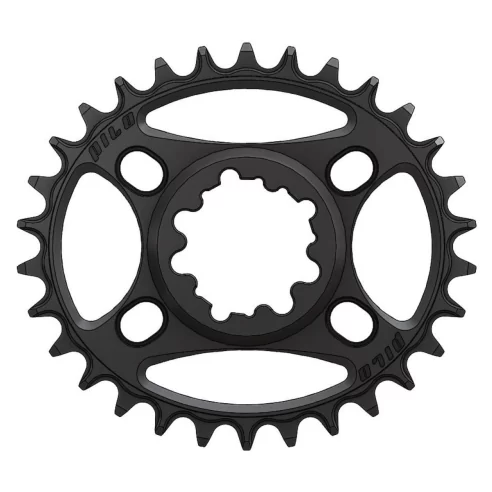

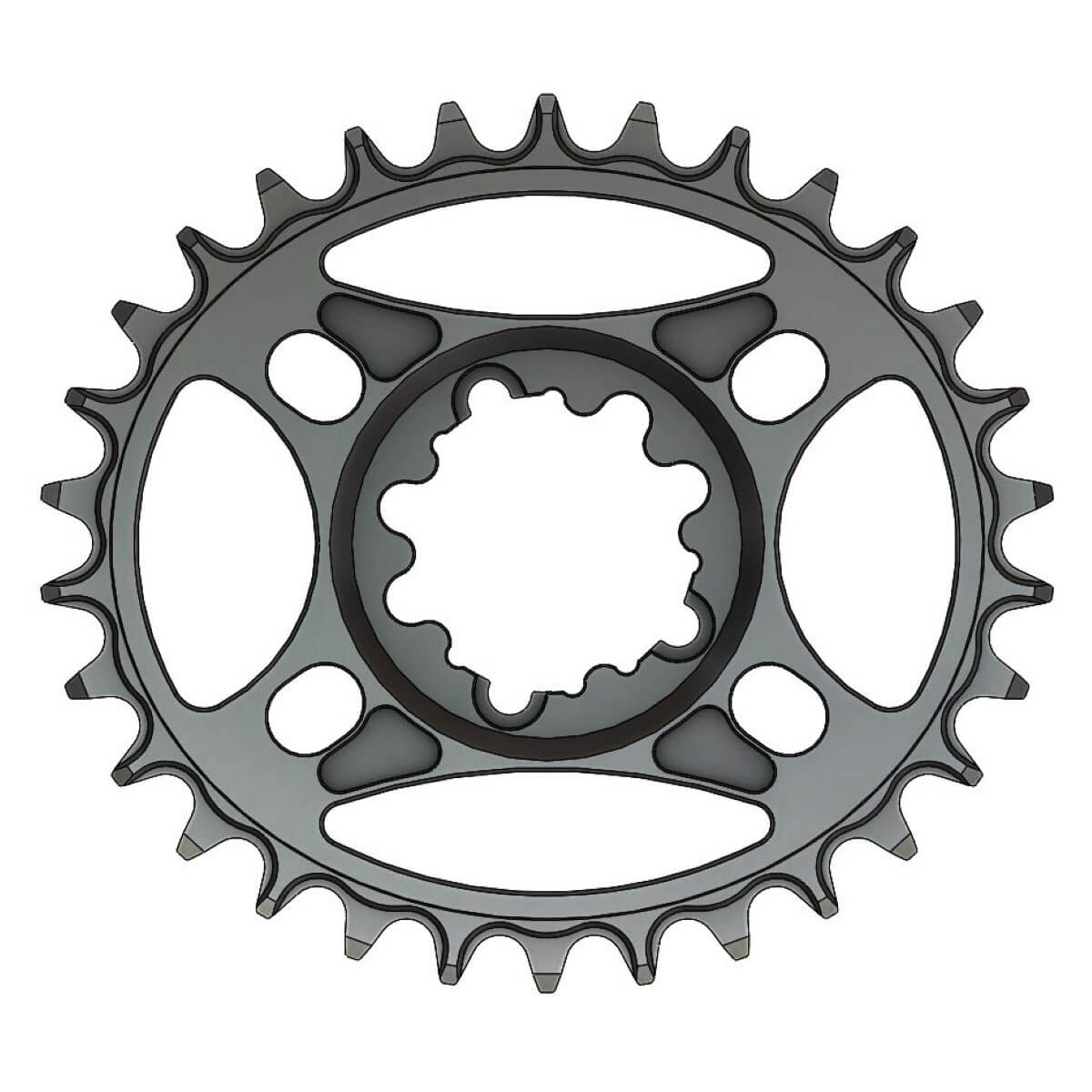

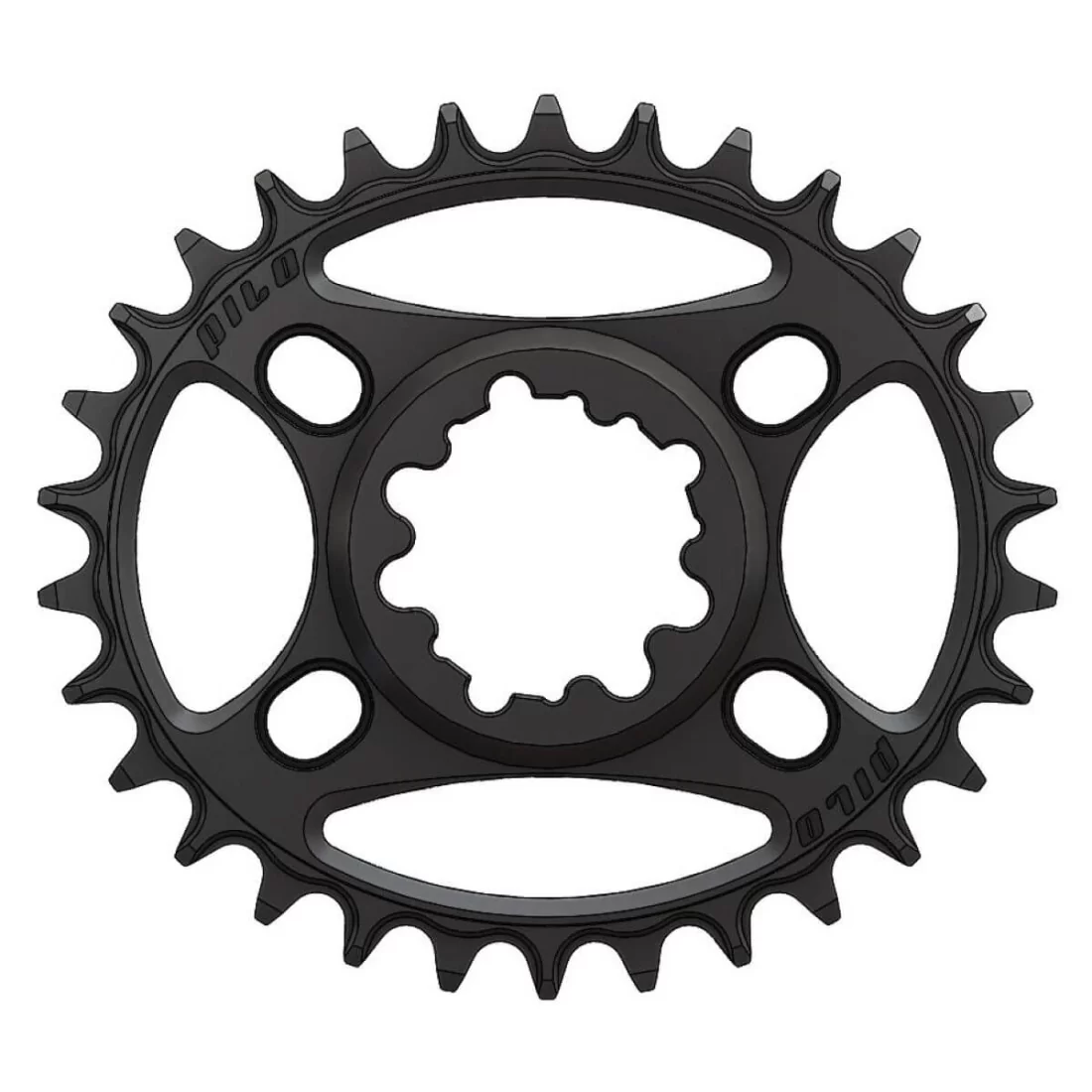

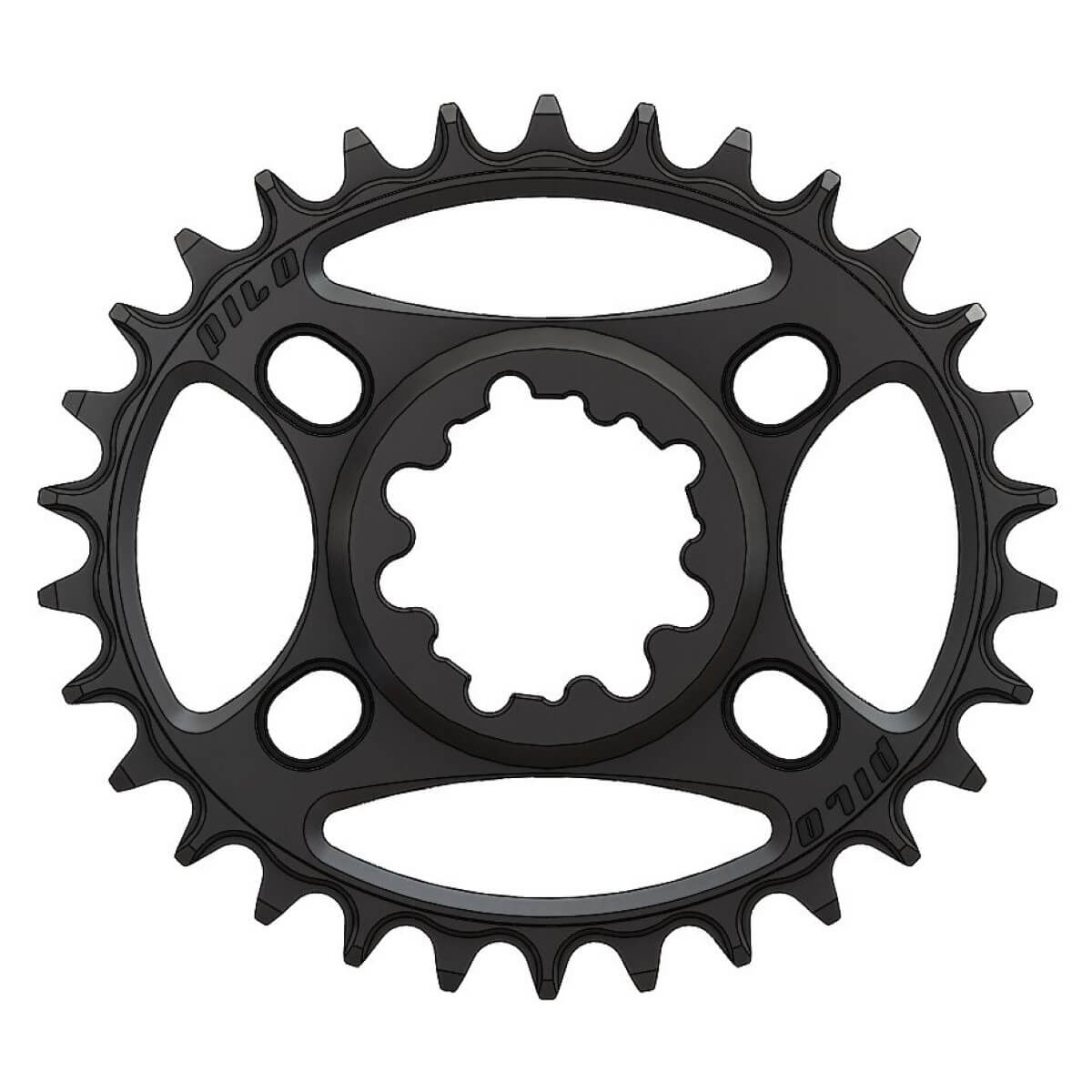

CNC Chainring milled from 7075 T7351 Constellium Switzerland billet aircraft grade aluminum by PILO.
Chainring geometry is highly engineered from DIN8196 (ISO), tested and proved to be the best. Durable and quite operation every day!
- Narrow wide chainring
- Pilo 30T elliptic profile tec specification:
- Lower gear identical to circular 28T chainring.
- upper gear identical to circular 32T chainring.
- Eccentricity: 14.2%.
- Positioning relative to the crank's arm: 112 degrees counterclockwise.
- Outer diameter: 137mm.
- Chain compatibility: Hyperglide+ x12.
- Crank compatibility: direct mount SRAM EAGLE.
- E-bike compatible.
- Offset: 3 mm
- Weight: 55 gr.
- Finish: Hard Black Anodized
